Door Latch Mechanism of Aston Martin Aston Martin DB7 (1995)

View All

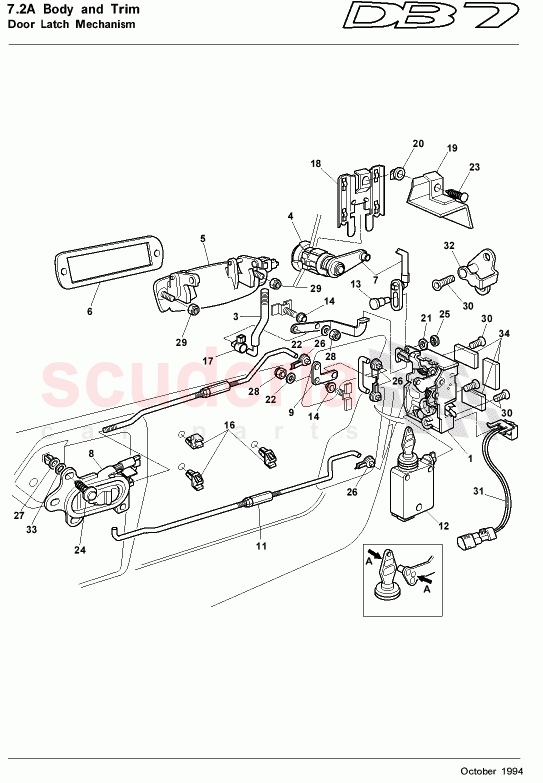

Aston Martin DB7 (1995) - Door Latch Mechanism

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6582263	LATCH ASSY DOOR RH	Enquire	To Order
	6582264	LATCH ASSY DOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582265	BELLCRANK O/S HANDLE RH	Enquire	To Order
	6582266	BELLCRANK O/S HANDLE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582269	Door Handle Outer RH	Enquire	To Order
	6582270	Door Handle Outer LH	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	6582272N	LOCK ASSY-DOOR RH	Enquire	To Order
	6582273N	LOCK ASSY-DOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582274	HANDLE ASSY INNER RH	Enquire	To Order
	6582275	HANDLE ASSY INNER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582280	LINK ASSY RH	Enquire	To Order
	6582281	LINK ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6584397	SHIELD ASY-DOOR LOCK RH	Enquire	To Order
	6584398	SHIELD ASY-DOOR LOCK LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781940	DOOR AJAR SWITCH RH	Enquire	To Order
	3781941	DOOR AJAR SWITCH LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6782295	LOCK-TRUNK LID COMPLETE ASSY	6782295 LOCK-TRUNK LID COMPLETE ASSY	-	1	Enquire
-	2582297	BARREL LOCK IGNITION	2582297 BARREL LOCK IGNITION	-	1	Enquire
-	6982296	LOCK ASSY GLOVEBOX	6982296 LOCK ASSY GLOVEBOX	-	1	Enquire
-	6582293	LOCKSET	6582293 LOCKSET	-	1	Enquire
-	4R12656217AAN	KEY ASSY-TO NUMBER	4R12656217AAN KEY ASSY-TO NUMBER	-	2	Enquire
1	6582263	LATCH ASSY DOOR RH	6582263 LATCH ASSY DOOR RH	-	1	Enquire
1	6582264	LATCH ASSY DOOR LH	6582264 LATCH ASSY DOOR LH	-	1	Enquire
2	6582265	BELLCRANK O/S HANDLE RH	6582265 BELLCRANK O/S HANDLE RH	-	1	Enquire
2	6582266	BELLCRANK O/S HANDLE LH	6582266 BELLCRANK O/S HANDLE LH	-	1	Enquire
5	6582269	Door Handle Outer RH	6582269 Door Handle Outer RH	-	1	Enquire
5	6582270	Door Handle Outer LH ARRIVING SOON	6582270 Door Handle Outer LH ARRIVING SOON	-	1	Enquire
7	6582272N	LOCK ASSY-DOOR RH	6582272N LOCK ASSY-DOOR RH	-	1	Enquire
7	6582273N	LOCK ASSY-DOOR LH	6582273N LOCK ASSY-DOOR LH	-	1	Enquire
8	6582274	HANDLE ASSY INNER RH	6582274 HANDLE ASSY INNER RH	-	1	Enquire
8	6582275	HANDLE ASSY INNER LH	6582275 HANDLE ASSY INNER LH	-	1	Enquire
10	6582278	LINK ASSY RH	6582278 LINK ASSY RH	-	1	Enquire
10	6582279	LINK ASSY LH	6582279 LINK ASSY LH	-	1	Enquire
11	6582280	LINK ASSY RH	6582280 LINK ASSY RH	-	1	Enquire
11	6582281	LINK ASSY LH	6582281 LINK ASSY LH	-	1	Enquire
19	6584397	SHIELD ASY-DOOR LOCK RH	6584397 SHIELD ASY-DOOR LOCK RH	-	1	Enquire
19	6584398	SHIELD ASY-DOOR LOCK LH	6584398 SHIELD ASY-DOOR LOCK LH	-	1	Enquire
31	3781940	DOOR AJAR SWITCH RH	3781940 DOOR AJAR SWITCH RH	-	1	Enquire
31	3781941	DOOR AJAR SWITCH LH	3781941 DOOR AJAR SWITCH LH	-	1	Enquire
