Name: Front Seats and Belts
Rating: 4.5 (1 reviews)

Front Seats and Belts of Aston Martin Aston Martin DB7 (1995)

View All

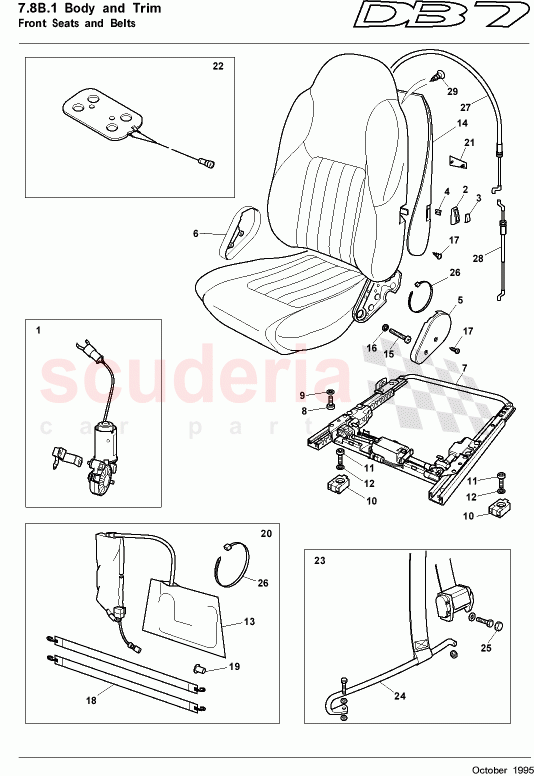

Aston Martin DB7 (1995) - Front Seats and Belts

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7450999	TILT KNOB ESCUTCHEON	$24.80	To Order

Photo	Part No	Description	Price (each)	Stock
	7451227	CLIP - TILT KNOB	$3.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7485691	COVER OUTER-RH	$73.92	To Order

Photo	Part No	Description	Price (each)	Stock
	7485693	COVER INNER-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7482656	ASSY SEAT SLIDE ELEC	$3,484.76	To Order

Photo	Part No	Description	Price (each)	Stock
	7482659	ASSY DIAPHRAGM LUMBAR SUPPT RH	$313.43	To Order

Photo	Part No	Description	Price (each)	Stock
	7482661	BACKBOARD ASY FT SQB LTHR RH	$605.75	To Order

Photo	Part No	Description	Price (each)	Stock
	7482666	Internal cover, recline mechanism - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	74110605AA	SEAT BELT BUCKLE- EURO	$271.91	To Order

Photo	Part No	Description	Price (each)	Stock
	8082673	SLIDER BAR RH - FRT SEAT BELT	$23.69	To Order

Photo	Part No	Description	Price (each)	Stock
	8082676	BOLT CAP - SEAT BELT	$0.82	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7482640	SEAT ASSY COMP FT LT R L/H/SRH	7482640 SEAT ASSY COMP FT LT R L/H/SRH Advise trim colour required	$6,847.78	1
-	7482461	Seat assembly, complete, front - LH	7482461 Seat assembly, complete, front - LH Advise trim colour required	-	1	Enquire
-	7485692	COVER OUTER-LH	7485692 COVER OUTER-LH Advise trim colour required	-	1	Enquire
-	7482662	BACKBOARD ASY FT SQB LTHR LH	7482662 BACKBOARD ASY FT SQB LTHR LH Advise trim colour required	$605.75	1
-	7482646	FRONT CUSHION COVER ASSY-LEATHER	7482646 FRONT CUSHION COVER ASSY-LEATHER Advise trim colour required	$1,343.67	2
-	7482657	ASSY SEAT SLIDE ELEC	7482657 ASSY SEAT SLIDE ELEC Previously 74-82657	$2,094.70	1
-	697563	Adhesive, Plexus A0420	697563 Adhesive, Plexus A0420 Leather retention	-	-	Enquire
-	7450999	TILT KNOB ESCUTCHEON	7450999 TILT KNOB ESCUTCHEON From (V) 100086	$24.80	2
-	7485694	COVER INNER-LH	7485694 COVER INNER-LH	-	1	Enquire
-	8082674	SLIDER BAR LH - FRT SEAT BELT	8082674 SLIDER BAR LH - FRT SEAT BELT	$23.69	1
-	7482660	ASSY DIAPHRAGM LUMBAR SUPPT LH	7482660 ASSY DIAPHRAGM LUMBAR SUPPT LH	$313.43	1
-	8082671	Bracket, anti rotation - RH	8082671 Bracket, anti rotation - RH	-	1	Enquire
-	8082672	Bracket, anti rotation - LH	8082672 Bracket, anti rotation - LH	-	1	Enquire
-	8082670	SEAT BELT KIT FRONT LH	8082670 SEAT BELT KIT FRONT LH	$286.97	1
-	697619	Tie strap	697619 Tie strap	-	12	Enquire
-	7482667	Internal cover, recline mechanism - LH	7482667 Internal cover, recline mechanism - LH	-	2	Enquire
-	7482653	SQUAB COVER ASSY- LEATHER	7482653 SQUAB COVER ASSY- LEATHER	$1,229.39	2
-	7482668	DIAPHRAGM - CUSHION UNIT	7482668 DIAPHRAGM - CUSHION UNIT	$200.86	2
-	697562	GROMMET 12mm ID	697562 GROMMET 12mm ID	$23.12	2
-	7483172	Tensioner assembly	7483172 Tensioner assembly	-	4	Enquire
-	697290	PUSH ON FIXER-M3	697290 PUSH ON FIXER-M3	$0.12	4
2	7450999	TILT KNOB ESCUTCHEON	7450999 TILT KNOB ESCUTCHEON Up to (V) 100085	$24.80	2
4	7451227	CLIP - TILT KNOB IN STOCK	7451227 CLIP - TILT KNOB IN STOCK	$3.39	2
5	7485691	COVER OUTER-RH	7485691 COVER OUTER-RH Advise trim colour required	$73.92	1
6	7485693	COVER INNER-RH	7485693 COVER INNER-RH	-	1	Enquire
7	7482656	ASSY SEAT SLIDE ELEC	7482656 ASSY SEAT SLIDE ELEC Previously 74-82656	$3,484.76	1
13	7482659	ASSY DIAPHRAGM LUMBAR SUPPT RH	7482659 ASSY DIAPHRAGM LUMBAR SUPPT RH	$313.43	1
14	7482661	BACKBOARD ASY FT SQB LTHR RH	7482661 BACKBOARD ASY FT SQB LTHR RH Advise trim colour required	$605.75	1
21	7482666	Internal cover, recline mechanism - RH	7482666 Internal cover, recline mechanism - RH	-	2	Enquire
23	74110605AA	SEAT BELT BUCKLE- EURO	74110605AA SEAT BELT BUCKLE- EURO	$271.91	1
24	8082673	SLIDER BAR RH - FRT SEAT BELT	8082673 SLIDER BAR RH - FRT SEAT BELT	$23.69	1
25	8082676	BOLT CAP - SEAT BELT	8082676 BOLT CAP - SEAT BELT	$0.82	1
