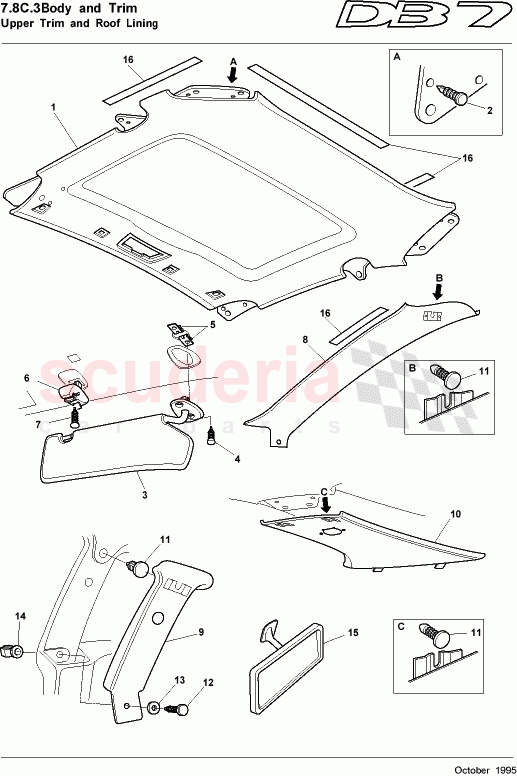

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	92002	RHD DRIVERS SUNVISOR MAIN ASSY	$1,000.18	To Order

Photo	Part No	Description	Price (each)	Stock
	8382831	COMP ASSY FINISHER A POST RH	$592.19	To Order

Photo	Part No	Description	Price (each)	Stock
	8382823	FINISHER ASSY B POST RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382828	ASSY COMP C PILLAR TRIMMED RH	$306.92	To Order

Photo	Part No	Description	Price (each)	Stock
	8382833	Interior mirror assembly, rear view	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8382829	ASSY COMP C PILLAR TRIMMED LH	8382829 ASSY COMP C PILLAR TRIMMED LH Advise trim colour required	$306.92	1
-	8382832	COMP ASSY FINISHER A POST LH	8382832 COMP ASSY FINISHER A POST LH Advise trim colour required	$582.84	1
-	8382824	FINISHER ASSY B POST LH	8382824 FINISHER ASSY B POST LH Advise trim colour required	-	1	Enquire
-	8028896	ADHESIVE PAD-INT MIR	8028896 ADHESIVE PAD-INT MIR Cut to shape	$8.79	1
-	92002	RHD DRIVERS SUNVISOR MAIN ASSY	92002 RHD DRIVERS SUNVISOR MAIN ASSY RHD	$1,000.18	1
-	91999	LHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED)	91999 LHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED) LHD	$1,000.18	1
3	92002	RHD DRIVERS SUNVISOR MAIN ASSY	92002 RHD DRIVERS SUNVISOR MAIN ASSY RHD	$1,000.18	1
8	8382831	COMP ASSY FINISHER A POST RH	8382831 COMP ASSY FINISHER A POST RH Advise trim colour required	$592.19	1
9	8382823	FINISHER ASSY B POST RH	8382823 FINISHER ASSY B POST RH Advise trim colour required	-	1	Enquire
10	8382828	ASSY COMP C PILLAR TRIMMED RH	8382828 ASSY COMP C PILLAR TRIMMED RH Advise trim colour required	$306.92	1
15	8382833	Interior mirror assembly, rear view	8382833 Interior mirror assembly, rear view	-	1	Enquire
