Body Fittings of Aston Martin Aston Martin DB7 (1995)

View All

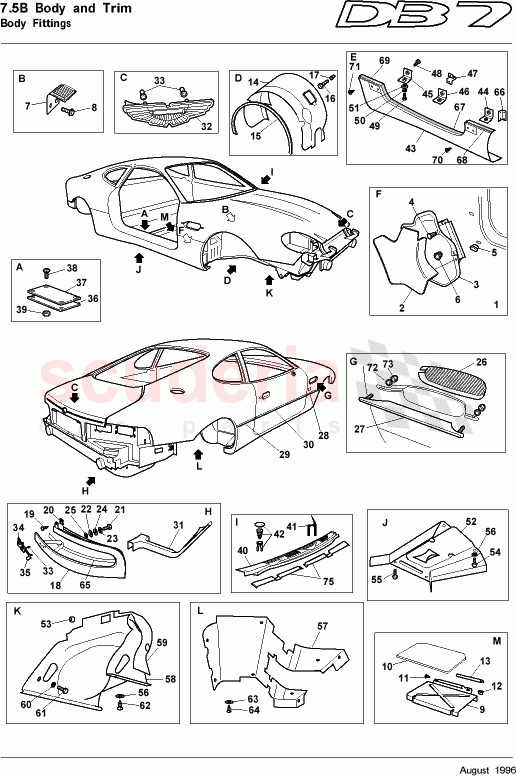

Aston Martin DB7 (1995) - Body Fittings

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8382407	Cover assy, ECM Mounting complete - LH	Enquire	To Order
	8382408	Cover assy, ECM Mounting complete - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383147	CARPET-ECU COVER LH RHD	Enquire	To Order
	8383148	CARPET-ECU COVER RH LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3782411	COVER WELDED ASY ECU MTG LH	Enquire	To Order
	3782412	COVER WELDED ASY ECU MTG RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8883635	STUD-QUARTER TURN	Enquire	To Order
	8883634	CAM - TURNBUCKLE	Enquire	To Order
	7890224	STONEGUARD RH	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8882420	EDGE FINISHER- STONEGUARD	Enquire	To Order
	8882419	EDGE FINISHER- STONEGUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697497PK	Screw-No8x19 FLG(20)	Enquire	To Order
	697528PK	Washer-M5 Large OD Pack of 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7882422	FINISHER ASSY REAR LAMP RH	Enquire	To Order
	7882423	FINISHER ASSY REAR LAMP LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7882425	MESH GRILLE WING RH	Enquire	To Order
	7882426	MESH GRILLE WING LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7882427	FINISHER GRILLE WING RH	Enquire	To Order
	7882428	FINISHER GRILLE WING LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	78123766AA	MOULDING FRONT WING RH	Enquire	To Order
	78123767AA	MOULDING FRONT WING LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	78123768AA	MOULDING REAR TONNEAU RH	Enquire	To Order
	78123769AA	MOULDING REAR TONNEAU LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7883225	MOULDING-FRT DOOR RH	Enquire	To Order
	7883226	MOULDING-FRT DOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7882437U	MOULDING INFILL RR LAMP LH	Enquire	To Order
	8382437	Moulding infill, rear lamp - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7783597	FOAM BLOCK - SILL PLATE	Enquire	To Order
	7882439	NAME PLAQUE - SILL INNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7884803	WINDSCREEN COWL RHD	Enquire	To Order
	7782442	SEAL WINDSCREEN COWL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7883292	Sill protection strip - RH	Enquire	To Order
	7883293	Sill protection strip - LH	Enquire	To Order
	7882443	SILL ASSY FINISHER OUTER RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8683628	H/SHIELD-ENGBAY B/HD	Enquire	To Order
	8683628	H/SHIELD-ENGBAY B/HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7883155	BRACKET ASSY CLOSING LOWER RH	Enquire	To Order
	7883156	BRACKET ASSY CLOSING LOWER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order
	697431	NUT M4 NYLOC	Enquire	To Order
	697485	WASHER M6 PLAIN FORM C	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	78111968AA	DUCT COVER - OUTER	78111968AA DUCT COVER - OUTER	-	1	Enquire
-	78111967AA	DUCT COVER - INNER	78111967AA DUCT COVER - INNER	-	1	Enquire
-	697490	Adhesive, Scotchweld DP605	697490 Adhesive, Scotchweld DP605	-	-	Enquire
1	8382407	Cover assy, ECM Mounting complete - LH	8382407 Cover assy, ECM Mounting complete - LH RHD - Advise trim	-	1	Enquire
1	8382408	Cover assy, ECM Mounting complete - RH	8382408 Cover assy, ECM Mounting complete - RH LHD - Advise trim	-	1	Enquire
2	8383147	CARPET-ECU COVER LH RHD	8383147 CARPET-ECU COVER LH RHD RHD - Advise trim	-	1	Enquire
2	8383148	CARPET-ECU COVER RH LHD	8383148 CARPET-ECU COVER RH LHD LHD - Advise trim	-	1	Enquire
3	3782411	COVER WELDED ASY ECU MTG LH	3782411 COVER WELDED ASY ECU MTG LH RHD	-	1	Enquire
3	3782412	COVER WELDED ASY ECU MTG RH	3782412 COVER WELDED ASY ECU MTG RH	-	1	Enquire
14	8883635	STUD-QUARTER TURN	8883635 STUD-QUARTER TURN Fixing access panel	-	2	Enquire
14	8883634	CAM - TURNBUCKLE	8883634 CAM - TURNBUCKLE Fixing access panel	-	2	Enquire
14	7890224	STONEGUARD RH	7890224 STONEGUARD RH	-	1	Enquire
14	7890225	STONEGUARD ASSY LH FRT WHEELARCH	7890225 STONEGUARD ASSY LH FRT WHEELARCH	-	1	Enquire
14	8886528	PANEL-HDLP ACCESS	8886528 PANEL-HDLP ACCESS	-	1	Enquire
14	697289	WASHER-QUICK RELEASE FASTENER	697289 WASHER-QUICK RELEASE FASTENER	-	2	Enquire
15	8882420	EDGE FINISHER- STONEGUARD	8882420 EDGE FINISHER- STONEGUARD	-	2	Enquire
15	8882419	EDGE FINISHER- STONEGUARD	8882419 EDGE FINISHER- STONEGUARD	-	4	Enquire
16	697497PK	Screw-No8x19 FLG(20)	697497PK Screw-No8x19 FLG(20)	-	14	Enquire
16	697528PK	Washer-M5 Large OD Pack of 20	697528PK Washer-M5 Large OD Pack of 20	-	14	Enquire
18	7882422	FINISHER ASSY REAR LAMP RH	7882422 FINISHER ASSY REAR LAMP RH	-	1	Enquire
18	7882423	FINISHER ASSY REAR LAMP LH	7882423 FINISHER ASSY REAR LAMP LH	-	1	Enquire
26	7882425	MESH GRILLE WING RH	7882425 MESH GRILLE WING RH	-	1	Enquire
26	7882426	MESH GRILLE WING LH	7882426 MESH GRILLE WING LH	-	1	Enquire
27	7882427	FINISHER GRILLE WING RH	7882427 FINISHER GRILLE WING RH	-	1	Enquire
27	7882428	FINISHER GRILLE WING LH	7882428 FINISHER GRILLE WING LH	-	1	Enquire
28	78123766AA	MOULDING FRONT WING RH	78123766AA MOULDING FRONT WING RH	-	1	Enquire
28	78123767AA	MOULDING FRONT WING LH	78123767AA MOULDING FRONT WING LH	-	1	Enquire
29	78123768AA	MOULDING REAR TONNEAU RH	78123768AA MOULDING REAR TONNEAU RH Advise trim	-	1	Enquire
29	78123769AA	MOULDING REAR TONNEAU LH	78123769AA MOULDING REAR TONNEAU LH Advise trim	-	1	Enquire
30	7883225	MOULDING-FRT DOOR RH	7883225 MOULDING-FRT DOOR RH	-	1	Enquire
30	7883226	MOULDING-FRT DOOR LH	7883226 MOULDING-FRT DOOR LH	-	1	Enquire
31	7882437U	MOULDING INFILL RR LAMP LH	7882437U MOULDING INFILL RR LAMP LH	-	1	Enquire
31	8382437	Moulding infill, rear lamp - LH	8382437 Moulding infill, rear lamp - LH	-	1	Enquire
37	7783597	FOAM BLOCK - SILL PLATE	7783597 FOAM BLOCK - SILL PLATE From (V) 100550	-	2	Enquire
37	7882439	NAME PLAQUE - SILL INNER	7882439 NAME PLAQUE - SILL INNER	-	2	Enquire
40	7884803	WINDSCREEN COWL RHD	7884803 WINDSCREEN COWL RHD RHD	-	1	Enquire
40	7782442	SEAL WINDSCREEN COWL	7782442 SEAL WINDSCREEN COWL LHD	-	1	Enquire
43	7883292	Sill protection strip - RH	7883292 Sill protection strip - RH Clear plastic	-	1	Enquire
43	7883293	Sill protection strip - LH	7883293 Sill protection strip - LH Clear plastic	-	1	Enquire
43	7882443	SILL ASSY FINISHER OUTER RH	7882443 SILL ASSY FINISHER OUTER RH	-	1	Enquire
43	7882444	SILL ASSY FINISHER OUTER LH	7882444 SILL ASSY FINISHER OUTER LH	-	1	Enquire
58	8683628	H/SHIELD-ENGBAY B/HD	8683628 H/SHIELD-ENGBAY B/HD Up to (V) 100680	-	1	Enquire
58	8683628	H/SHIELD-ENGBAY B/HD	8683628 H/SHIELD-ENGBAY B/HD From (V) 100681	-	1	Enquire
66	7883155	BRACKET ASSY CLOSING LOWER RH	7883155 BRACKET ASSY CLOSING LOWER RH	-	1	Enquire
66	7883156	BRACKET ASSY CLOSING LOWER LH	7883156 BRACKET ASSY CLOSING LOWER LH	-	1	Enquire
73	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	4	Enquire
73	697431	NUT M4 NYLOC	697431 NUT M4 NYLOC	-	4	Enquire
73	697485	WASHER M6 PLAIN FORM C	697485 WASHER M6 PLAIN FORM C	-	8	Enquire
