Door Glass And Frames

Aston Martin DB7 (1995)

Find Your Part

Aston Martin DB7 (1995) - Door Glass and Frames

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
7682225 GLASS ASSY DOOR RH 500 x 980 x 3mm $1,065.83 To Order
7682226 GLASS ASSY DOOR LH 500 x 980 x 3mm $1,065.83 To Order
Photo Part No Description Price (each) Stock
6582230 Guide assy, door glass - RH $124.37 To Order
6582231 Guide assy, door glass - LH $124.37 To Order
63123448AA GUIDE ASSY REAR DOOR GLASS RH $77.93 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
6582232 BRACKET ATTACH DOOR GLASS RH $10.55 To Order
6582233 BRACKET ATTACH DOOR GLASS LH $14.69 To Order
6582234 SHIM-DOOR GLASS ATTACH REAR $6.86 To Order
Photo Part No Description Price (each) Stock
91689 REGULATOR ASSY DR-RH $914.67 To Order
91690 REGULATOR ASSY DR-LH $914.67 To Order
Photo Part No Description Price (each) Stock
7782237 SEAL ASSY DOOR WAIST OUTER RH $243.90 To Order
7782238 SEAL ASSY DOOR WAIST OUTER LH $243.90 To Order
77124148BA WAIST SEAL RH CONV $794.60 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
6583307 Cheater assy - RH Enquire To Order
6583308 Cheater assy - LH Enquire To Order
6584059 CHEATER COMP ASSY RH $926.05 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
7782244 SEAL ASSY CHEATER CHANNEL RH $105.78 To Order
7782245 SEAL ASSY CHEATER CHANNEL LH $105.78 To Order
8084065 FINISHER INNER CHEATER RH $59.25 To Order
...and 13 more part variants. See table on right for more details.
View All

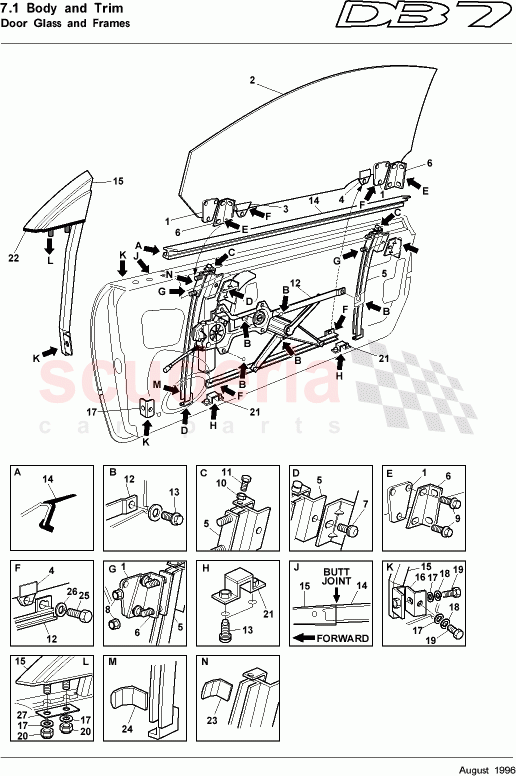

Door Glass and Frames of Aston Martin Aston Martin DB7 (1995) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 697464
ADHESIVE-SIKAFLEX260
Cheater inner to outer and seals to retainer 		$397.08 -
- 693155
Primer, Sikaflex 205
Cheater inner to outer and seals to retainer 		$101.00 -
- 697028
ALPHA SEAL 132
Cheater inner to door inner 		$52.52 -
- 6582250
BUSH FRICTION
Inner finisher to cheater 		$0.12 4
- 697726
SCREW No6 x 3/8 S.T.
Outer finisher to cheater 		$0.04 6
- 698689
ALPHABOND 1004
Waist seal outer to door 		$38.28 -
- 695326
LOCTITE 406 ADHESIVE
Seal to cheater channel 		$72.49 -
- 697462
JOINT SEALER (127)
Cheater base to door 		$11.68 -
- 7682225
GLASS ASSY DOOR RH 500 x 980 x 3mm 		$1,065.83 1
- 7682226
GLASS ASSY DOOR LH 500 x 980 x 3mm 		$1,065.83 1
- 697459
Greasil 4000 		$41.95 -
2 7682225
GLASS ASSY DOOR RH 500 x 980 x 3mm 		$1,065.83 1
2 7682226
GLASS ASSY DOOR LH 500 x 980 x 3mm 		$1,065.83 1
5 6582230
Guide assy, door glass - RH
Front only from (V)100718 		$124.37 2
5 6582231
Guide assy, door glass - LH
Front only from (V)100718 		$124.37 2
5 63123448AA
GUIDE ASSY REAR DOOR GLASS RH
From (V)100718 		$77.93 1
5 63123449AA
GUIDE ASSY REAR DOOR GLASS LH
From (V)100718 		$106.24 1
6 6582232
BRACKET ATTACH DOOR GLASS RH 		$10.55 2
6 6582233
BRACKET ATTACH DOOR GLASS LH 		$14.69 2
6 6582234
SHIM-DOOR GLASS ATTACH REAR 		$6.86 2
12 91689
REGULATOR ASSY DR-RH 		$914.67 1
12 91690
REGULATOR ASSY DR-LH 		$914.67 1
14 7782237
SEAL ASSY DOOR WAIST OUTER RH
Up to (V)100662 		$243.90 1
14 7782238
SEAL ASSY DOOR WAIST OUTER LH
Up to (V)100662 		$243.90 1
14 77124148BA
WAIST SEAL RH CONV
From (V)100663 		$794.60 1
14 77124147BA
WAIST SEAL LH CONV
From (V)100663 		$727.19 1
14 7790215PK
RIVET-W/RAIL OTR(20)
From (V)100663 		$13.50 6
15 6583307
Cheater assy - RH
Up to (V)100662 		- 1 Enquire
15 6583308
Cheater assy - LH
Up to (V)100662 		- 1 Enquire
15 6584059
CHEATER COMP ASSY RH
From (V)100663 		$926.05 1
15 6584060
CHEATER COMP ASSY LH
From (V)100663 		$624.35 1
22 7782244
SEAL ASSY CHEATER CHANNEL RH
Up to (V)100662 		$105.78 1
22 7782245
SEAL ASSY CHEATER CHANNEL LH
Up to (V)100662 		$105.78 1
22 8084065
FINISHER INNER CHEATER RH
Up to (V)100662 		$59.25 1
22 8084066
FINISHER INNER CHEATER LH
Up to (V)100662 		$59.25 1
22 7884063
FINISHER OUTER CHEATER RH
Up to (V)100662 		$297.40 1
22 7884064
FINISHER OUTER CHEATER LH
Up to (V)100662 		$62.85 1
22 65121786AA
SEAL CHEATER BASE RH
Up to (V)100662 		$55.68 1
22 65121787AA
SEAL CHEATER BASE LH
Up to (V)100662 		$141.79 1
22 7784061
SEAL ASSY CHEATER CHANNEL RH
From (V)100663 		$306.50 1
22 7784062
SEAL ASSY CHEATER CHANNEL LH
From (V)100663 		$323.77 1
22 8084065
FINISHER INNER CHEATER RH
From (V)100663 		$59.25 1
22 8084066
FINISHER INNER CHEATER LH
From (V)100663 		$59.25 1
22 7884063
FINISHER OUTER CHEATER RH
From (V)100663 		$297.40 1
22 7884064
FINISHER OUTER CHEATER LH
From (V)100663 		$62.85 1
22 65121786AA
SEAL CHEATER BASE RH
From (V)100663 		$55.68 1
22 65121787AA
SEAL CHEATER BASE LH
From (V)100663 		$141.79 1
