20 - Steering - 20.2 - Steering Pump

McLaren Ultimate Series McLaren Senna

Find Your Part

McLaren Ultimate Series McLaren Senna - 20 - STEERING - 20.2 - STEERING PUMP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

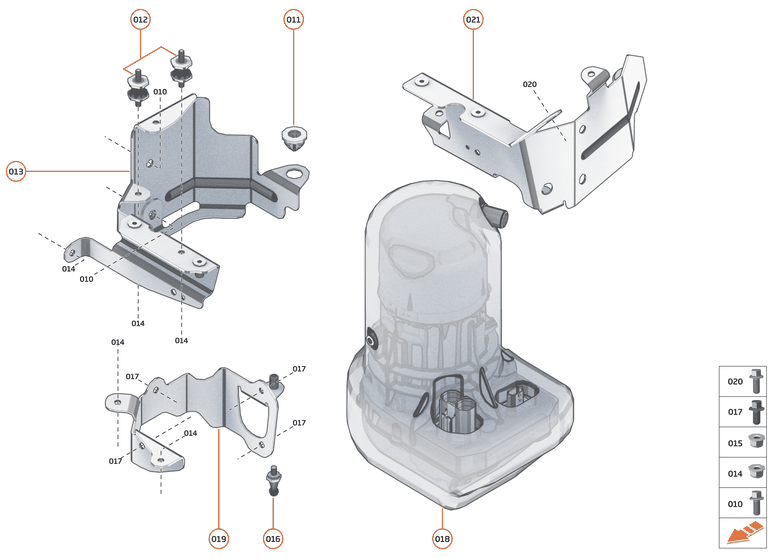

20 - STEERING - 20.2 - STEERING PUMP of McLaren McLaren Ultimate Series McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RX043
BOLT - HEX HEAD - FLANGE - M8X20
Row ID: ID_XXXXXXZV_00RX043_ContPgHS; 		- 2 Enquire
011 00RB184
CLIP - SNAPLOC - 18X10
Row ID: ID_XXXXXXZZ_00RB184_ContPgHS; 		- 1 Enquire
012 11D0124CP
MOUNT - AV - RUBBER
Row ID: ID_ECBA0201_11D0124CP_ContPgHS; 		- 2 Enquire
013 15DA003CP
BRACKET - PAS PUMP - LHD
Row ID: ID_ECBA0202_15DA003CP_ContPgHS; 		- 1 Enquire
014 00RA555
NUT - M5X0.8 - HEX LOCKED
Row ID: ID_XXXXXXZV_00RA555_ContPgHS; 		- 3 Enquire
015 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID_XXXXXXZV_00RA055_ContPgHS; 		- 2 Enquire
016 00RA360
STUD BALL - M6X19
Row ID: ID_XXXXXXZV_00RA360_ContPgHS; 		- 1 Enquire
017 00RA458
BOLT - M6X10 - FLANGED
Row ID: ID_XXXXXXZV_00RA458_ContPgHS; 		- 4 Enquire
018 14DA001CP
COVER - PUMP - PAS - STEERING
Row ID: ID_ECBA0203_14DA001CP_ContPgHS; 		- 1 Enquire
019 15DA016CP
BRACKET - ANTI-VIBRATION - PUMP - LHD
Row ID: ID_ECBA0204_15DA016CP_ContPgHS; 		- 1 Enquire
020 00RA557
BOLT - HEX HEAD - M8X1.25X25
Row ID: ID_XXXXXXZV_00RA557_ContPgHS; 		- 1 Enquire
021 15DA033CP
BRACKET - POWER STEERING PUMP - RHD
Row ID: ID_ECBA0205_15DA033CP_ContPgHS; 		- 1 Enquire
