17 - SUSPENSION - 17.5 - UPRIGHTS REAR of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 17 - SUSPENSION - 17.5 - UPRIGHTS REAR

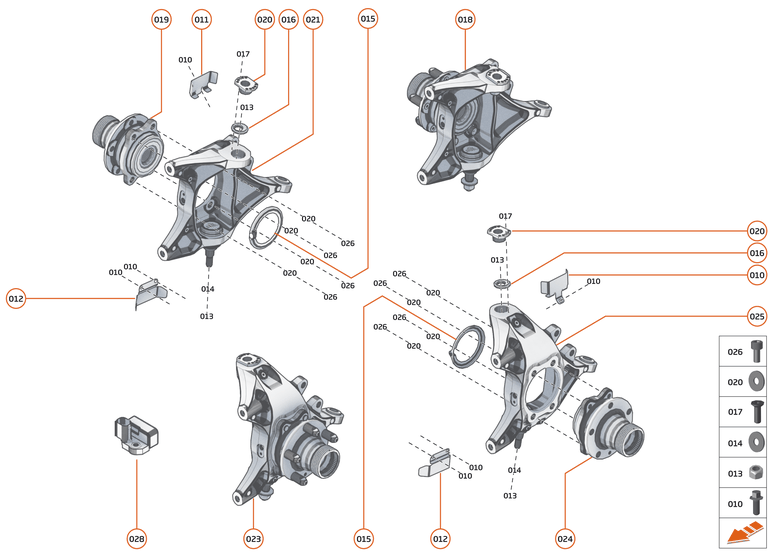

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA165	BOLT - M5X8 - HEX	00RA165 BOLT - M5X8 - HEX Row ID: ID_XXXXXXZV_00RA165_ContPgHS;	-	6	Enquire
011	14B0631CP	HEATSHIELD - BALL JOINT - REAR - UPPER	14B0631CP HEATSHIELD - BALL JOINT - REAR - UPPER Row ID: ID_ECAR0501_14B0631CP_ContPgHS;	-	2	Enquire
012	14B0632CP	HEATSHIELD - BALL JOINT - REAR - LOWER	14B0632CP HEATSHIELD - BALL JOINT - REAR - LOWER Row ID: ID_ECAR0502_14B0632CP_ContPgHS;	-	2	Enquire
013	00RA229	NUT - M14X1.5 - LOCKED HEX	00RA229 NUT - M14X1.5 - LOCKED HEX Row ID: ID_XXXXXXZV_00RA229_ContPgHS;	-	4	Enquire
014	11B0320CP	WASHER - DIA 35X3.9X14.5	11B0320CP WASHER - DIA 35X3.9X14.5 Row ID: ID_ECAR0503_11B0320CP_ContPgHS;	-	2	Enquire
015	11B0630CP	PROTECTOR CAP - HUB	11B0630CP PROTECTOR CAP - HUB Row ID: ID_ECAR0504_11B0630CP_ContPgHS;	-	2	Enquire
016	11B0739CP	WASHER - CAMBER ADJUSTMENT	11B0739CP WASHER - CAMBER ADJUSTMENT Row ID: ID_ECAR0505_11B0739CP_ContPgHS;	-	2	Enquire
017	11B0993CP	SCREW - M3X12 - HEX	11B0993CP SCREW - M3X12 - HEX Row ID: ID_ECAR0506_11B0993CP_ContPgHS;	-	2	Enquire
018	15BA267CP	UPRIGHT - SUSPENSION - REAR - RH	15BA267CP UPRIGHT - SUSPENSION - REAR - RH Row ID: ID_ECAR0507_15BA267CP_ContPgHS;	-	1	Enquire
019	15BA257CP	HUB WHEEL BEARING - CENTRE LOCK - RH - REAR	15BA257CP HUB WHEEL BEARING - CENTRE LOCK - RH - REAR Row ID: ID_ECAR0508_15BA257CP_ContPgHS;	-	1	Enquire
020	11B0541CP	TOPHAT - CAMBER ADJUSTMENT	11B0541CP TOPHAT - CAMBER ADJUSTMENT Row ID: ID_ECAR0509_11B0541CP_ContPgHS;	-	2	Enquire
021	15BA267CP	UPRIGHT - SUSPENSION - REAR - RH	15BA267CP UPRIGHT - SUSPENSION - REAR - RH Superseded parts: 15BA186CP; Row ID: ID_ECAR0510_15BA267CP_ContPgHS;	-	1	Enquire
022	14B0714CP	WASHER - M12X23	14B0714CP WASHER - M12X23 Row ID: ID_ECAR0511_14B0714CP_ContPgHS;	-	8	Enquire
023	15BA266CP	UPRIGHT - SUSPENSION - REAR - LH	15BA266CP UPRIGHT - SUSPENSION - REAR - LH Row ID: ID_ECAR0512_15BA266CP_ContPgHS;	-	1	Enquire
024	15BA256CP	HUB WHEEL BEARING - CENTRE LOCK - LH - REAR	15BA256CP HUB WHEEL BEARING - CENTRE LOCK - LH - REAR Row ID: ID_ECAR0513_15BA256CP_ContPgHS;	-	1	Enquire
025	15BA266CP	UPRIGHT - SUSPENSION - REAR - LH	15BA266CP UPRIGHT - SUSPENSION - REAR - LH Superseded parts: 15BA187CP; Row ID: ID_ECAR0514_15BA266CP_ContPgHS;	-	1	Enquire
026	14BA220CP	HEX SOCKET HD CAP M12X30 8.8	14BA220CP HEX SOCKET HD CAP M12X30 8.8 Row ID: ID_ECAR0515_14BA220CP_ContPgHS;	-	8	Enquire
028	16MB093CP	SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH	16MB093CP SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH Row ID: ID__16MB093CP_ContPgHS;	-	2	Enquire
