18 - BRAKES - 18.2 - BRAKE CALIPERS FRONT of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 18 - BRAKES - 18.2 - BRAKE CALIPERS FRONT

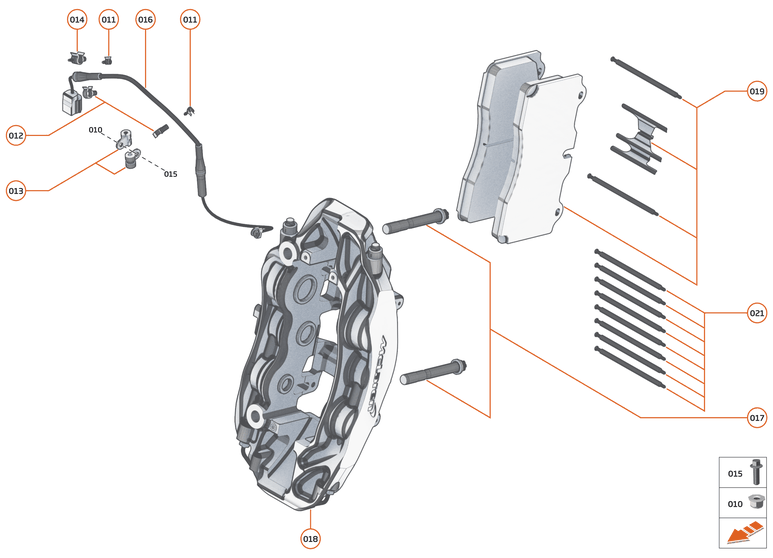

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID_XXXXXXZV_00RA555_ContPgHS;	-	2	Enquire
011	00RB042	SWIVEL PIPE CLIP	00RB042 SWIVEL PIPE CLIP Row ID: ID_XXXXXXZY_00RB042_ContPgHS;	-	4	Enquire
012	00RB046	CLIP - 8-9MM - FEMALE	00RB046 CLIP - 8-9MM - FEMALE Row ID: ID_XXXXXXZZ_00RB046_ContPgHS;	-	4	Enquire
013	00RB109	CLIP - NORMA - RSGU 8	00RB109 CLIP - NORMA - RSGU 8 Row ID: ID_XXXXXXZZ_00RB109_ContPgHS;	-	4	Enquire
014	00RB214	SWIVEL CLIP - 7.5-8X25.5 - MALE-FEMALE	00RB214 SWIVEL CLIP - 7.5-8X25.5 - MALE-FEMALE Row ID: ID_ECAS0201_00RB214_ContPgHS;	-	2	Enquire
015	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID_XXXXXXZV_00RX001_ContPgHS;	-	2	Enquire
016	11M1397CP	ASSY-LINK LEAD-BRAKE PAD-FR IN STOCK	11M1397CP ASSY-LINK LEAD-BRAKE PAD-FR Row ID: ID_ECAS0202_11M1397CP_ContPgHS; IN STOCK	$50.33	2
017	11C0525CP	BOLT - BRAKE CALIPER - CARBON CERAMIC	11C0525CP BOLT - BRAKE CALIPER - CARBON CERAMIC Row ID: ID_ECAS0203_11C0525CP_ContPgHS;	-	4	Enquire
018	15CA215CP	BRAKE CALIPER - FRONT - RH	15CA215CP BRAKE CALIPER - FRONT - RH Row ID: ID_ECAS0205_15CA215CP_ContPgHS;	-	1	Enquire
018	15CA214CP	BRAKE CALIPER - FRONT - LH	15CA214CP BRAKE CALIPER - FRONT - LH Row ID: ID_ECAS0204_15CA214CP_ContPgHS;	-	1	Enquire
019	15CA218CP	BRAKE PAD KIT - AXLE SET - FRONT	15CA218CP BRAKE PAD KIT - AXLE SET - FRONT Row ID: ID_ECAS0206_15CA218CP_ContPgHS;	-	1	Enquire
020	11C0678CP	Dust Seal Kit - Brake Caliper - Carbon - Front	11C0678CP Dust Seal Kit - Brake Caliper - Carbon - Front Row ID: ID_ECAS0207_11C0678CP_ContPgHS;	-	1	Enquire
021	13CA043CP	PIN KIT - BRAKE PAD RETENTION	13CA043CP PIN KIT - BRAKE PAD RETENTION Row ID: ID__13CA043CP_ContPgHS;	-	1	Enquire
