20 - STEERING - 20.1 - STEERING FLUID SYSTEM of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 20 - STEERING - 20.1 - STEERING FLUID SYSTEM

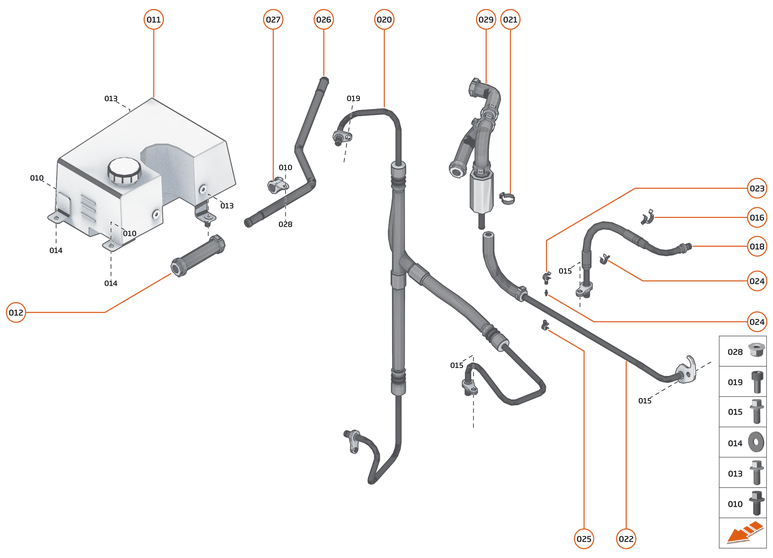

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID_EAAF0366_00RA313_ContPgHS;	-	3	Enquire
011	15DA053CP	RESERVOIR - PAS FLUID - CENTRE	15DA053CP RESERVOIR - PAS FLUID - CENTRE Row ID: ID_ECBA0101_15DA053CP_ContPgHS;	-	1	Enquire
012	15DA051CP	HOSE - PAS FLUID RESERVOIR	15DA051CP HOSE - PAS FLUID RESERVOIR Row ID: ID_ECBA0102_15DA051CP_ContPgHS;	-	1	Enquire
013	00RA515	BOLT - HEX - FLANGE - M6X16	00RA515 BOLT - HEX - FLANGE - M6X16 Row ID: ID_EAAF0367_00RA515_ContPgHS;	-	2	Enquire
014	00RC118	WASHER - M6X14.4X2.4 - BLACK	00RC118 WASHER - M6X14.4X2.4 - BLACK Row ID: ID_XXXXXXZW_00RC118_ContPgHS;	-	2	Enquire
015	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID_XXXXXXZV_00RA002_ContPgHS;	-	3	Enquire
016	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID_XXXXXXZZ_00RB032_ContPgHS;	-	1	Enquire
017	00RB045	CLIP - 9.5-10MM - MALE	00RB045 CLIP - 9.5-10MM - MALE Row ID: ID_XXXXXXZZ_00RB045_ContPgHS;	-	1	Enquire
018	14D0070CP	PIPE ASSY - FEED - AMPUTO STEERING RACK - RHD	14D0070CP PIPE ASSY - FEED - AMPUTO STEERING RACK - RHD Row ID: ID_ECBA0109_14D0070CP_ContPgHS;	-	1	Enquire
018	14D0003CP	PIPE ASSY - FEED - AMPUTO STEERING RACK - LHD	14D0003CP PIPE ASSY - FEED - AMPUTO STEERING RACK - LHD Row ID: ID_ECBA0104_14D0003CP_ContPgHS;	-	1	Enquire
019	00RA540	SCREW - CAP HEAD - M8X1.25X20-10.9-72	00RA540 SCREW - CAP HEAD - M8X1.25X20-10.9-72 Row ID: ID_XXXXXXZV_00RA540_ContPgHS;	-	1	Enquire
020	15DA024CP	HOSE - PAS PUMP TO APMU - LHD	15DA024CP HOSE - PAS PUMP TO APMU - LHD Row ID: ID_ECBA0105_15DA024CP_ContPgHS;	-	1	Enquire
021	00RB110	OETIKER CLIP - 19.2	00RB110 OETIKER CLIP - 19.2 Row ID: ID_XXXXXXZZ_00RB110_ContPgHS;	-	1	Enquire
022	15DA042CP	HOSE - PAS RESERVOIR - RHD	15DA042CP HOSE - PAS RESERVOIR - RHD Row ID: ID_ECBA0111_15DA042CP_ContPgHS;	-	1	Enquire
022	13DA004CP	HOSE - FILTER TO STEERING RACK - LHD	13DA004CP HOSE - FILTER TO STEERING RACK - LHD Superseded parts: 13D0086CP; Row ID: ID_ECBA0106_13DA004CP_ContPgHS;	-	1	Enquire
023	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE Row ID: ID_XXXXXXZZ_00RB007_ContPgHS;	-	1	Enquire
023	00RB046	CLIP - 8-9MM - FEMALE	00RB046 CLIP - 8-9MM - FEMALE Row ID: ID_XXXXXXZZ_00RB046_ContPgHS;	-	1	Enquire
024	00RB023	CLIP SPACER - 1MM - MALE	00RB023 CLIP SPACER - 1MM - MALE Row ID: ID_XXXXXXZZ_00RB023_ContPgHS;	-	1	Enquire
025	00RB024	CLIP - 6.0-6.5MM - FEMALE	00RB024 CLIP - 6.0-6.5MM - FEMALE Row ID: ID_XXXXXXZZ_00RB024_ContPgHS;	-	1	Enquire
026	15DA010CP	HOSE - PAS RESERVOIR - LHD	15DA010CP HOSE - PAS RESERVOIR - LHD Row ID: ID_ECBA0107_15DA010CP_ContPgHS;	-	1	Enquire
027	00RB191	P-CLIP - 14X15	00RB191 P-CLIP - 14X15 Row ID: ID_XXXXXXZY_00RB191_ContPgHS;	-	1	Enquire
028	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_XXXXXXZV_00RA055_ContPgHS;	-	1	Enquire
029	15DA052CP	HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD	15DA052CP HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD Row ID: ID_ECBA0110_15DA052CP_ContPgHS;	-	1	Enquire
029	15DA050CP	HOSE - RESERVOIR TO - FILTER PUMP - LHD	15DA050CP HOSE - RESERVOIR TO - FILTER PUMP - LHD Row ID: ID_ECBA0108_15DA050CP_ContPgHS;	-	1	Enquire
