17 - SUSPENSION - 17.10 - SUSPENSION FLUID SYSTEMS - REAR of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 17 - SUSPENSION - 17.10 - SUSPENSION FLUID SYSTEMS - REAR

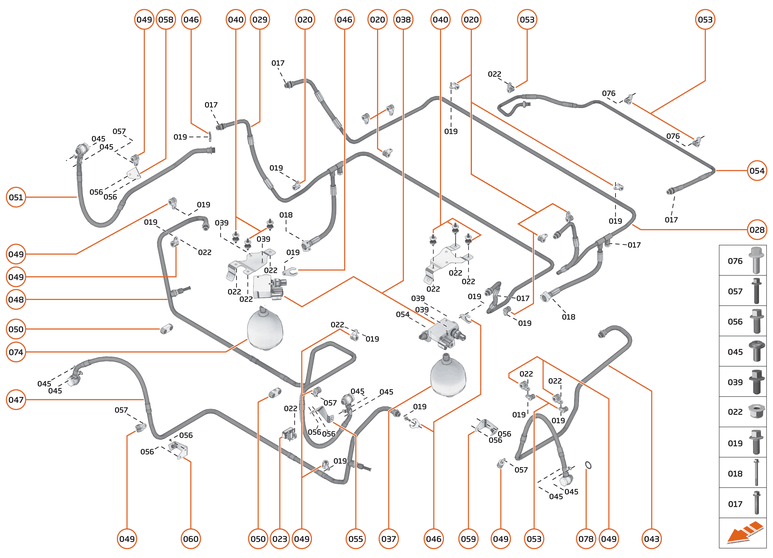

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	14BA263CP	O-RING - VITON - BLACK - 224000NT	14BA263CP O-RING - VITON - BLACK - 224000NT Row ID: ID__14BA263CP_ContPgHS;	-	2	Enquire
017	00RA201	BOLT - M5X0.8X30 - HEX	00RA201 BOLT - M5X0.8X30 - HEX Row ID: ID_XXXXXXZV_00RA201_ContPgHS;	-	5	Enquire
019	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID_EAAF0366_00RA313_ContPgHS;	-	11	Enquire
020	00RB127	P-CLIP - 12/13 - EPDM	00RB127 P-CLIP - 12/13 - EPDM Row ID: ID_XXXXXXZY_00RB127_ContPgHS;	-	9	Enquire
022	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_XXXXXXZV_00RA055_ContPgHS;	-	10	Enquire
023	11M0252CP	Sensor - Accelerometer	11M0252CP Sensor - Accelerometer Row ID: ID_ECAR0806_11M0252CP_ContPgHS;	-	1	Enquire
028	15BA298CP	PIPE - SUSPENSION REAR - LATERAL	15BA298CP PIPE - SUSPENSION REAR - LATERAL Row ID: ID_ECAR0810_15BA298CP_ContPgHS;	-	1	Enquire
029	15BA297CP	PIPE - SUSPENSION REAR - LATERAL	15BA297CP PIPE - SUSPENSION REAR - LATERAL Row ID: ID_ECAR0809_15BA297CP_ContPgHS;	-	1	Enquire
037	15BA234CP	ACCUMULATOR LH FR/RR - SUSPENSION - FR (EX.P23) AND RR (INC.P23) - LH	15BA234CP ACCUMULATOR LH FR/RR - SUSPENSION - FR (EX.P23) AND RR (INC.P23) - LH Row ID: ID_ECAR0815_15BA234CP_ContPgHS;	-	1	Enquire
038	15BA302CP	HOUSING - KINETIC DAMPER - MAPMU - REAR	15BA302CP HOUSING - KINETIC DAMPER - MAPMU - REAR Row ID: ID_ECAR0816_15BA302CP_ContPgHS;	-	2	Enquire
039	00RX003	BOLT - M6X1X12 - HEX	00RX003 BOLT - M6X1X12 - HEX Row ID: ID_XXXXXXZV_00RX003_ContPgHS;	-	4	Enquire
040	11D0124CP	MOUNT - AV - RUBBER	11D0124CP MOUNT - AV - RUBBER Row ID: ID_ECAR0817_11D0124CP_ContPgHS;	-	6	Enquire
041	15BA300CP	BRACKET - MAPMU KINETIC DAMPER - REBOUND - REAR	15BA300CP BRACKET - MAPMU KINETIC DAMPER - REBOUND - REAR Row ID: ID_ECAR0818_15BA300CP_ContPgHS;	-	1	Enquire
042	15BA301CP	BRACKET - MAPMU KINETIC DAMPER - COMP - REAR	15BA301CP BRACKET - MAPMU KINETIC DAMPER - COMP - REAR Row ID: ID_ECAR0819_15BA301CP_ContPgHS;	-	1	Enquire
043	15BA004CP	PIPE - KINETIC DAMPER BUMP - REAR LH	15BA004CP PIPE - KINETIC DAMPER BUMP - REAR LH Row ID: ID_ECAR0820_15BA004CP_ContPgHS;	-	1	Enquire
045	00RA099	SCREW - M4X25 - HEX	00RA099 SCREW - M4X25 - HEX Row ID: ID_ECAR0821_00RA099_ContPgHS;	-	8	Enquire
046	15BA151CP	KEEP PLATE - 14MM	15BA151CP KEEP PLATE - 14MM Row ID: ID_ECAR0822_15BA151CP_ContPgHS;	-	4	Enquire
047	15BA005CP	PIPE - KINETIC DAMPER BUMP - REAR RH	15BA005CP PIPE - KINETIC DAMPER BUMP - REAR RH Row ID: ID_ECAR0823_15BA005CP_ContPgHS;	-	1	Enquire
048	15BA006CP	PIPE - KINETIC DAMPER REBOUND - REAR LH	15BA006CP PIPE - KINETIC DAMPER REBOUND - REAR LH Row ID: ID_ECAR0824_15BA006CP_ContPgHS;	-	1	Enquire
049	00RB191	P-CLIP - 14X15	00RB191 P-CLIP - 14X15 Superseded parts: 00RB003; Row ID: ID_ECAR0825_00RB191_ContPgHS;	-	10	Enquire
050	00RB131	HOSE SEPERATOR PHS6	00RB131 HOSE SEPERATOR PHS6 Row ID: ID_ECAR0826_00RB131_ContPgHS;	-	2	Enquire
051	15BA007CP	PIPE - KINETIC DAMPER REBOUND - REAR RH	15BA007CP PIPE - KINETIC DAMPER REBOUND - REAR RH Row ID: ID_ECAR0827_15BA007CP_ContPgHS;	-	1	Enquire
053	00RB098	P-CLIP - DIA 10 - SILICONE	00RB098 P-CLIP - DIA 10 - SILICONE Row ID: ID_ECAR0829_00RB098_ContPgHS;	-	3	Enquire
054	15BA072CP	PIPE ASSY - KINETIC DAMPER - REAR	15BA072CP PIPE ASSY - KINETIC DAMPER - REAR Row ID: ID_ECAR0828_15BA072CP_ContPgHS;	-	1	Enquire
055	15BA143CP	BRACKET - PIPEWORK - KINETIC DAMPER - REAR - LH	15BA143CP BRACKET - PIPEWORK - KINETIC DAMPER - REAR - LH Row ID: ID_ECAR0830_15BA143CP_ContPgHS;	-	1	Enquire
056	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID_XXXXXXZV_00RX001_ContPgHS;	-	8	Enquire
057	00RA568	BOLT - M6X20 - HEX	00RA568 BOLT - M6X20 - HEX Row ID: ID_XXXXXXZV_00RA568_ContPgHS;	-	2	Enquire
058	15BA144CP	BRACKET - KINETIC DAMPERER - REBOUND PIPE - REAR RH	15BA144CP BRACKET - KINETIC DAMPERER - REBOUND PIPE - REAR RH Row ID: ID_ECAR0832_15BA144CP_ContPgHS;	-	1	Enquire
059	15BA141CP	BRACKET - KINETIC DAMPERER - BUMP PIPE - REAR LH	15BA141CP BRACKET - KINETIC DAMPERER - BUMP PIPE - REAR LH Row ID: ID_ECAR0833_15BA141CP_ContPgHS;	-	1	Enquire
060	15BA142CP	BRACKET - KINETIC DAMPERER - BUMP PIPE - REAR RH	15BA142CP BRACKET - KINETIC DAMPERER - BUMP PIPE - REAR RH Row ID: ID_ECAR0834_15BA142CP_ContPgHS;	-	1	Enquire
074	15BA235CP	KDAMP-CARBON-ACCUM-BUMP-RR-LH	15BA235CP KDAMP-CARBON-ACCUM-BUMP-RR-LH Row ID: ID_ECAR0845_15BA235CP_ContPgHS;	-	1	Enquire
076	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID_XXXXXXZV_00RA061_ContPgHS;	-	2	Enquire
078	12B0743CP	WASHER - PIPE - KENECTIC DAMPER	12B0743CP WASHER - PIPE - KENECTIC DAMPER Row ID: ID__12B0743CP_ContPgHS;	-	1	Enquire
