17 - SUSPENSION - 17.2 - UPRIGHTS FRONT of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 17 - SUSPENSION - 17.2 - UPRIGHTS FRONT

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

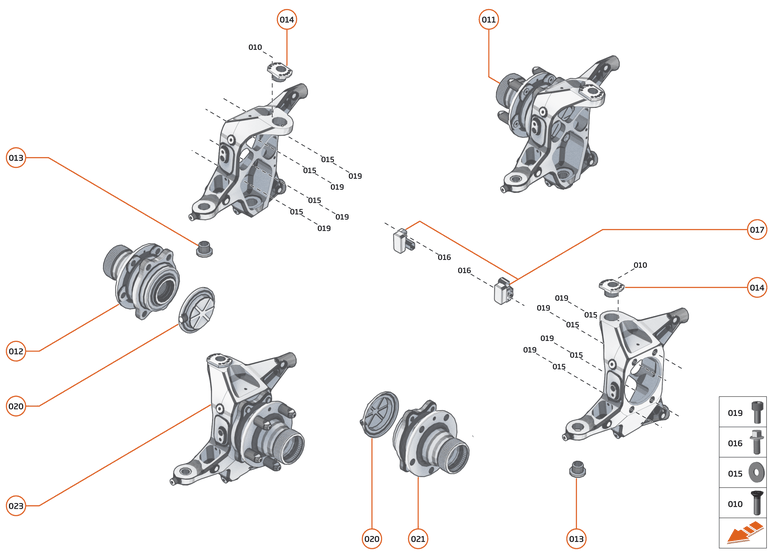

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11B0993CP	SCREW - M3X12 - HEX	11B0993CP SCREW - M3X12 - HEX Row ID: ID_XXXXXXZV_11B0993CP_ContPgHS;	-	2	Enquire
011	15BA317CP	UPRIGHT - SUSPENSION - FRONT - RH	15BA317CP UPRIGHT - SUSPENSION - FRONT - RH Row ID: ID_ECAR0202_15BA317CP_ContPgHS;	-	-	Enquire
012	15BA255CP	HUB WHEEL BEARING - CENTRE LOCK - FR - RH	15BA255CP HUB WHEEL BEARING - CENTRE LOCK - FR - RH Row ID: ID_ECAR0203_15BA255CP_ContPgHS;	-	1	Enquire
013	11B1515RP	TOPHAT - TRACKROD - OUTER BALL JOINT - 675LT	11B1515RP TOPHAT - TRACKROD - OUTER BALL JOINT - 675LT Row ID: ID_ECAR0204_11B1515RP_ContPgHS;	-	2	Enquire
014	11B0541CP	TOPHAT - CAMBER ADJUSTMENT	11B0541CP TOPHAT - CAMBER ADJUSTMENT Row ID: ID_ECAR0205_11B0541CP_ContPgHS;	-	2	Enquire
015	14B0714CP	WASHER - M12X23	14B0714CP WASHER - M12X23 Row ID: ID_ECAR0206_14B0714CP_ContPgHS;	-	8	Enquire
016	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID_XXXXXXZV_00RA083_ContPgHS;	-	2	Enquire
017	16MB093CP	SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH	16MB093CP SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH Row ID: ID__16MB093CP_ContPgHS;	-	2	Enquire
017	16MB358CP	SENSOR HUB ACCELEROMETER FR RH - ONLY	16MB358CP SENSOR HUB ACCELEROMETER FR RH - ONLY Row ID: ID__16MB358CP_ContPgHS;	-	2	Enquire
019	14BA220CP	HEX SOCKET HD CAP M12X30 8.8	14BA220CP HEX SOCKET HD CAP M12X30 8.8 Row ID: ID_ECAR0209_14BA220CP_ContPgHS;	-	8	Enquire
020	11B0630CP	PROTECTOR CAP - HUB	11B0630CP PROTECTOR CAP - HUB Row ID: ID_ECAR0210_11B0630CP_ContPgHS;	-	2	Enquire
021	15BA254CP	HUB WHEEL BEARING - CENTRE LOCK - FR - LH	15BA254CP HUB WHEEL BEARING - CENTRE LOCK - FR - LH Row ID: ID_ECAR0211_15BA254CP_ContPgHS;	-	1	Enquire
023	15BA316CP	UPRIGHT - SUSPENSION - FRONT - LH	15BA316CP UPRIGHT - SUSPENSION - FRONT - LH Row ID: ID_ECAR0213_15BA316CP_ContPgHS;	-	1	Enquire
