17 - SUSPENSION - 17.8 - SUSPENSION FLUID SYSTEMS - FRONT of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 17 - SUSPENSION - 17.8 - SUSPENSION FLUID SYSTEMS - FRONT

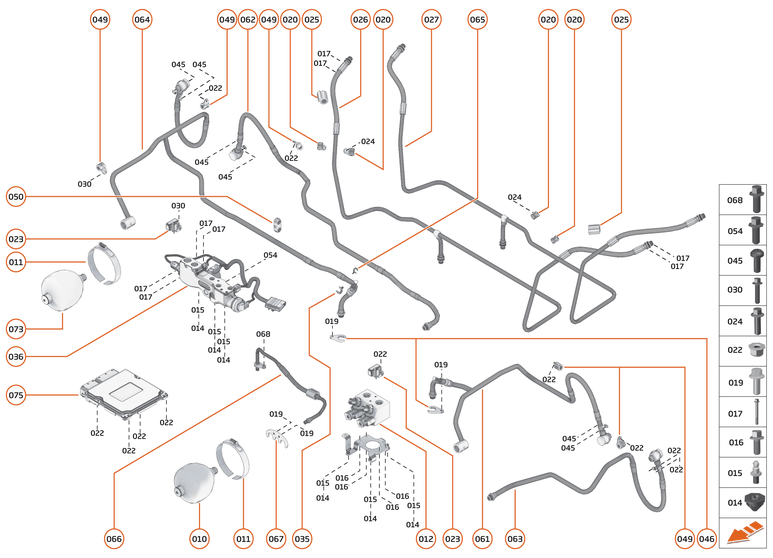

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	14BA263CP	O-RING - VITON - BLACK - 224000NT	14BA263CP O-RING - VITON - BLACK - 224000NT Row ID: ID__14BA263CP_ContPgHS;	-	2	Enquire
010	15BA234CP	ACCUMULATOR LH FR/RR - SUSPENSION - FR (EX.P23) AND RR (INC.P23) - LH	15BA234CP ACCUMULATOR LH FR/RR - SUSPENSION - FR (EX.P23) AND RR (INC.P23) - LH Row ID: ID_ECAR0801_15BA234CP_ContPgHS;	-	1	Enquire
011	00RB221	CLAMP - HOSE - 90-110	00RB221 CLAMP - HOSE - 90-110 Row ID: ID_ECAR0802_00RB221_ContPgHS;	-	2	Enquire
012	15BA022CP	HOUSING - KINETIC DAMPER - MAPMU - FRONT	15BA022CP HOUSING - KINETIC DAMPER - MAPMU - FRONT Row ID: ID_ECAR0803_15BA022CP_ContPgHS;	-	1	Enquire
013	15BA070CP	BRACKET - APMU - FRONT	15BA070CP BRACKET - APMU - FRONT Row ID: ID_ECAR0804_15BA070CP_ContPgHS;	-	1	Enquire
014	00RB187	CLIP - SNAPLOC - 14X7	00RB187 CLIP - SNAPLOC - 14X7 Row ID: ID_XXXXXXZZ_00RB187_ContPgHS;	-	6	Enquire
015	00RA585	STUD BALL - M6X9	00RA585 STUD BALL - M6X9 Row ID: ID_XXXXXXZV_00RA585_ContPgHS;	-	6	Enquire
016	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID_XXXXXXZV_00RA087_ContPgHS;	-	4	Enquire
017	00RA201	BOLT - M5X0.8X30 - HEX	00RA201 BOLT - M5X0.8X30 - HEX Row ID: ID_XXXXXXZV_00RA201_ContPgHS;	-	8	Enquire
019	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID_EAAF0366_00RA313_ContPgHS;	-	4	Enquire
020	00RB127	P-CLIP - 12/13 - EPDM	00RB127 P-CLIP - 12/13 - EPDM Row ID: ID_XXXXXXZY_00RB127_ContPgHS;	-	4	Enquire
022	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_XXXXXXZV_00RA055_ContPgHS;	-	9	Enquire
023	11M0252CP	Sensor - Accelerometer	11M0252CP Sensor - Accelerometer Row ID: ID_ECAR0806_11M0252CP_ContPgHS;	-	2	Enquire
024	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID_XXXXXXZV_00RA120_ContPgHS;	-	2	Enquire
025	00RA357	PIPE PROTECTOR	00RA357 PIPE PROTECTOR Row ID: ID_XXXXXXZY_00RA357_ContPgHS;	-	2	Enquire
026	14B0672CP	PIPE - SUSPENSION FRONT - LATERAL - REBOUND	14B0672CP PIPE - SUSPENSION FRONT - LATERAL - REBOUND Row ID: ID_ECAR0807_14B0672CP_ContPgHS;	-	1	Enquire
027	14B0671CP	PIPE - SUSPENSION FRONT - LATERAL - COMPRESSION	14B0671CP PIPE - SUSPENSION FRONT - LATERAL - COMPRESSION Row ID: ID_ECAR0808_14B0671CP_ContPgHS;	-	1	Enquire
030	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID_XXXXXXZV_00RA083_ContPgHS;	-	2	Enquire
036	15BA027CP	AUTOMATIC - PRESSURE MONITORING UNIT	15BA027CP AUTOMATIC - PRESSURE MONITORING UNIT Row ID: ID_ECAR0814_15BA027CP_ContPgHS;	-	1	Enquire
045	00RA099	SCREW - M4X25 - HEX	00RA099 SCREW - M4X25 - HEX Row ID: ID_ECAR0821_00RA099_ContPgHS;	-	8	Enquire
046	15BA151CP	KEEP PLATE - 14MM	15BA151CP KEEP PLATE - 14MM Row ID: ID_ECAR0822_15BA151CP_ContPgHS;	-	2	Enquire
049	00RB191	P-CLIP - 14X15	00RB191 P-CLIP - 14X15 Superseded parts: 00RB003; Row ID: ID_ECAR0825_00RB191_ContPgHS;	-	5	Enquire
050	00RB131	HOSE SEPERATOR PHS6	00RB131 HOSE SEPERATOR PHS6 Row ID: ID_ECAR0826_00RB131_ContPgHS;	-	1	Enquire
054	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID_XXXXXXZV_00RA002_ContPgHS;	-	1	Enquire
061	15BA016CP	PIPE - KINETIC DAMPER BUMP - FRONT LH - FR	15BA016CP PIPE - KINETIC DAMPER BUMP - FRONT LH - FR Row ID: ID_ECAR0835_15BA016CP_ContPgHS;	-	1	Enquire
062	15BA017CP	PIPE - KINETIC DAMPER BUMP - FRONT RH - FR	15BA017CP PIPE - KINETIC DAMPER BUMP - FRONT RH - FR Row ID: ID_ECAR0836_15BA017CP_ContPgHS;	-	1	Enquire
063	15BA018CP	PIPE - KINETIC DAMPER REBOUND - FRONT LH - FR	15BA018CP PIPE - KINETIC DAMPER REBOUND - FRONT LH - FR Row ID: ID_ECAR0837_15BA018CP_ContPgHS;	-	1	Enquire
064	15BA019CP	PIPE - KINETIC DAMPER REBOUND - FRONT RH - FR	15BA019CP PIPE - KINETIC DAMPER REBOUND - FRONT RH - FR Row ID: ID_ECAR0838_15BA019CP_ContPgHS;	-	1	Enquire
065	00RB018	CLIP - 11-13MM - MALE	00RB018 CLIP - 11-13MM - MALE Row ID: ID_XXXXXXZZ_00RB018_ContPgHS;	-	1	Enquire
066	15BA020CP	PIPE - KINETIC DAMPER FEED - FRONT	15BA020CP PIPE - KINETIC DAMPER FEED - FRONT Row ID: ID_ECAR0839_15BA020CP_ContPgHS;	-	1	Enquire
067	15BA084CP	KEEP PLATE - MICRO APMU - FRONT	15BA084CP KEEP PLATE - MICRO APMU - FRONT Row ID: ID_ECAR0840_15BA084CP_ContPgHS;	-	1	Enquire
068	00RA484	BOLT - HEX HEAD - FLANGED - M8X20	00RA484 BOLT - HEX HEAD - FLANGED - M8X20 Row ID: ID_XXXXXXZV_00RA484_ContPgHS;	-	1	Enquire
069	00RA366	PIPE PROTECTOR - 13MM ID	00RA366 PIPE PROTECTOR - 13MM ID Row ID: ID_XXXXXXZY_00RA366_ContPgHS;	-	1	Enquire
073	15BA235CP	KDAMP-CARBON-ACCUM-BUMP-RR-LH	15BA235CP KDAMP-CARBON-ACCUM-BUMP-RR-LH Row ID: ID_ECAR0844_15BA235CP_ContPgHS;	-	1	Enquire
075	15BA100CP	CONTROL UNIT - CHASSIS	15BA100CP CONTROL UNIT - CHASSIS Row ID: ID_ECAR0846_15BA100CP_ContPgHS;	-	1	Enquire
