17 - SUSPENSION - 17.3 - TRANSVERSE LINKS FRONT of McLaren McLaren Ultimate Series McLaren Senna

View All

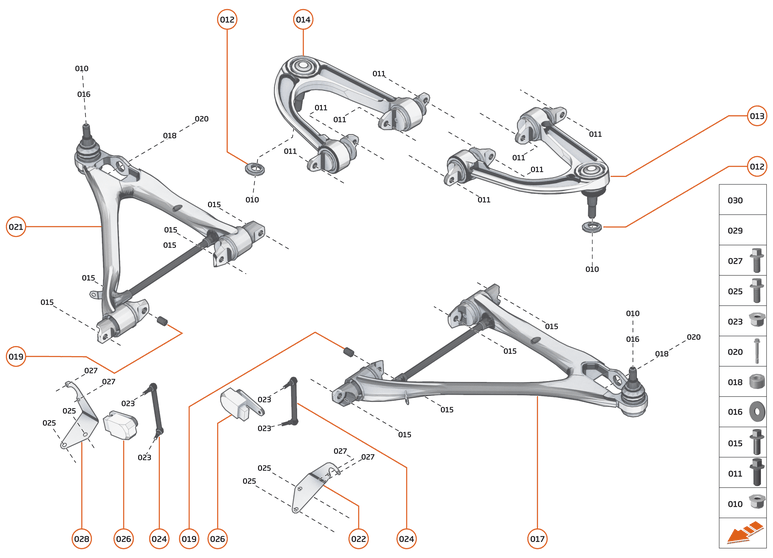

McLaren Ultimate Series McLaren Senna - 17 - SUSPENSION - 17.3 - TRANSVERSE LINKS FRONT

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA229	NUT - M14X1.5 - LOCKED HEX	00RA229 NUT - M14X1.5 - LOCKED HEX Row ID: ID_XXXXXXZV_00RA229_ContPgHS;	-	4	Enquire
011	00RA457	SCREW - M10X30-10.9 - HEX	00RA457 SCREW - M10X30-10.9 - HEX Row ID: ID_XXXXXXZV_00RA457_ContPgHS;	-	8	Enquire
012	11B0739CP	WASHER - CAMBER ADJUSTMENT	11B0739CP WASHER - CAMBER ADJUSTMENT Row ID: ID_ECAR0301_11B0739CP_ContPgHS;	-	2	Enquire
013	15BA145CP	WISHBONE - FRONT - UPPER - LH	15BA145CP WISHBONE - FRONT - UPPER - LH Row ID: ID_ECAR0302_15BA145CP_ContPgHS;	-	1	Enquire
014	15BA147CP	WISHBONE - FRONT - UPPER - RH	15BA147CP WISHBONE - FRONT - UPPER - RH Row ID: ID_ECAR0303_15BA147CP_ContPgHS;	-	1	Enquire
015	00RX031	BOLT - M10X35 - HEX HEAD - FLANGE	00RX031 BOLT - M10X35 - HEX HEAD - FLANGE Row ID: ID_ECAR0304_00RX031_ContPgHS;	-	8	Enquire
016	11B0320CP	WASHER - DIA 35X3.9X14.5	11B0320CP WASHER - DIA 35X3.9X14.5 Row ID: ID_ECAR0305_11B0320CP_ContPgHS;	-	2	Enquire
017	15BA249CP	WISHBONE - FRONT - LOWER - LH	15BA249CP WISHBONE - FRONT - LOWER - LH Row ID: ID_ECAR0306_15BA249CP_ContPgHS;	-	1	Enquire
018	12B0494CP	SPACER - DIA 20	12B0494CP SPACER - DIA 20 Row ID: ID_ECAR0307_12B0494CP_ContPgHS;	-	2	Enquire
019	12B0507CP	DOWEL - RING - SUSPENSION BUSH	12B0507CP DOWEL - RING - SUSPENSION BUSH Row ID: ID_ECAR0308_12B0507CP_ContPgHS;	-	2	Enquire
020	12B0761CP	BOLT - M10X72 - HEX - FLANGE	12B0761CP BOLT - M10X72 - HEX - FLANGE Row ID: ID_ECAR0309_12B0761CP_ContPgHS;	-	2	Enquire
021	15BA250CP	WISHBONE - FRONT - LOWER - RH	15BA250CP WISHBONE - FRONT - LOWER - RH Row ID: ID_ECAR0310_15BA250CP_ContPgHS;	-	1	Enquire
022	15BA194CP	BRACKET - SENSOR - DISPLACEMENT - FRONT - LH - 675LT	15BA194CP BRACKET - SENSOR - DISPLACEMENT - FRONT - LH - 675LT Row ID: ID_ECAR0311_15BA194CP_ContPgHS;	-	1	Enquire
023	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_XXXXXXZV_00RA055_ContPgHS;	-	4	Enquire
024	12B0269CP	LINK ROD - SENSOR - DISPLACEMENT - 92MM	12B0269CP LINK ROD - SENSOR - DISPLACEMENT - 92MM Row ID: ID_ECAR0312_12B0269CP_ContPgHS;	-	2	Enquire
025	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID_XXXXXXZV_00RA087_ContPgHS;	-	4	Enquire
026	11M0253CP	Sensor - Displacement	11M0253CP Sensor - Displacement Row ID: ID_ECAR0313_11M0253CP_ContPgHS;	-	2	Enquire
027	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID_XXXXXXZV_00RA083_ContPgHS;	-	4	Enquire
028	15BA258CP	BRACKET - SENSOR - DISPLACEMENT - FRONT - RH	15BA258CP BRACKET - SENSOR - DISPLACEMENT - FRONT - RH Row ID: ID_ECAR0314_15BA258CP_ContPgHS;	-	1	Enquire
029	11B1552CP	Ball Joint - Gaiter - Kit	11B1552CP Ball Joint - Gaiter - Kit Row ID: ID__11B1552CP_ContPgHS;	-	2	Enquire
030	14BA039CP	BALL JOINT - GAITER - LOWER - KIT	14BA039CP BALL JOINT - GAITER - LOWER - KIT Row ID: ID__14BA039CP_ContPgHS;	-	2	Enquire
