18 - BRAKES - 18.10 - BRAKE PIPES of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 18 - BRAKES - 18.10 - BRAKE PIPES

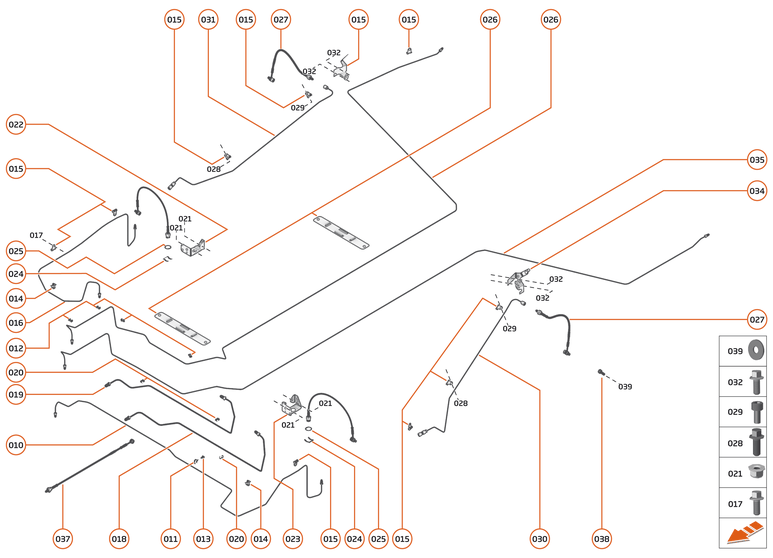

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15CA079CP	BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - LH	15CA079CP BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - LH Row ID: ID_ECAS1001_15CA079CP_ContPgHS;	-	1	Enquire
011	00RB018	CLIP - 11-13MM - MALE	00RB018 CLIP - 11-13MM - MALE Row ID: ID_XXXXXXZZ_00RB018_ContPgHS;	-	1	Enquire
012	00RB134	DOUBLE PIPE CLIP IAC27	00RB134 DOUBLE PIPE CLIP IAC27 Row ID: ID_XXXXXXZZ_00RB134_ContPgHS;	-	4	Enquire
013	00RB168	SWIVEL CLIP - 4.3-5.2 - FEMALE	00RB168 SWIVEL CLIP - 4.3-5.2 - FEMALE Row ID: ID_XXXXXXZY_00RB168_ContPgHS;	-	1	Enquire
014	00RB180	CLIP - FIRTREE - 23.8X4	00RB180 CLIP - FIRTREE - 23.8X4 Row ID: ID_XXXXXXZZ_00RB180_ContPgHS;	-	2	Enquire
015	00RB063	P CLIP - DIA 6 (M6)	00RB063 P CLIP - DIA 6 (M6) Row ID: ID_XXXXXXZZ_00RB063_ContPgHS;	-	9	Enquire
016	15CA077CP	BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - RH	15CA077CP BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - RH Row ID: ID_ECAS1002_15CA077CP_ContPgHS;	-	1	Enquire
017	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID_XXXXXXZV_00RA083_ContPgHS;	-	1	Enquire
018	15CA097CP	BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - RHD	15CA097CP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - RHD Row ID: ID_ECAS1017_15CA097CP_ContPgHS;	-	1	Enquire
018	15CA116CP	BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - LHD	15CA116CP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - LHD Row ID: ID_ECAS1003_15CA116CP_ContPgHS;	-	1	Enquire
019	15CA099CP	BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - RHD	15CA099CP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - RHD Row ID: ID_ECAS1018_15CA099CP_ContPgHS;	-	1	Enquire
019	15CA114CP	BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - LHD	15CA114CP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - LHD Row ID: ID_ECAS1004_15CA114CP_ContPgHS;	-	1	Enquire
020	00RB043	CLIP-DOUBLE-DIA 6 24	00RB043 CLIP-DOUBLE-DIA 6 24 Row ID: ID_XXXXXXZZ_00RB043_ContPgHS;	-	3	Enquire
021	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_XXXXXXZV_00RA055_ContPgHS;	-	4	Enquire
022	15CA148CP	BRACKET - BRAKE HOSE TO BODY - FRONT - RH	15CA148CP BRACKET - BRAKE HOSE TO BODY - FRONT - RH Row ID: ID_ECAS1005_15CA148CP_ContPgHS;	-	1	Enquire
023	15CA146CP	BRACKET - BRAKE HOSE TO BODY - FRONT - LH	15CA146CP BRACKET - BRAKE HOSE TO BODY - FRONT - LH Row ID: ID_ECAS1006_15CA146CP_ContPgHS;	-	1	Enquire
024	12C0294CP	CLIP - SPRING - HOSE BRACKET	12C0294CP CLIP - SPRING - HOSE BRACKET Row ID: ID_ECAS1007_12C0294CP_ContPgHS;	-	2	Enquire
025	12C0296CP	WASHER - SPRING CLIP	12C0296CP WASHER - SPRING CLIP Row ID: ID_ECAS1008_12C0296CP_ContPgHS;	-	2	Enquire
026	11C0237CP	CLAMP - CHASSIS TUNNEL	11C0237CP CLAMP - CHASSIS TUNNEL Row ID: ID_ECAS1009_11C0237CP_ContPgHS;	-	2	Enquire
027	13C0188CP	BRAKE HOSE - CARBON - REAR	13C0188CP BRAKE HOSE - CARBON - REAR Row ID: ID_ECAS1010_13C0188CP_ContPgHS;	-	2	Enquire
028	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID_EAAF0366_00RA313_ContPgHS;	-	2	Enquire
029	00RA580	SCREW - M6X1X16	00RA580 SCREW - M6X1X16 Row ID: ID_XXXXXXZV_00RA580_ContPgHS;	-	2	Enquire
030	14C0065CP	BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - LH	14C0065CP BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - LH Row ID: ID_ECAS1011_14C0065CP_ContPgHS;	-	1	Enquire
031	14C0067CP	BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - RH	14C0067CP BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - RH Row ID: ID_ECAS1012_14C0067CP_ContPgHS;	-	1	Enquire
032	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID_XXXXXXZV_00RX001_ContPgHS;	-	4	Enquire
033	14CA077CP	BRACKET - BRAKE PIPE - REAR - RH	14CA077CP BRACKET - BRAKE PIPE - REAR - RH Row ID: ID_ECAS1013_14CA077CP_ContPgHS;	-	1	Enquire
034	14CA078CP	BRACKET - BRAKE PIPE - REAR - LH	14CA078CP BRACKET - BRAKE PIPE - REAR - LH Row ID: ID_ECAS1014_14CA078CP_ContPgHS;	-	1	Enquire
035	14C0007CP	BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - LH	14C0007CP BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - LH Row ID: ID_ECAS1015_14C0007CP_ContPgHS;	-	1	Enquire
036	14C0165CP	BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - RH	14C0165CP BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - RH Row ID: ID_ECAS1016_14C0165CP_ContPgHS;	-	1	Enquire
037	11C0680CP	BRAKE HOSE - IRON - CARBON - FRONT	11C0680CP BRAKE HOSE - IRON - CARBON - FRONT Row ID: ID_CDCC0401_11C0680CP_ContPgHS;	-	2	Enquire
038	11C0501CP	BRAKE HOSE BANJO BOLT INC WASHERS	11C0501CP BRAKE HOSE BANJO BOLT INC WASHERS Row ID: ID__11C0501CP_ContPgHS;	-	1	Enquire
039	11C0592CP	WASHER - COPPER - BRAKE HOSE	11C0592CP WASHER - COPPER - BRAKE HOSE Row ID: ID__11C0592CP_ContPgHS;	-	1	Enquire
