34 - Engine - 34.6 - Fuel Rail & Injectors

McLaren McLaren 720S Coupe

Find Your Part

McLaren McLaren 720S Coupe - 34 - ENGINE - 34.6 - FUEL RAIL & INJECTORS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14F0002CP LINK PIPE - FUEL RAIL - INC. O-RINGS $326.74 To Order
Photo Part No Description Price (each) Stock
14F0625CP SEAL - O-RING - 7.8X1.9 $2.12 To Order
Photo Part No Description Price (each) Stock
11F1787CP BOLT - M6X12 - HEX $14.71 To Order
Photo Part No Description Price (each) Stock
14F0737CP SCREW - TORX - M6X10 $10.66 To Order
Photo Part No Description Price (each) Stock
14FA006CP FUEL RAIL - LH $821.25 To Order
Photo Part No Description Price (each) Stock
14FA007CP FUEL RAIL - RH $821.25 To Order
Photo Part No Description Price (each) Stock
14FA039CP FUEL RAIL DAMPER $105.34 To Order
Photo Part No Description Price (each) Stock
14FA038CP CLIP - FUEL RAIL DAMPER $18.29 To Order
Photo Part No Description Price (each) Stock
14F0842CP NVH - FUEL RAIL - LH $89.50 To Order
Photo Part No Description Price (each) Stock
14F0843CP NVH - FUEL RAIL - RH $89.50 To Order
Photo Part No Description Price (each) Stock
11F1792CP Bolt - M6x16 - Engine $12.08 To Order
Photo Part No Description Price (each) Stock
14F0137CP INJECTOR - ENGINE FUEL RAIL $124.42 To Order
Photo Part No Description Price (each) Stock
14F0400CP CLIP - INJECTOR $11.06 To Order
Photo Part No Description Price (each) Stock
14FA148CP O-RING KIT - FUEL INJECTOR - COMPLETE RAIL KIT $352.12 To Order
Photo Part No Description Price (each) Stock
14FA003CP ASSY FUEL RAIL Enquire To Order
Photo Part No Description Price (each) Stock
11F2029CP CLIP - RAYMOND - 2WAY - 13493 $8.05 To Order
Photo Part No Description Price (each) Stock
13F0872CP FUEL PRESSURE AND TEMP SENSOR $145.09 To Order
View All

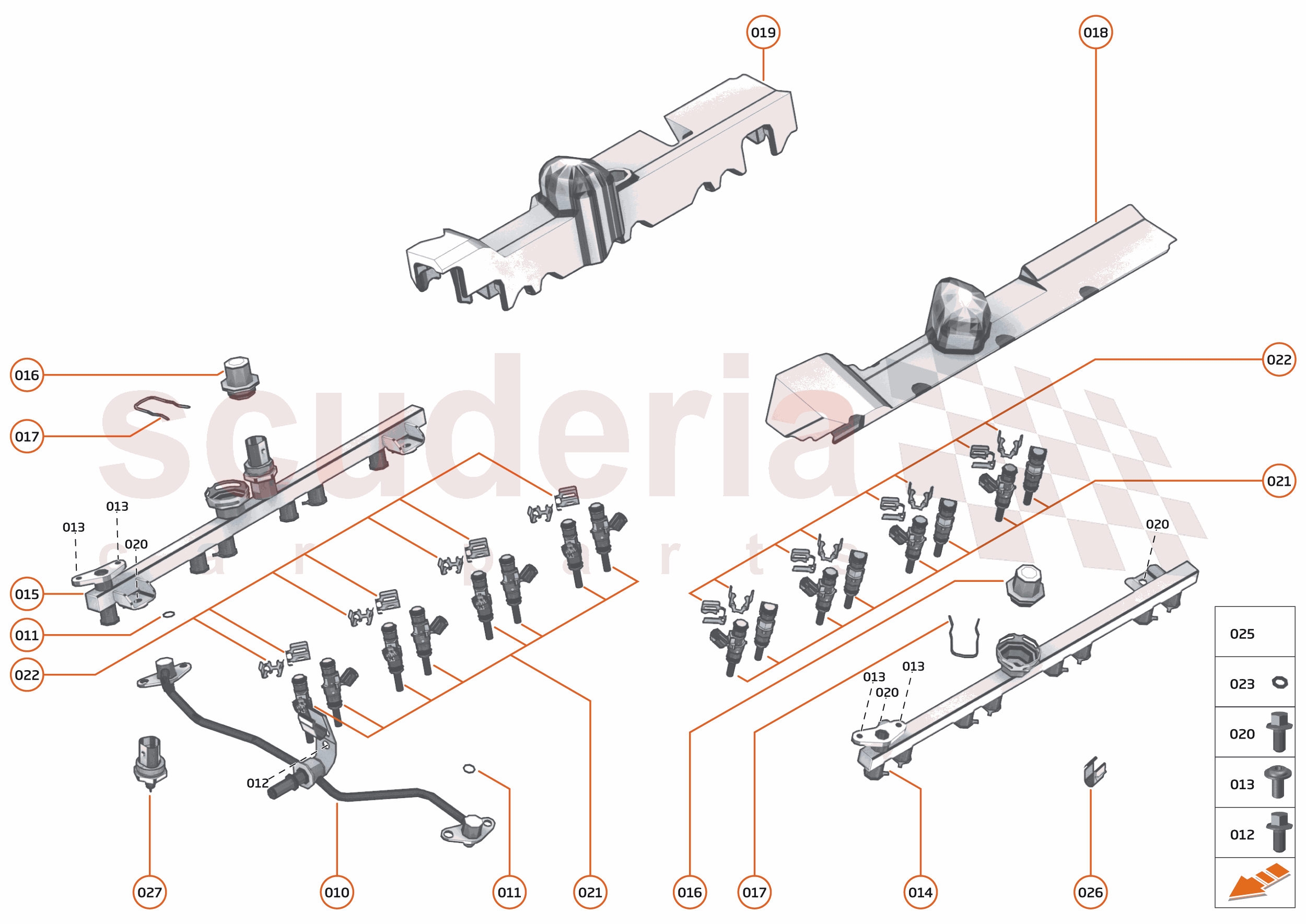

34 - ENGINE - 34.6 - FUEL RAIL & INJECTORS of McLaren McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14F0002CP
LINK PIPE - FUEL RAIL - INC. O-RINGS
Row ID: ID_DEFA0176_14F0002CP_ContPgHS; Resolution: Available; 		$326.74 1
011 14F0625CP
SEAL - O-RING - 7.8X1.9
Row ID: ID_DEFA0177_14F0625CP_ContPgHS; Resolution: Available; 		$2.12 2
012 11F1787CP
BOLT - M6X12 - HEX
Row ID: ID_DEFA0178_11F1787CP_ContPgHS; Resolution: Available; 		$14.71 1
013 14F0737CP
SCREW - TORX - M6X10
Row ID: ID_DEFA0179_14F0737CP_ContPgHS; Resolution: Available; 		$10.66 4
014 14FA006CP
FUEL RAIL - LH
Row ID: ID_DEFA0180_14FA006CP_ContPgHS; Resolution: Available; 		$821.25 1
015 14FA007CP
FUEL RAIL - RH
Row ID: ID_DEFA0181_14FA007CP_ContPgHS; Resolution: Available; 		$821.25 1
016 14FA039CP
FUEL RAIL DAMPER
Row ID: ID_DEFA0182_14FA039CP_ContPgHS; Resolution: Available; 		$105.34 2
017 14FA038CP
CLIP - FUEL RAIL DAMPER
Row ID: ID_DEFA0183_14FA038CP_ContPgHS; Resolution: Available; 		$18.29 2
018 14F0842CP
NVH - FUEL RAIL - LH
Row ID: ID_DEFA0184_14F0842CP_ContPgHS; Resolution: Available; 		$89.50 1
019 14F0843CP
NVH - FUEL RAIL - RH
Row ID: ID_DEFA0185_14F0843CP_ContPgHS; Resolution: Available; 		$89.50 1
020 11F1792CP
Bolt - M6x16 - Engine
Row ID: ID_DEFA0115_11F1792CP_ContPgHS; Resolution: Available; 		$12.08 4
021 14F0137CP
INJECTOR - ENGINE FUEL RAIL
Row ID: ID_DEFA0186_14F0137CP_ContPgHS; Resolution: Available; 		$124.42 16
022 14F0400CP
CLIP - INJECTOR
Row ID: ID_DEFA0187_14F0400CP_ContPgHS; Resolution: Available; 		$11.06 16
023 14FA148CP
O-RING KIT - FUEL INJECTOR - COMPLETE RAIL KIT
Row ID: ID_DEFA0188_14FA148CP_ContPgHS; Resolution: Available; 		$352.12 1
024 13F0517CP
SENSOR - FUEL PRESSURE & TEMPERATURE
Row ID: ID_DEFA01F8_13F0517CP_ContPgHS; Resolution: Available; 		$115.69 1
025 14FA003CP
ASSY FUEL RAIL
Row ID: ID__14FA003CP_ContPgHS; Resolution: Available; 		- 1 Enquire
026 11F2029CP
CLIP - RAYMOND - 2WAY - 13493
Row ID: ID__11F2029CP_ContPgHS; Resolution: Available; 		$8.05 1
027 13F0872CP
FUEL PRESSURE AND TEMP SENSOR
Row ID: ID__13F0872CP_ContPgHS; Resolution: Available; 		$145.09 1
