McLaren McLaren 720S Coupe - 37 - ENGINE COOLING SYSTEM - 37.1 - ENGINE WATER PUMP & WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F2418CP Sensor - Engine - Head Temp $82.15 To Order
Photo Part No Description Price (each) Stock
14FA182CP Water Pump - Engine $1,602.02 To Order
Photo Part No Description Price (each) Stock
11F0686CP Gasket - Engine Water Pump $28.24 To Order
Photo Part No Description Price (each) Stock
11F2434CP Gasket - Water Pump Cover - Engine $14.53 To Order
Photo Part No Description Price (each) Stock
11F1784CP Bolt - M6x80 - Engine $17.38 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11F0802CP Heater Return Stub - Engine - Water Pump $118.02 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
13F0866CP Coolant Hose - Feed - Clutch Cooler $114.20 To Order
Photo Part No Description Price (each) Stock
11F1859CP Oetiker Clip - Engine - 24.1 $11.31 To Order
Photo Part No Description Price (each) Stock
11F1791CP SCREW - HEX HEAD - FLANGE M6X10 $8.70 To Order
Photo Part No Description Price (each) Stock
13FA050CP Thermostat Assy - Engine - inc. Gasket $240.35 To Order
Photo Part No Description Price (each) Stock
11F1783CP Bolt - M8x30 - Engine - Thermostat $13.44 To Order
Photo Part No Description Price (each) Stock
11F1132CP O-ring - Radiator Hose - Inboard - Engine $28.38 To Order
Photo Part No Description Price (each) Stock
14F0654CP TOP HOSE - ENGINE RADIATOR - LH $137.32 To Order
Photo Part No Description Price (each) Stock
11F0704CP Support - Engine Coolant Top Hose - Set $24.41 To Order
Photo Part No Description Price (each) Stock
11F1782CP BOLT - M6X10 - HEX $14.71 To Order
Photo Part No Description Price (each) Stock
14F0573CP ASSY - HOSE - COOLANT DEGAS - ENGINE $128.60 To Order
Photo Part No Description Price (each) Stock
11F1863CP OETIKER CLIP - 14.1-16.6 $7.64 To Order
Photo Part No Description Price (each) Stock
14F0414CP PLUG IN CLIP - RAYMOND - 15MM $6.52 To Order
Photo Part No Description Price (each) Stock
14F0636CP ASSY - HOSE - COOLANT DEGAS - VEHICLE $61.02 To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
00RB093 Oetiker Clip - 16.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RB204 CLAMP - SPRING BAND - 27X12 Enquire To Order
Photo Part No Description Price (each) Stock
14F0569CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH $101.41 To Order
Photo Part No Description Price (each) Stock
12F0684CP BANJO BOLT - M14X1.5 $35.63 To Order
Photo Part No Description Price (each) Stock
12F0685CP WASHER - SEALING - M14 $9.39 To Order
Photo Part No Description Price (each) Stock
14F0562CP PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - RH Enquire To Order
Photo Part No Description Price (each) Stock
14F0568CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH $101.41 To Order
Photo Part No Description Price (each) Stock
14F0561CP PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - LH Enquire To Order
Photo Part No Description Price (each) Stock
13FA050CP Thermostat Assy - Engine - inc. Gasket $240.35 To Order
Photo Part No Description Price (each) Stock
13F0828CP ASSY PIPE STUB TURBO WTR FEED RH $48.35 To Order
Photo Part No Description Price (each) Stock
13F0829CP ASSY PIPE STUB TURBO WTR FEED LH $39.12 To Order
Photo Part No Description Price (each) Stock
13F0831CP Pipe - Turbocharger Water Return - Upper - RH Enquire To Order
Photo Part No Description Price (each) Stock
11F2167CP PIPE - HEATER FEED STUB $85.44 To Order
View All

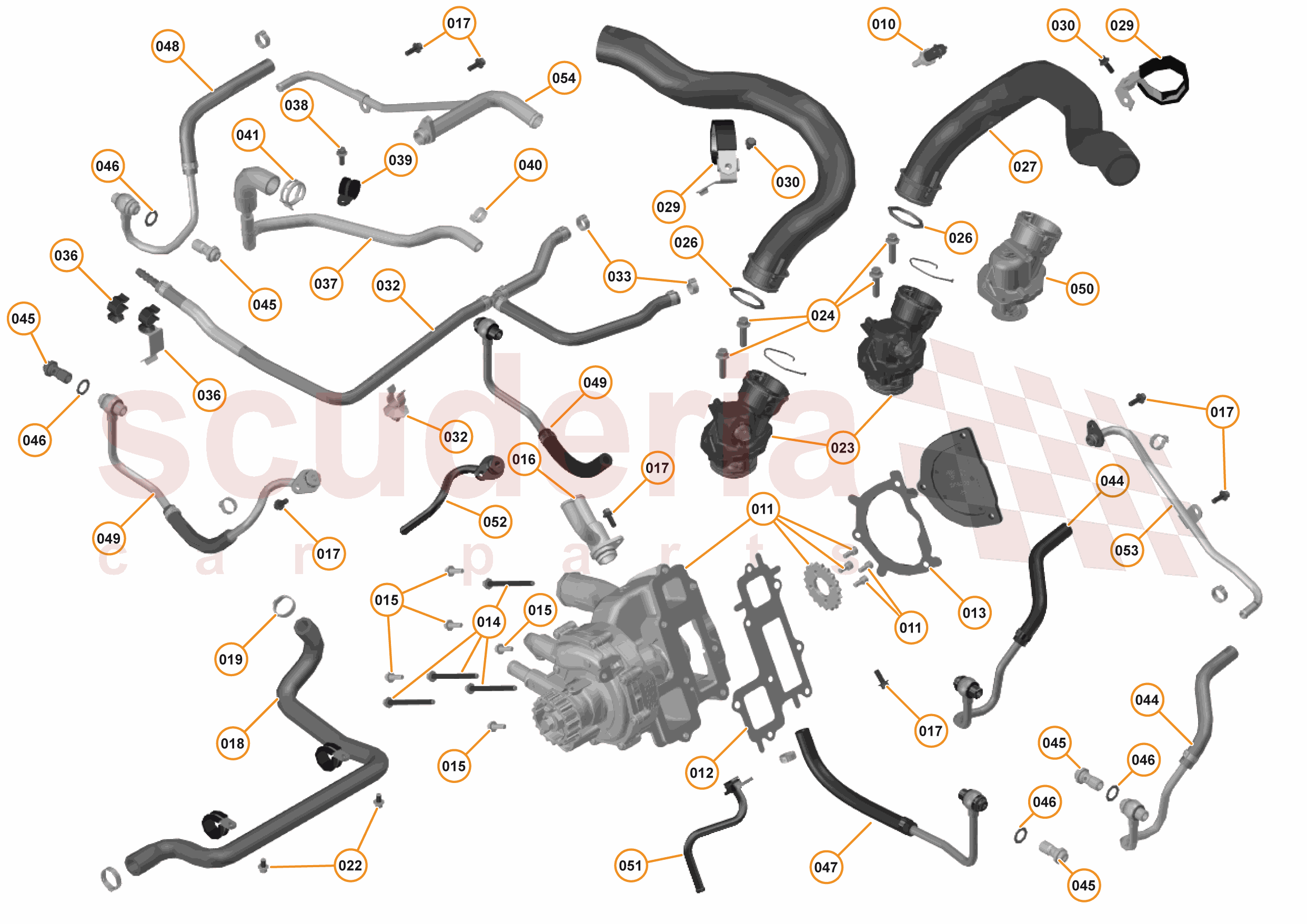

37 - ENGINE COOLING SYSTEM - 37.1 - ENGINE WATER PUMP & WATER CIRCUIT of McLaren McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F2418CP
Sensor - Engine - Head Temp
Row ID: ID_DEFD0101_11F2418CP_ContPgHS; Resolution: Available; 		$82.15 1
011 14FA182CP
Water Pump - Engine
Row ID: ID_DEFD0102_14FA182CP_ContPgHS; Resolution: Available; 		$1,602.02 1
012 11F0686CP
Gasket - Engine Water Pump
Row ID: ID_DEFD0103_11F0686CP_ContPgHS; Resolution: Available; 		$28.24 1
013 11F2434CP
Gasket - Water Pump Cover - Engine
Row ID: ID_DEFD0104_11F2434CP_ContPgHS; Resolution: Available; 		$14.53 1
014 11F1784CP
Bolt - M6x80 - Engine
Row ID: ID_DEFD0105_11F1784CP_ContPgHS; Resolution: Available; 		$17.38 4
015 11F1793CP
BOLT - M6X20 - HEX
Row ID: ID_DEFD0106_11F1793CP_ContPgHS; Resolution: Available; 		$10.14 8
016 11F0802CP
Heater Return Stub - Engine - Water Pump
Row ID: ID_DEFD0107_11F0802CP_ContPgHS; Resolution: Available; 		$118.02 1
017 11F0822CP
Bolt - M6x16 - Engine
Row ID: ID_DEFD0108_11F0822CP_ContPgHS; Resolution: Available; 		- 7 Enquire
018 13F0866CP
Coolant Hose - Feed - Clutch Cooler
Row ID: ID_DEFD0109_13F0866CP_ContPgHS; Resolution: Available; 		$114.20 1
019 11F1859CP
Oetiker Clip - Engine - 24.1
Row ID: ID_DEFD0110_11F1859CP_ContPgHS; Resolution: Available; 		$11.31 1
022 11F1791CP
SCREW - HEX HEAD - FLANGE M6X10
Row ID: ID_DEFD0113_11F1791CP_ContPgHS; Resolution: Available; 		$8.70 2
023 13FA050CP
Thermostat Assy - Engine - inc. Gasket
Row ID: ID_DEFD0114_13FA050CP_ContPgHS; Resolution: Available; 		$240.35 2
024 11F1783CP
Bolt - M8x30 - Engine - Thermostat
Row ID: ID_DEFD0115_11F1783CP_ContPgHS; Resolution: Available; 		$13.44 4
026 11F1132CP
O-ring - Radiator Hose - Inboard - Engine
Row ID: ID_DEFD0117_11F1132CP_ContPgHS; Resolution: Available; 		$28.38 2
027 14F0654CP
TOP HOSE - ENGINE RADIATOR - LH
Row ID: ID_DEFD0118_14F0654CP_ContPgHS; Resolution: Available; 		$137.32 1
028 14F0655CP
TOP HOSE - ENGINE RADIATOR - RH
Row ID: ID_DEFD0119_14F0655CP_ContPgHS; Resolution: Available; 		$137.32 1
029 11F0704CP
Support - Engine Coolant Top Hose - Set
Row ID: ID_DEFD0120_11F0704CP_ContPgHS; Resolution: Available; 		$24.41 1
030 11F1782CP
BOLT - M6X10 - HEX
Row ID: ID_DEFD0121_11F1782CP_ContPgHS; Resolution: Available; 		$14.71 2
032 14F0573CP
ASSY - HOSE - COOLANT DEGAS - ENGINE
Row ID: ID_DEFD0123_14F0573CP_ContPgHS; Resolution: Available; 		$128.60 1
033 11F1863CP
OETIKER CLIP - 14.1-16.6
Row ID: ID_DEFD0124_11F1863CP_ContPgHS; Resolution: Available; 		$7.64 2
035 14F0411CP
BRACKET - DEGAS HOSE
Row ID: ID_DEFD0126_14F0411CP_ContPgHS; Resolution: Available; 		$24.00 1
036 14F0414CP
PLUG IN CLIP - RAYMOND - 15MM
Row ID: ID_DEFD0127_14F0414CP_ContPgHS; Resolution: Available; 		$6.52 1
037 14F0636CP
ASSY - HOSE - COOLANT DEGAS - VEHICLE
Row ID: ID_DEFD0128_14F0636CP_ContPgHS; Resolution: Available; 		$61.02 1
038 00RA556
BOLT - HEX - FLANGED - M6X16
Row ID: ID_XXXXXXZV_00RA556_ContPgHS; Resolution: Available; 		- 1 Enquire
039 00RB005
P CLIP - DIA 16
Row ID: ID_XXXXXXZY_00RB005_ContPgHS; Resolution: Available; 		- 1 Enquire
040 00RB093
Oetiker Clip - 16.6
Row ID: ID_XXXXXXZX_00RB093_ContPgHS; Resolution: Available; 		- 1 Enquire
041 00RB204
CLAMP - SPRING BAND - 27X12
Row ID: ID_XXXXXXZX_00RB204_ContPgHS; Resolution: Available; 		- 1 Enquire
044 14F0569CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH
Row ID: ID_DEFD0130_14F0569CP_ContPgHS; Resolution: Available; 		$101.41 1
045 12F0684CP
BANJO BOLT - M14X1.5
Row ID: ID_DEFD0131_12F0684CP_ContPgHS; Resolution: Available; 		$35.63 4
046 12F0685CP
WASHER - SEALING - M14
Row ID: ID_DEFD0132_12F0685CP_ContPgHS; Resolution: Available; 		$9.39 4
047 14F0562CP
PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - RH
Row ID: ID_DEFD0133_14F0562CP_ContPgHS; Resolution: Available; 		- 1 Enquire
048 14F0568CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH
Row ID: ID_DEFD0134_14F0568CP_ContPgHS; Resolution: Available; 		$101.41 1
049 14F0561CP
PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - LH
Row ID: ID_DEFD0135_14F0561CP_ContPgHS; Resolution: Available; 		- 1 Enquire
050 13FA050CP
Thermostat Assy - Engine - inc. Gasket
Row ID: ID__13FA050CP_ContPgHS; Resolution: Available; 		$240.35 1
051 13F0828CP
ASSY PIPE STUB TURBO WTR FEED RH
Row ID: ID__13F0828CP_ContPgHS; Resolution: Available; 		$48.35 1
052 13F0829CP
ASSY PIPE STUB TURBO WTR FEED LH
Row ID: ID__13F0829CP_ContPgHS; Resolution: Available; 		$39.12 1
053 13F0831CP
Pipe - Turbocharger Water Return - Upper - RH
Row ID: ID__13F0831CP_ContPgHS; Resolution: Available; 		- 1 Enquire
054 11F2167CP
PIPE - HEATER FEED STUB
Row ID: ID__11F2167CP_ContPgHS; Resolution: Available; 		$85.44 1
