34 - Engine - 34.5 - Front Cover, Timing Gear & Crankshaft Damper

McLaren McLaren 720S Coupe

Find Your Part

McLaren McLaren 720S Coupe - 34 - ENGINE - 34.5 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14F0855CP NVH - FRONT COVER $192.58 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14F0851CP Front Cover - Engine - inc Perimeter Seal - Not Inc Crank Seal $377.69 To Order
Photo Part No Description Price (each) Stock
11F1776CP Bolt - M6x30 - Engine $9.55 To Order
Photo Part No Description Price (each) Stock
11F1904CP NUT - M6 $4.38 To Order
Photo Part No Description Price (each) Stock
11F1393CP Seal - Engine - Front Cover Perimeter $50.76 To Order
Photo Part No Description Price (each) Stock
11F2579CP SEAL - CRANK - FRONT $101.53 To Order
Photo Part No Description Price (each) Stock
11F0977CP Cover - Cylinder Head Front - LH - Engine $138.00 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11F0978CP Cover - Cylinder Head Front - RH - Engine $138.00 To Order
Photo Part No Description Price (each) Stock
11F0722CP Chain Drive Kit - Engine - Oil Pump $198.55 To Order
Photo Part No Description Price (each) Stock
11F0723CP Camshaft Drive Kit - Engine $1,210.89 To Order
Photo Part No Description Price (each) Stock
11F0721CP Chain Drive Kit - Engine - Water Pump $235.87 To Order
Photo Part No Description Price (each) Stock
11F0708CP Damper - Engine Crankshaft $582.21 To Order
Photo Part No Description Price (each) Stock
11F0816CP Bolt Set - M8x20 - Engine - Crankshaft Damper $54.00 To Order
Photo Part No Description Price (each) Stock
11F2344CP Seal - Engine Crank - Rear $92.16 To Order
View All

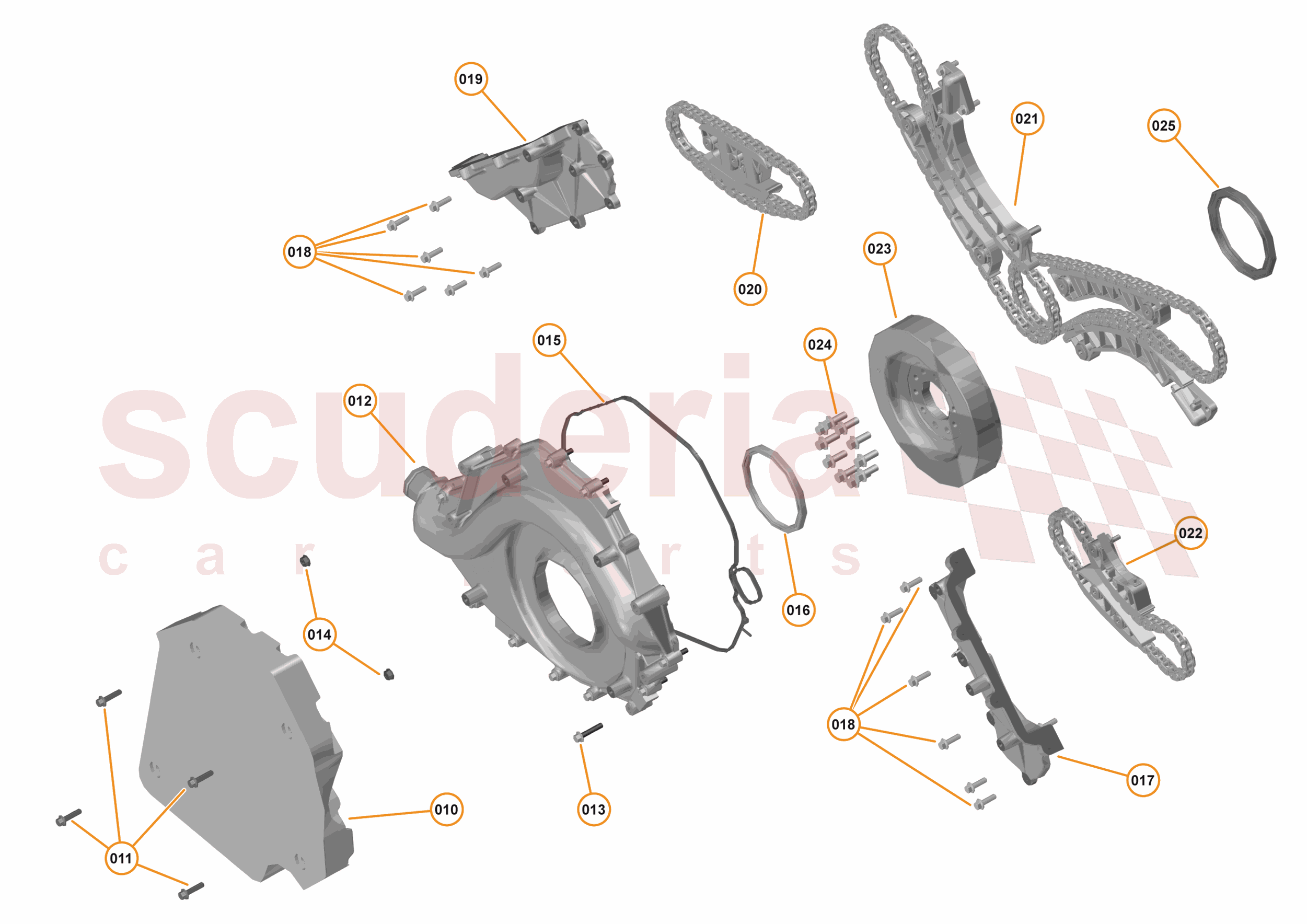

34 - ENGINE - 34.5 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER of McLaren McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14F0855CP
NVH - FRONT COVER
Row ID: ID_DEFA0162_14F0855CP_ContPgHS; Resolution: Available; 		$192.58 1
011 00RA120
SCREW - M6X25 - HEX
Row ID: ID_XXXXXXZV_00RA120_ContPgHS; Resolution: Available; 		- 4 Enquire
012 14F0851CP
Front Cover - Engine - inc Perimeter Seal - Not Inc Crank Seal
Row ID: ID_DEFA0163_14F0851CP_ContPgHS; Resolution: Available; 		$377.69 1
013 11F1776CP
Bolt - M6x30 - Engine
Row ID: ID_DEFA0106_11F1776CP_ContPgHS; Resolution: Available; 		$9.55 1
014 11F1904CP
NUT - M6
Row ID: ID_DEFA0164_11F1904CP_ContPgHS; Resolution: Available; 		$4.38 2
015 11F1393CP
Seal - Engine - Front Cover Perimeter
Row ID: ID_DEFA0165_11F1393CP_ContPgHS; Resolution: Available; 		$50.76 1
016 11F2579CP
SEAL - CRANK - FRONT
Row ID: ID_DEFA0166_11F2579CP_ContPgHS; Resolution: Available; 		$101.53 1
017 11F0977CP
Cover - Cylinder Head Front - LH - Engine
Row ID: ID_DEFA0167_11F0977CP_ContPgHS; Resolution: Available; 		$138.00 1
018 11F1793CP
BOLT - M6X20 - HEX
Row ID: ID_DEFA0168_11F1793CP_ContPgHS; Resolution: Available; 		$10.14 12
019 11F0978CP
Cover - Cylinder Head Front - RH - Engine
Row ID: ID_DEFA0169_11F0978CP_ContPgHS; Resolution: Available; 		$138.00 1
020 11F0722CP
Chain Drive Kit - Engine - Oil Pump
Row ID: ID_DEFA0170_11F0722CP_ContPgHS; Resolution: Available; 		$198.55 1
021 11F0723CP
Camshaft Drive Kit - Engine
Row ID: ID_DEFA0171_11F0723CP_ContPgHS; Resolution: Available; 		$1,210.89 1
022 11F0721CP
Chain Drive Kit - Engine - Water Pump
Row ID: ID_DEFA0172_11F0721CP_ContPgHS; Resolution: Available; 		$235.87 1
023 11F0708CP
Damper - Engine Crankshaft
Row ID: ID_DEFA0173_11F0708CP_ContPgHS; Resolution: Available; 		$582.21 1
024 11F0816CP
Bolt Set - M8x20 - Engine - Crankshaft Damper
Row ID: ID_DEFA0174_11F0816CP_ContPgHS; Resolution: Available; 		$54.00 1
025 11F2344CP
Seal - Engine Crank - Rear
Row ID: ID_DEFA0175_11F2344CP_ContPgHS; Resolution: Available; 		$92.16 1
