36 - ENGINE OIL SYSTEM - 36.1 - ENGINE OIL TANK of McLaren McLaren McLaren 720S Coupe

View All

McLaren McLaren 720S Coupe - 36 - ENGINE OIL SYSTEM - 36.1 - ENGINE OIL TANK

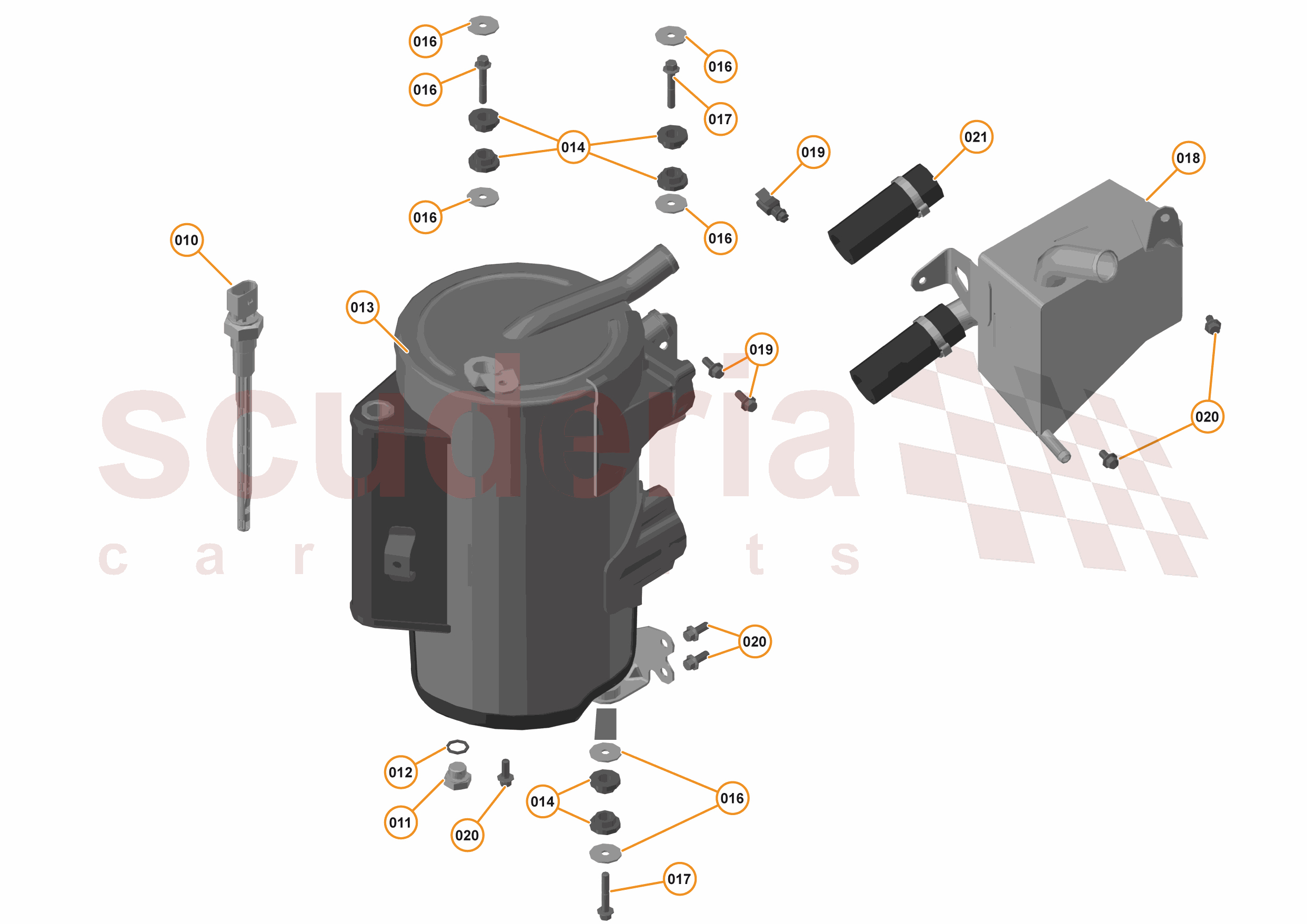

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11M0369CP	SENSOR - ENGINE OIL LEVEL/TEMPERATURE	$334.68	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0021CP	Drain Plug - Oil Tank - M14	$30.44	To Order

Photo	Part No	Description	Price (each)	Stock
	23FA328CP	Washer - Crush - Aluminium - 14x18x1.35	$7.28	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA125CP	OIL TANK - ENGINE	$1,351.96	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0517CP	ANTI VIBRATION MOUNT - OIL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC043	WASHER - M6XOD25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA135CP	OIL SEPARATOR	$390.01	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB053	HOSE CLAMP - 25-40MM - NORMA TORRO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA556	BOLT - HEX - FLANGED - M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA155CP	PIPE - OIL SEPERATOR	$183.62	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11M0369CP	SENSOR - ENGINE OIL LEVEL/TEMPERATURE	11M0369CP SENSOR - ENGINE OIL LEVEL/TEMPERATURE Row ID: ID_DEFC0102_11M0369CP_ContPgHS; Resolution: Available;	$334.68	1
011	11F0021CP	Drain Plug - Oil Tank - M14	11F0021CP Drain Plug - Oil Tank - M14 Row ID: ID_DEFC0103_11F0021CP_ContPgHS; Resolution: Available;	$30.44	1
012	23FA328CP	Washer - Crush - Aluminium - 14x18x1.35	23FA328CP Washer - Crush - Aluminium - 14x18x1.35 Row ID: ID_XXXXXXZW_23FA328CP_ContPgHS; Resolution: Available;	$7.28	1
013	14FA125CP	OIL TANK - ENGINE	14FA125CP OIL TANK - ENGINE Row ID: ID_DEFC0101_14FA125CP_ContPgHS; Resolution: Available;	$1,351.96	1
014	14F0517CP	ANTI VIBRATION MOUNT - OIL TANK	14F0517CP ANTI VIBRATION MOUNT - OIL TANK Row ID: ID_DEFC0104_14F0517CP_ContPgHS; Resolution: Available;	-	6	Enquire
016	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID_XXXXXXZW_00RC043_ContPgHS; Resolution: Available;	-	6	Enquire
018	14FA135CP	OIL SEPARATOR	14FA135CP OIL SEPARATOR Row ID: ID_DEFC0106_14FA135CP_ContPgHS; Resolution: Available;	$390.01	1
019	00RB053	HOSE CLAMP - 25-40MM - NORMA TORRO	00RB053 HOSE CLAMP - 25-40MM - NORMA TORRO Row ID: ID_XXXXXXZX_00RB053_ContPgHS; Resolution: Available;	-	1	Enquire
020	00RA556	BOLT - HEX - FLANGED - M6X16	00RA556 BOLT - HEX - FLANGED - M6X16 Row ID: ID_XXXXXXZV_00RA556_ContPgHS; Resolution: Available;	-	6	Enquire
021	14FA155CP	PIPE - OIL SEPERATOR	14FA155CP PIPE - OIL SEPERATOR Row ID: ID_DEFC0107_14FA155CP_ContPgHS; Resolution: Available;	$183.62	1
