34 - Engine - 34.8 - Electrical System

McLaren McLaren 720S Coupe

Find Your Part

McLaren McLaren 720S Coupe - 34 - ENGINE - 34.8 - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1892CP Ignition Coil - Engine $223.40 To Order
Photo Part No Description Price (each) Stock
11F1792CP Bolt - M6x16 - Engine $12.08 To Order
Photo Part No Description Price (each) Stock
11F1893CP Spark Plug - Engine $39.97 To Order
Photo Part No Description Price (each) Stock
11F2791CP Sensor - Engine - Knock - Coated $161.11 To Order
Photo Part No Description Price (each) Stock
11F1783CP Bolt - M8x30 - Engine - Thermostat $13.44 To Order
Photo Part No Description Price (each) Stock
14F0478CP BRACKET - ENGINE HARNESS $41.86 To Order
Photo Part No Description Price (each) Stock
14F0839CP WIRING HARNESS - ENGINE $1,074.85 To Order
Photo Part No Description Price (each) Stock
14F0482CP HARNESS - VEE LINK - LH Enquire To Order
Photo Part No Description Price (each) Stock
14F0483CP HARNESS - VEE LINK - RH $82.17 To Order
Photo Part No Description Price (each) Stock
14F0823CP HARNESS - ENGINE LINK - INJECTORS - LH Enquire To Order
Photo Part No Description Price (each) Stock
14F0719CP HARNESS - ENGINE LINK - INJECTORS - RH $204.38 To Order
Photo Part No Description Price (each) Stock
11F2191CP Sensor - Engine - Crank Position $54.19 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11F1019CP Connector Housing - Ignition Coil $51.66 To Order
Photo Part No Description Price (each) Stock
11F1035CP Repair Flylead - Ignition Coil $66.25 To Order
View All

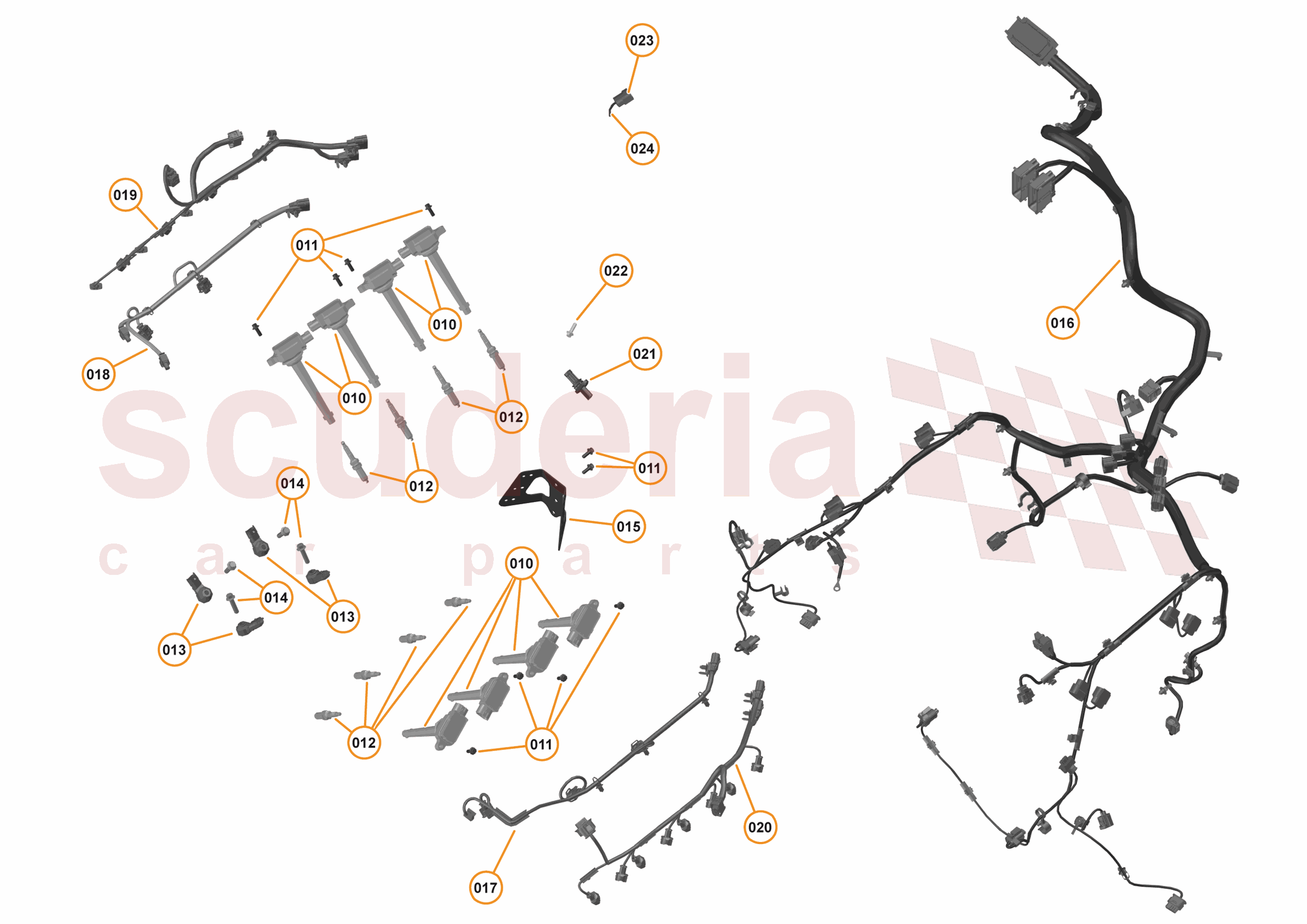

34 - ENGINE - 34.8 - ELECTRICAL SYSTEM of McLaren McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1892CP
Ignition Coil - Engine
Row ID: ID_DEFA01A2_11F1892CP_ContPgHS; Resolution: Available; 		$223.40 8
011 11F1792CP
Bolt - M6x16 - Engine
Row ID: ID_DEFA0115_11F1792CP_ContPgHS; Resolution: Available; 		$12.08 10
012 11F1893CP
Spark Plug - Engine
Row ID: ID_DEFA01A3_11F1893CP_ContPgHS; Resolution: Available; 		$39.97 8
013 11F2791CP
Sensor - Engine - Knock - Coated
Row ID: ID_DEFA01A4_11F2791CP_ContPgHS; Resolution: Available; 		$161.11 4
014 11F1783CP
Bolt - M8x30 - Engine - Thermostat
Row ID: ID_DEFA01A5_11F1783CP_ContPgHS; Resolution: Available; 		$13.44 4
015 14F0478CP
BRACKET - ENGINE HARNESS
Row ID: ID_DEFA01A6_14F0478CP_ContPgHS; Resolution: Available; 		$41.86 1
016 14F0839CP
WIRING HARNESS - ENGINE
Row ID: ID_DEFA01A7_14F0839CP_ContPgHS; Resolution: Available; 		$1,074.85 1
017 14F0482CP
HARNESS - VEE LINK - LH
Row ID: ID_DEFA01A8_14F0482CP_ContPgHS; Resolution: Available; 		- 1 Enquire
018 14F0483CP
HARNESS - VEE LINK - RH
Row ID: ID_DEFA01A9_14F0483CP_ContPgHS; Resolution: Available; 		$82.17 1
019 14F0823CP
HARNESS - ENGINE LINK - INJECTORS - LH
Row ID: ID_DEFA01B0_14F0823CP_ContPgHS; Resolution: Available; 		- 1 Enquire
020 14F0719CP
HARNESS - ENGINE LINK - INJECTORS - RH
Row ID: ID_DEFA01B1_14F0719CP_ContPgHS; Resolution: Available; 		$204.38 1
021 11F2191CP
Sensor - Engine - Crank Position
Row ID: ID_DEFA01B2_11F2191CP_ContPgHS; Resolution: Available; 		$54.19 1
022 11F1793CP
BOLT - M6X20 - HEX
Row ID: ID_DEFA0136_11F1793CP_ContPgHS; Resolution: Available; 		$10.14 1
023 11F1019CP
Connector Housing - Ignition Coil
Row ID: ID_DEFA01B3_11F1019CP_ContPgHS; Resolution: Available; 		$51.66 1
024 11F1035CP
Repair Flylead - Ignition Coil
Row ID: ID_DEFA01B4_11F1035CP_ContPgHS; Resolution: Available; 		$66.25 1
