McLaren McLaren 720S Coupe - 34 - ENGINE - 34.12 - ASSY-VENTURI PURGE HOSE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14FA219CP VENTURI PURGE HOSE - FUEL $301.38 To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB094 OETIKER CLIP - 21.0 Enquire To Order
Photo Part No Description Price (each) Stock
00RB096 STEPLESS EAR CLAMP - 16.2-706R Enquire To Order
Photo Part No Description Price (each) Stock
00RB120 CLIP - 90 DEGREE - FEMALE - 20-22 Enquire To Order
View All

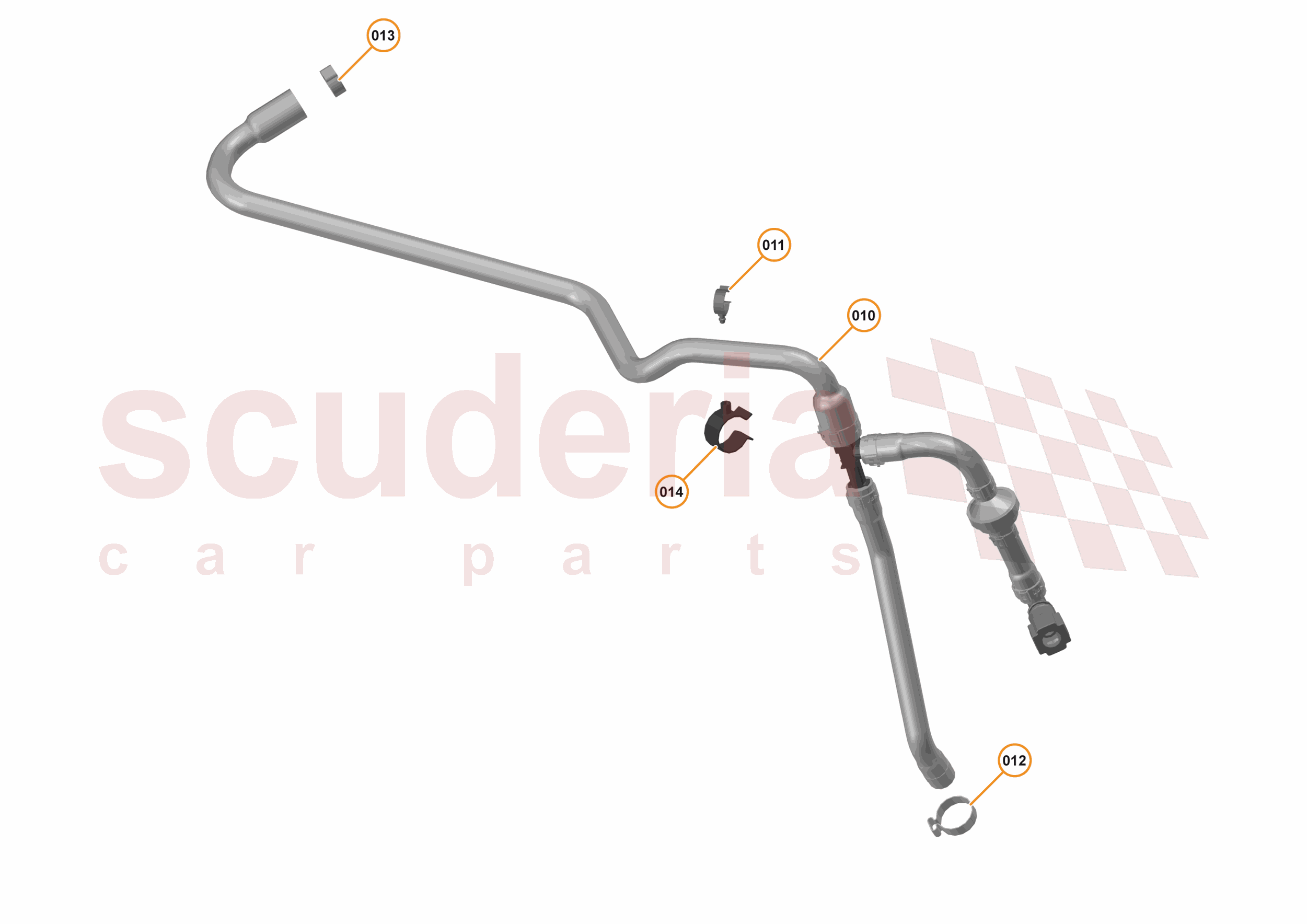

34 - ENGINE - 34.12 - ASSY-VENTURI PURGE HOSE of McLaren McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14FA219CP
VENTURI PURGE HOSE - FUEL
Row ID: ID_DEFA0401_14FA219CP_ContPgHS; Resolution: Available; 		$301.38 1
011 00RB018
CLIP - 11-13MM - MALE
Row ID: ID_XXXXXXZY_00RB018_ContPgHS; Resolution: Available; 		- 1 Enquire
012 00RB094
OETIKER CLIP - 21.0
Row ID: ID_XXXXXXZX_00RB094_ContPgHS; Resolution: Available; 		- 1 Enquire
013 00RB096
STEPLESS EAR CLAMP - 16.2-706R
Row ID: ID_XXXXXXZX_00RB096_ContPgHS; Resolution: Available; 		- 1 Enquire
014 00RB120
CLIP - 90 DEGREE - FEMALE - 20-22
Row ID: ID_XXXXXXZY_00RB120_ContPgHS; Resolution: Available; 		- 1 Enquire
