36 - Engine Oil System - 36.2 - Engine Oil Feed And Return Hoses

McLaren McLaren 720S Coupe

Find Your Part

McLaren McLaren 720S Coupe - 36 - ENGINE OIL SYSTEM - 36.2 - ENGINE OIL FEED AND RETURN HOSES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14FA123CP PIPE - RETURN - ENGINE OIL - ENGINE TO TANK $489.96 To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
14FA106CP PIPE - FEED - ENGINE OIL - TANK TO ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
11F0919CP O-ring - Hose - Oil Tank $25.37 To Order
View All

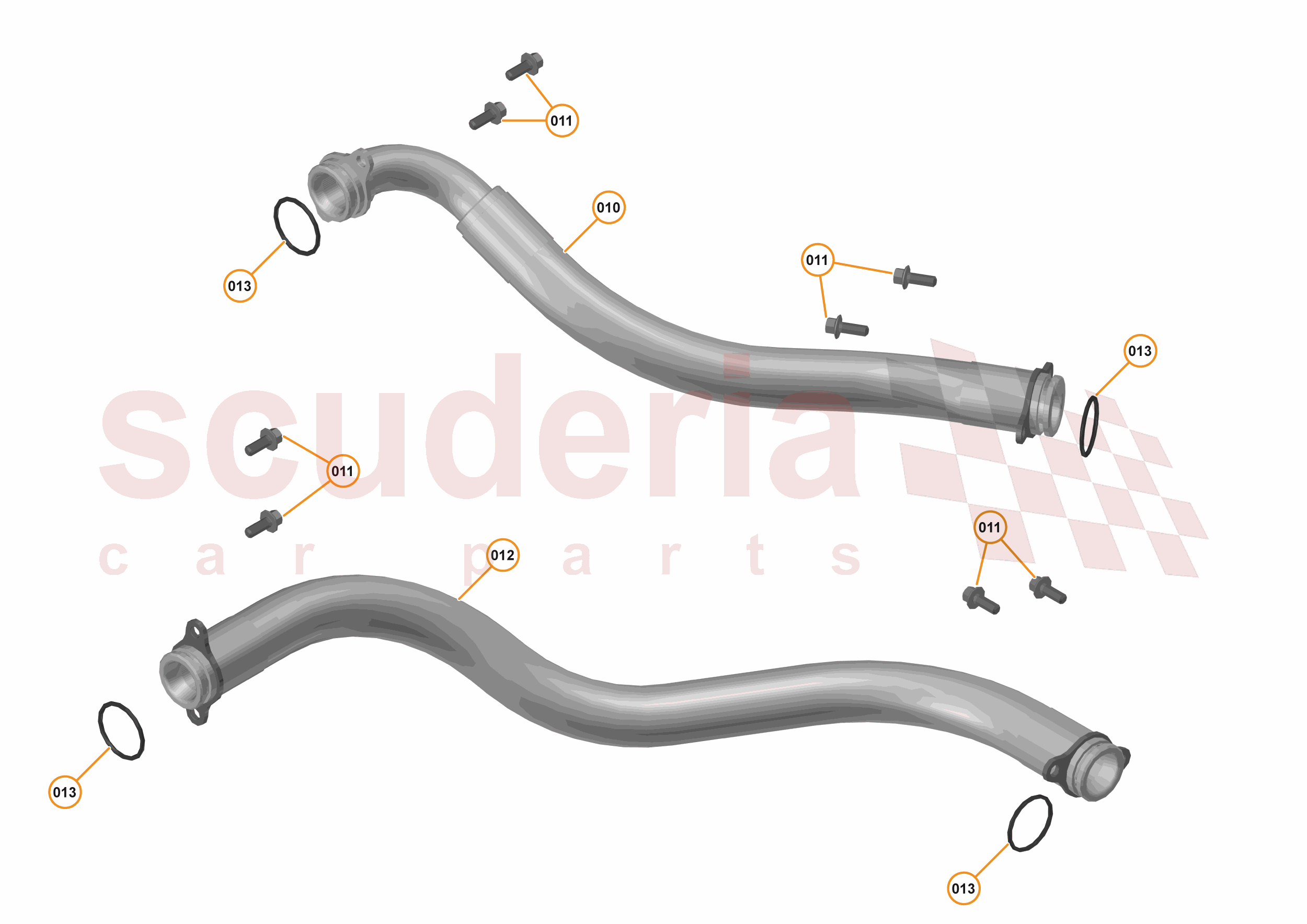

36 - ENGINE OIL SYSTEM - 36.2 - ENGINE OIL FEED AND RETURN HOSES of McLaren McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14FA123CP
PIPE - RETURN - ENGINE OIL - ENGINE TO TANK
Row ID: ID_DEFC0201_14FA123CP_ContPgHS; Resolution: Available; 		$489.96 1
011 00RA556
BOLT - HEX - FLANGED - M6X16
Row ID: ID_XXXXXXZV_00RA556_ContPgHS; Resolution: Available; 		- 8 Enquire
012 14FA106CP
PIPE - FEED - ENGINE OIL - TANK TO ENGINE
Row ID: ID_DEFC0202_14FA106CP_ContPgHS; Resolution: Available; 		- 1 Enquire
013 11F0919CP
O-ring - Hose - Oil Tank
Row ID: ID_DEFC0203_11F0919CP_ContPgHS; Resolution: Available; 		$25.37 4
