35 - ENGINE AIR SYSTEMS - 35.3 - CHARGE AIR COOLING SYSTEM of McLaren McLaren McLaren 720S Coupe

View All

McLaren McLaren 720S Coupe - 35 - ENGINE AIR SYSTEMS - 35.3 - CHARGE AIR COOLING SYSTEM

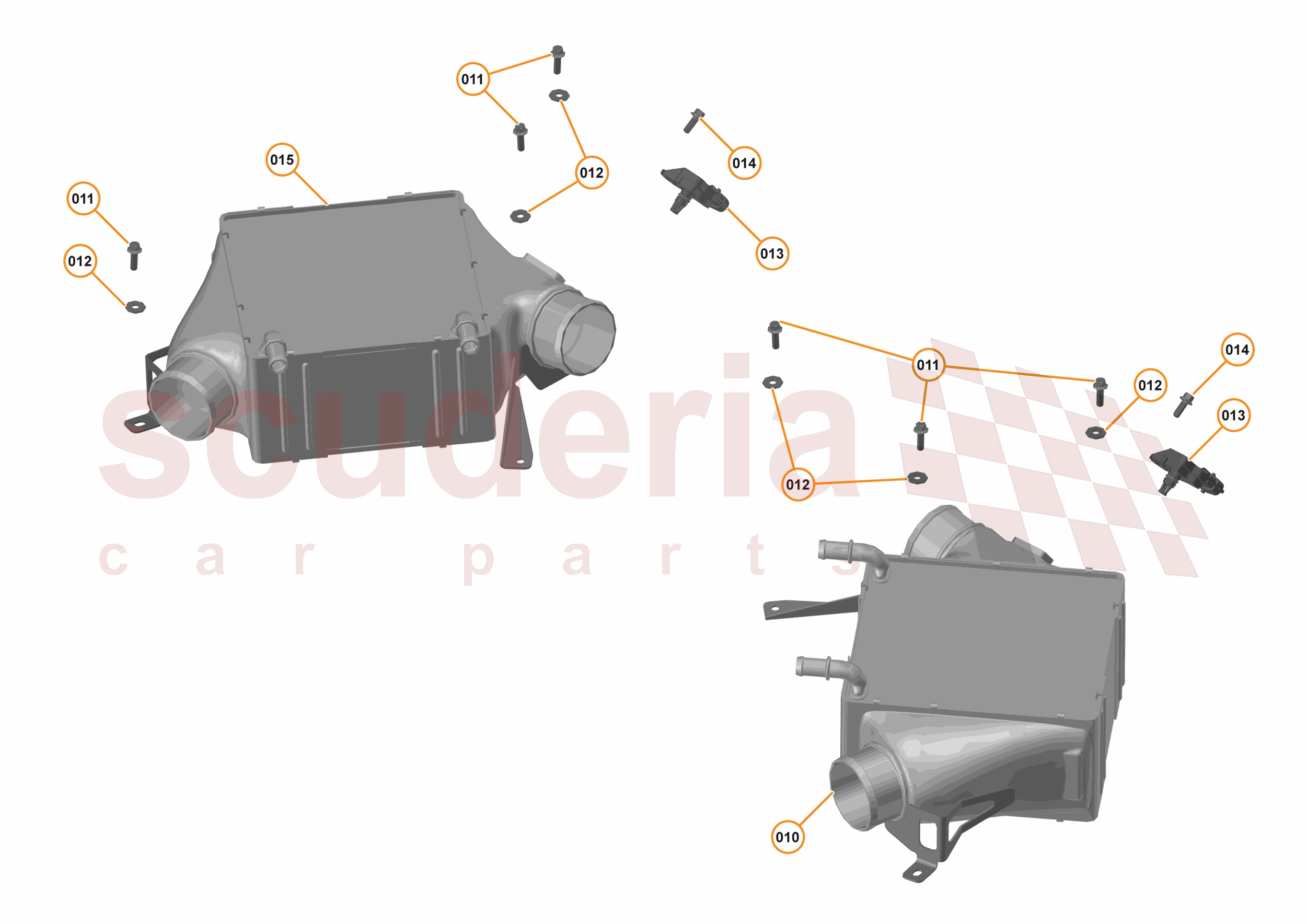

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14F0657CP	WATER CHARGE AIR COOLER - LH	$3,398.01	To Order

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC013	WASHER - M6X18X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0322CP	SENSOR - TMAP - INLET MANIFOLD ENGINE	$63.90	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA556	BOLT - HEX - FLANGED - M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0656CP	WATER CHARGE AIR COOLER - RH	$3,567.91	To Order

View All

35 - ENGINE AIR SYSTEMS - 35.3 - CHARGE AIR COOLING SYSTEM of McLaren McLaren McLaren 720S Coupe

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	010	14F0657CP	WATER CHARGE AIR COOLER - LH	14F0657CP WATER CHARGE AIR COOLER - LH Row ID: ID_DEFB0301_14F0657CP_ContPgHS; Resolution: Available;	$3,398.01	1
	011	-		Row ID: ID_XXXXXXZV_00RA083_ContPgHS; Resolution: Available;	-	6		Enquire
	012	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID_XXXXXXZW_00RC013_ContPgHS; Resolution: Available;	-	6		Enquire
	013	14F0322CP	SENSOR - TMAP - INLET MANIFOLD ENGINE	14F0322CP SENSOR - TMAP - INLET MANIFOLD ENGINE Row ID: ID_DEFB0302_14F0322CP_ContPgHS; Resolution: Available;	$63.90	2
	014	00RA556	BOLT - HEX - FLANGED - M6X16	00RA556 BOLT - HEX - FLANGED - M6X16 Row ID: ID_XXXXXXZV_00RA556_ContPgHS; Resolution: Available;	-	2		Enquire
	015	14F0656CP	WATER CHARGE AIR COOLER - RH	14F0656CP WATER CHARGE AIR COOLER - RH Row ID: ID_DEFB0303_14F0656CP_ContPgHS; Resolution: Available;	$3,567.91	1
