Name: 34 - ENGINE - 34.2 - OIL FILTER ASSEMBLY & COOLER
Rating: 4.9 (1 reviews)

34 - ENGINE - 34.2 - OIL FILTER ASSEMBLY & COOLER of McLaren McLaren McLaren 720S Coupe

View All

McLaren McLaren 720S Coupe - 34 - ENGINE - 34.2 - OIL FILTER ASSEMBLY & COOLER

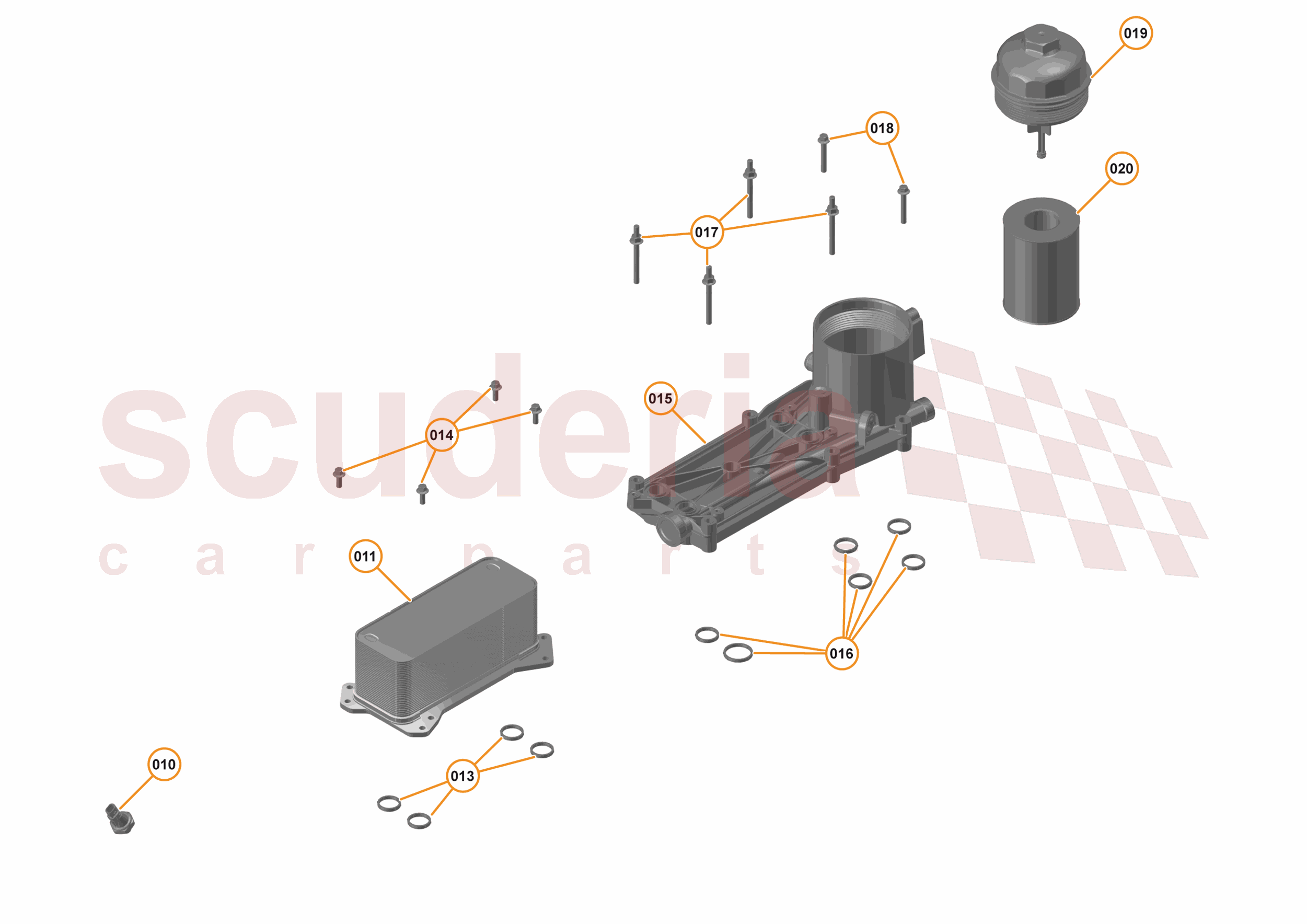

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11F2365CP	SWITCH - ENGINE OIL PRESSURE	$22.42	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0747CP	Oil Cooler - Engine	$674.77	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1016CP	Seal Set - Cooler to Vee Module	$98.53	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1792CP	Bolt - M6x16 - Engine	$12.08	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0725CP	Vee Module Assy - Engine - inc. Seals	$557.95	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2171CP	Seal Set - Cooler to Vee Module	$100.98	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1927CP	Bolt - Stud M6x74 - Engine	$9.90	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1777CP	BOLT - M6X40 - ENGINE	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2382CP	Oil Filter Cap Assy - Engine	$41.90	To Order

Photo	Part No	Description	Price (each)	Stock

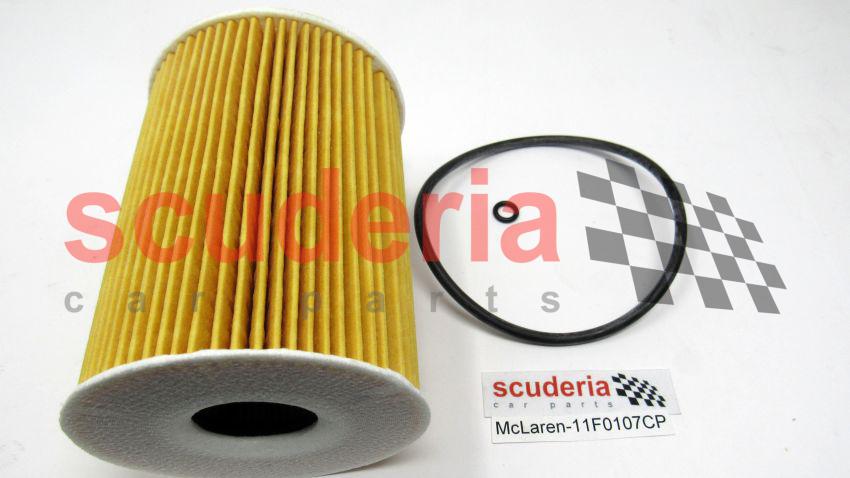

	11F0107CP	Oil Filter - Engine	$45.67	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
010	11F2365CP	SWITCH - ENGINE OIL PRESSURE	11F2365CP SWITCH - ENGINE OIL PRESSURE Row ID: ID_DEFA0122_11F2365CP_ContPgHS; Resolution: Available;	$22.42	1
011	13F0747CP	Oil Cooler - Engine	13F0747CP Oil Cooler - Engine Row ID: ID_DEFA0123_13F0747CP_ContPgHS; Resolution: Available;	$674.77	1
013	11F1016CP	Seal Set - Cooler to Vee Module	11F1016CP Seal Set - Cooler to Vee Module Row ID: ID_DEFA0124_11F1016CP_ContPgHS; Resolution: Available;	$98.53	1
014	11F1792CP	Bolt - M6x16 - Engine	11F1792CP Bolt - M6x16 - Engine Row ID: ID_DEFA0115_11F1792CP_ContPgHS; Resolution: Available;	$12.08	4
015	11F0725CP	Vee Module Assy - Engine - inc. Seals	11F0725CP Vee Module Assy - Engine - inc. Seals Row ID: ID_DEFA0125_11F0725CP_ContPgHS; Resolution: Available;	$557.95	1
016	11F2171CP	Seal Set - Cooler to Vee Module	11F2171CP Seal Set - Cooler to Vee Module Row ID: ID_DEFA0126_11F2171CP_ContPgHS; Resolution: Available;	$100.98	1
017	11F1927CP	Bolt - Stud M6x74 - Engine	11F1927CP Bolt - Stud M6x74 - Engine Row ID: ID_DEFA0127_11F1927CP_ContPgHS; Resolution: Available;	$9.90	4
018	11F1777CP	BOLT - M6X40 - ENGINE	11F1777CP BOLT - M6X40 - ENGINE Row ID: ID_DEFA0110_11F1777CP_ContPgHS; Resolution: Available;	$4.25	2
019	11F2382CP	Oil Filter Cap Assy - Engine	11F2382CP Oil Filter Cap Assy - Engine Row ID: ID_DEFA0128_11F2382CP_ContPgHS; Resolution: Available;	$41.90	1
020	11F0107CP	Oil Filter - Engine	11F0107CP Oil Filter - Engine Row ID: ID_DEFA0129_11F0107CP_ContPgHS; Resolution: Available;	$45.67	1

34 - Engine - 34.2 - Oil Filter Assembly & Cooler

McLaren McLaren 720S Coupe

McLaren McLaren 720S Coupe - 34 - ENGINE - 34.2 - OIL FILTER ASSEMBLY & COOLER
