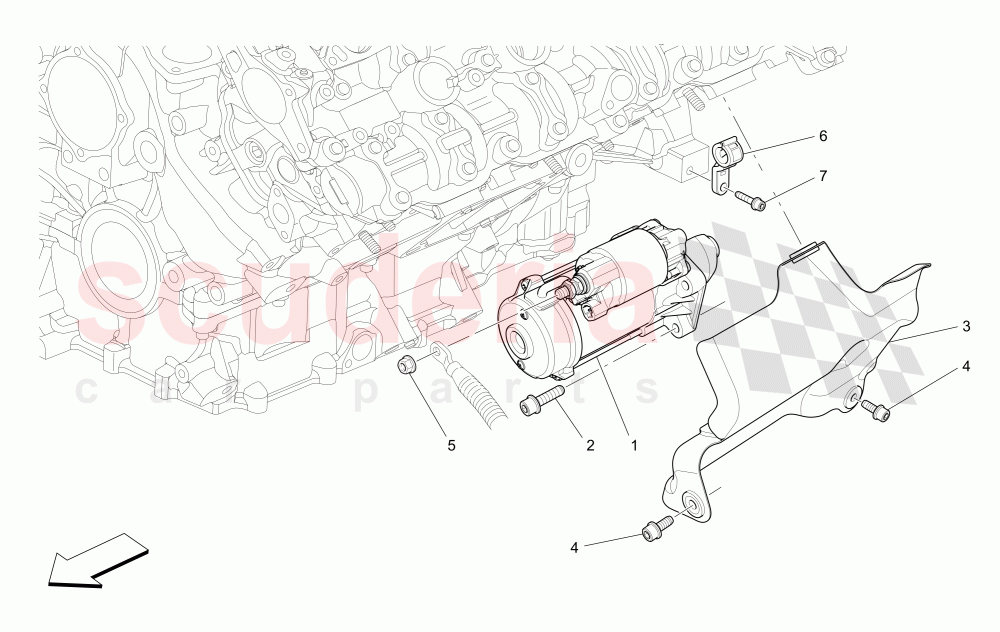

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	283444	STARTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14076511	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320599	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	283444	STARTER MOTOR	283444 STARTER MOTOR SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
2	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 M8X30 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	3	Enquire
3	286246	ANTI-HEAT SHIELD	286246 ANTI-HEAT SHIELD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
3	314649	ANTI-HEAT SHIELD	314649 ANTI-HEAT SHIELD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
4	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6X16 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	3	Enquire
5	14076511	NUT	14076511 NUT M8 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
6	320599	CLIP	320599 CLIP SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
7	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6X16 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
