Additional Air System

Maserati Quattroporte (2013+) GTS

Find Your Part

Maserati Quattroporte (2013+) GTS - ADDITIONAL AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
287732 MODULATOR SOLENOID VALVE $90.00 ARRIVING SOON
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.95 IN STOCK
Photo Part No Description Price (each) Stock
294143 WG-DV CONTROL PIPES $124.67 To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM $3.56 IN STOCK
Photo Part No Description Price (each) Stock
13125070 COLLAR $1.89 To Order
13127170 COLLAR $2.00 To Order
Photo Part No Description Price (each) Stock
297997 LH WG-DV CONTROL PIPE $500.56 To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM $3.56 IN STOCK
Photo Part No Description Price (each) Stock
299445 PIPE BETWEEN SOLENOID VALVE AND VACUUM PUMP $35.91 To Order
Photo Part No Description Price (each) Stock
315769 On/Off Solenoid Valve $77.32 IN STOCK
Photo Part No Description Price (each) Stock
14304624 SCREW $1.27 IN STOCK
Photo Part No Description Price (each) Stock
12604178 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
297998 RH WG-DV CONTROL PIPE $468.64 To Order
Photo Part No Description Price (each) Stock
297635 UPPER RIGID TUBE ON BELT GUARD $49.08 To Order
Photo Part No Description Price (each) Stock
295314 BELT SHIELD $44.83 To Order
Photo Part No Description Price (each) Stock
231619 SCREW M6 X 22MM $2.95 IN STOCK
Photo Part No Description Price (each) Stock
292014 VACUUM PUMP PIPE $321.26 To Order
Photo Part No Description Price (each) Stock

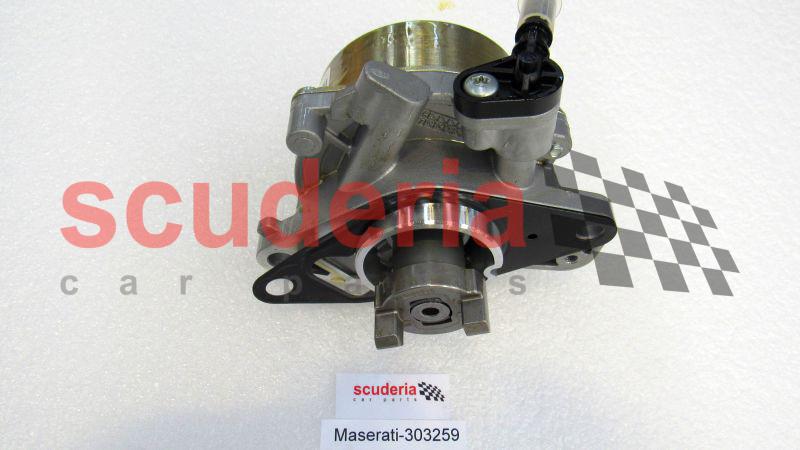

303259 VACUUM PUMP $670.72 To Order
Photo Part No Description Price (each) Stock
84317700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
288906 VACUUM PUMP PIPE BRACKET $27.20 To Order
Photo Part No Description Price (each) Stock
287562 VACUUM PUMP PIPE BRACKET $55.48 To Order
Photo Part No Description Price (each) Stock
263230 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM $3.56 IN STOCK
Photo Part No Description Price (each) Stock
297636 LOWER RIGID TUBE ON BELT GUARD $75.83 To Order
Photo Part No Description Price (each) Stock
292206 CLIP $4.26 To Order
View All

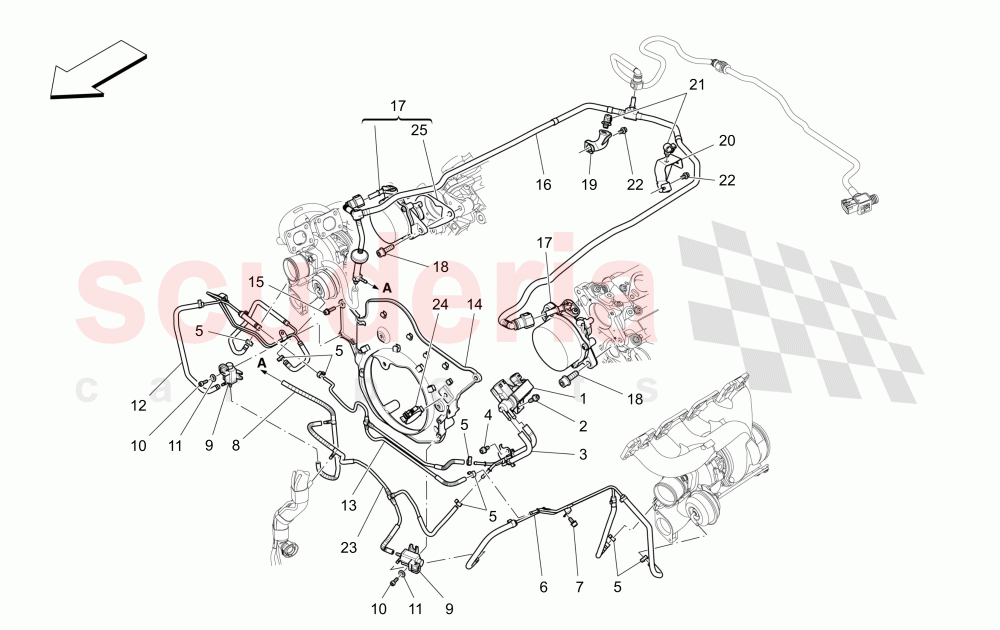

ADDITIONAL AIR SYSTEM of Maserati Maserati Quattroporte (2013+) GTS Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 287732
MODULATOR SOLENOID VALVE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
ARRIVING SOON 		$90.00 1
2 231617
SCREW M6 X 18
M6X18 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$2.95 2
3 294143
WG-DV CONTROL PIPES
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$124.67 1
4 248334
SCREW M6 X 14MM
M6X14
IN STOCK 		$3.56 1
5 13125070
COLLAR
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$1.89 6
5 13127170
COLLAR
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$2.00 2
6 297997
LH WG-DV CONTROL PIPE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$500.56 1
7 248334
SCREW M6 X 14MM
M6X14
IN STOCK 		$3.56 4
8 299445
PIPE BETWEEN SOLENOID VALVE AND VACUUM PUMP
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$35.91 1
9 315769
On/Off Solenoid Valve
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$77.32 2
10 14304624
SCREW
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$1.27 4
11 12604178
WASHER
D.5.3-11X0.5 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		- 4 Enquire
12 297998
RH WG-DV CONTROL PIPE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$468.64 1
13 297635
UPPER RIGID TUBE ON BELT GUARD
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$49.08 1
14 295314
BELT SHIELD
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$44.83 1
15 231619
SCREW M6 X 22MM
M6X22 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$2.95 4
16 292014
VACUUM PUMP PIPE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$321.26 1
17 303259
VACUUM PUMP
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$670.72 2
18 84317700
SCREW
M8X25 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		- 4 Enquire
19 288906
VACUUM PUMP PIPE BRACKET
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$27.20 1
20 287562
VACUUM PUMP PIPE BRACKET
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$55.48 1
21 263230
CLIP
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		- 2 Enquire
22 248334
SCREW M6 X 14MM
M6X14
IN STOCK 		$3.56 2
23 297636
LOWER RIGID TUBE ON BELT GUARD
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$75.83 1
24 292206
CLIP
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$4.26 1
