CRANK MECHANISM of Maserati Maserati Quattroporte (2013+) GTS

View All

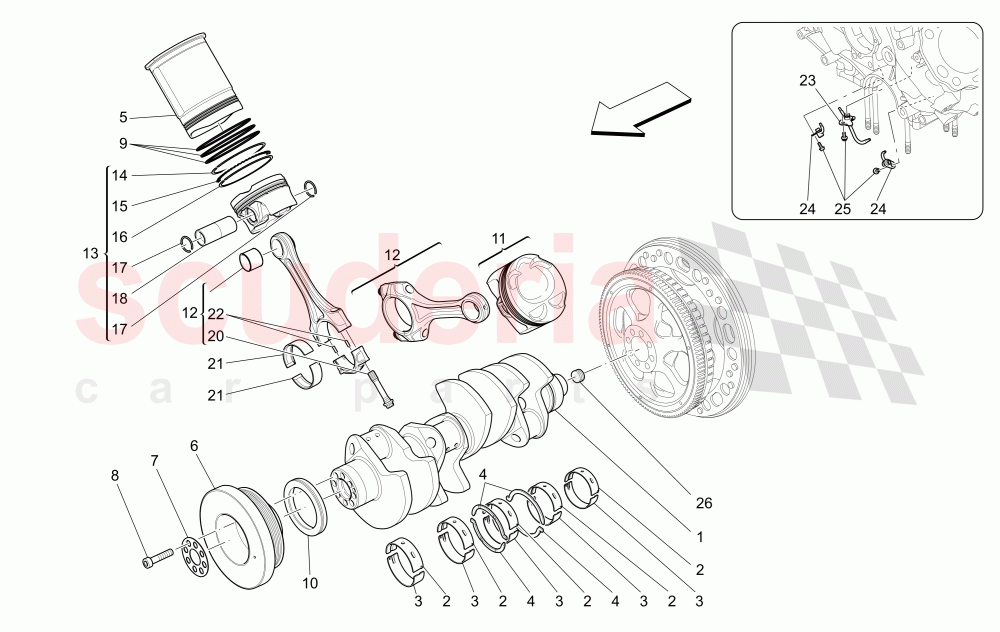

Maserati Quattroporte (2013+) GTS - CRANK MECHANISM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	315650	CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271406	UPPER HALF-BEARING	Enquire	To Order
	271408	UPPER HALF-BEARING	Enquire	To Order
	271409	UPPER HALF-BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271412	LOWER HALF-BEARING	Enquire	To Order
	271413	LOWER HALF-BEARING	Enquire	To Order
	271414	LOWER HALF-BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271589	SHIM WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271810	CYLINDERS LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281902	TORSION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271609	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14308074	ALLEN SCREW SOCKET HEAD M10 X 1.25 X 55	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271592	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271598	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296962	LH SIDE ENGINE PISTON WITH RINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297700	CONNECTING ROD SHAFT AND CAP ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296961	RH SIDE ENGINE PISTON WITH RINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286954	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296139	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287177	OIL SCRAPER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270275	LOCK RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270274	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270249	CONNECTING ROD TIGHTENING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271401	CONNECTING ROD HALF-BEARING	Enquire	To Order
	271402	CONNECTING ROD HALF-BEARING	Enquire	To Order
	271403	CONNECTING ROD HALF-BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292751	CENTRING PIN FOR CONNECTING RODS	Enquire	To Order
	283507	CENTRING PIN FOR CONNECTING RODS	Enquire	To Order
	292751	CENTRING PIN FOR CONNECTING RODS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277212	PISTONS COOLING NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277213	PISTONS COOLING NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262413	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176396	THREADED PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	315650	CRANKSHAFT	315650 CRANKSHAFT SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
2	271406	UPPER HALF-BEARING	271406 UPPER HALF-BEARING Green - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK	-	5	Enquire
2	271408	UPPER HALF-BEARING	271408 UPPER HALF-BEARING Yellow - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK	-	5	Enquire
2	271409	UPPER HALF-BEARING	271409 UPPER HALF-BEARING Blue - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK	-	5	Enquire
3	271412	LOWER HALF-BEARING	271412 LOWER HALF-BEARING Green - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK	-	5	Enquire
3	271413	LOWER HALF-BEARING	271413 LOWER HALF-BEARING Yellow - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK	-	5	Enquire
3	271414	LOWER HALF-BEARING	271414 LOWER HALF-BEARING Blue - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK	-	5	Enquire
4	271589	SHIM WASHER	271589 SHIM WASHER SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	4	Enquire
5	271810	CYLINDERS LINER	271810 CYLINDERS LINER SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
6	281902	TORSION DAMPER	281902 TORSION DAMPER SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
7	271609	WASHER	271609 WASHER SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
8	14308074	ALLEN SCREW SOCKET HEAD M10 X 1.25 X 55	14308074 ALLEN SCREW SOCKET HEAD M10 X 1.25 X 55 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
9	271592	O.R. GASKET	271592 O.R. GASKET SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	24	Enquire
10	271598	GASKET	271598 GASKET SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
11	296962	LH SIDE ENGINE PISTON WITH RINGS	296962 LH SIDE ENGINE PISTON WITH RINGS SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	4	Enquire
12	297700	CONNECTING ROD SHAFT AND CAP ASSEMBLY	297700 CONNECTING ROD SHAFT AND CAP ASSEMBLY	-	8	Enquire
13	296961	RH SIDE ENGINE PISTON WITH RINGS	296961 RH SIDE ENGINE PISTON WITH RINGS SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	4	Enquire
14	286954	SEAL RING	286954 SEAL RING 1st groove - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK	-	8	Enquire
15	296139	SEAL RING	296139 SEAL RING 2nd groove - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK	-	8	Enquire
16	287177	OIL SCRAPER RING	287177 OIL SCRAPER RING 3nd groove - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK	-	8	Enquire
17	270275	LOCK RING	270275 LOCK RING SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	16	Enquire
18	270274	PIN	270274 PIN SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
20	270249	CONNECTING ROD TIGHTENING SCREW	270249 CONNECTING ROD TIGHTENING SCREW SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	16	Enquire
21	271401	CONNECTING ROD HALF-BEARING	271401 CONNECTING ROD HALF-BEARING Black - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK	-	16	Enquire
21	271402	CONNECTING ROD HALF-BEARING	271402 CONNECTING ROD HALF-BEARING Blue - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK	-	16	Enquire
21	271403	CONNECTING ROD HALF-BEARING	271403 CONNECTING ROD HALF-BEARING Red - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK	-	16	Enquire
22	292751	CENTRING PIN FOR CONNECTING RODS	292751 CENTRING PIN FOR CONNECTING RODS	-	16	Enquire
22	283507	CENTRING PIN FOR CONNECTING RODS	283507 CENTRING PIN FOR CONNECTING RODS IF 283507 STOCK=0, FOR THE FIRST REPLACE OF THE COMPONENT PLEASE SELL-OUT COMPLETE PISTON ROD WITH PN 297700 AND UPDATE VARIANT TRACKING. FOR THE NEXT REPLACE YOU CAN ORDER ONLY PN 292751	-	16	Enquire
22	292751	CENTRING PIN FOR CONNECTING RODS	292751 CENTRING PIN FOR CONNECTING RODS FOR THE FIRST REPLACE IT’S MANDATORY ORDER THE COMPLETE PISTON ROD WITH PN 297700 AND UPDATED VARIANT TRACKING. FOR THE NEXT REPLACE YOU CAN ORDER ONLY THE SINGLE CENTRING PIN	-	16	Enquire
23	277212	PISTONS COOLING NOZZLE	277212 PISTONS COOLING NOZZLE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	4	Enquire
24	277213	PISTONS COOLING NOZZLE	277213 PISTONS COOLING NOZZLE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
25	262413	SCREW	262413 SCREW SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	12	Enquire
26	176396	THREADED PLUG	176396 THREADED PLUG SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
