Fuel Pumps And Connection Lines

Maserati Quattroporte (2013+) GTS

Find Your Part

Maserati Quattroporte (2013+) GTS - FUEL PUMPS AND CONNECTION LINES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670003733 FUEL LEVEL GAUGE RACK $554.46 IN STOCK
Photo Part No Description Price (each) Stock
670030756 LH FUEL PUMP $1,661.83 To Order
Photo Part No Description Price (each) Stock
670003258 INSPECTION COVER $20.19 To Order
Photo Part No Description Price (each) Stock
670001397 RING NUT $52.08 To Order
Photo Part No Description Price (each) Stock
670003255 DAMPER $3.68 To Order
Photo Part No Description Price (each) Stock
670005063 CLIP $5.27 To Order
Photo Part No Description Price (each) Stock
670005064 CLIP $5.27 IN STOCK
Photo Part No Description Price (each) Stock
670031550 UNDERFLOOR FUEL PIPES $239.48 To Order
Photo Part No Description Price (each) Stock
670005082 CLIP $2.00 To Order
Photo Part No Description Price (each) Stock
675000071 SCREW $2.00 To Order
Photo Part No Description Price (each) Stock
675000022 BLOCK $10.81 IN STOCK
Photo Part No Description Price (each) Stock
670005014 CLIP $3.57 To Order
Photo Part No Description Price (each) Stock
675000132 CLIP $1.24 To Order
Photo Part No Description Price (each) Stock
670001398 FUEL PUMP GASKET $24.18 IN STOCK
Photo Part No Description Price (each) Stock
670100118 CLIP $3.57 To Order
View All

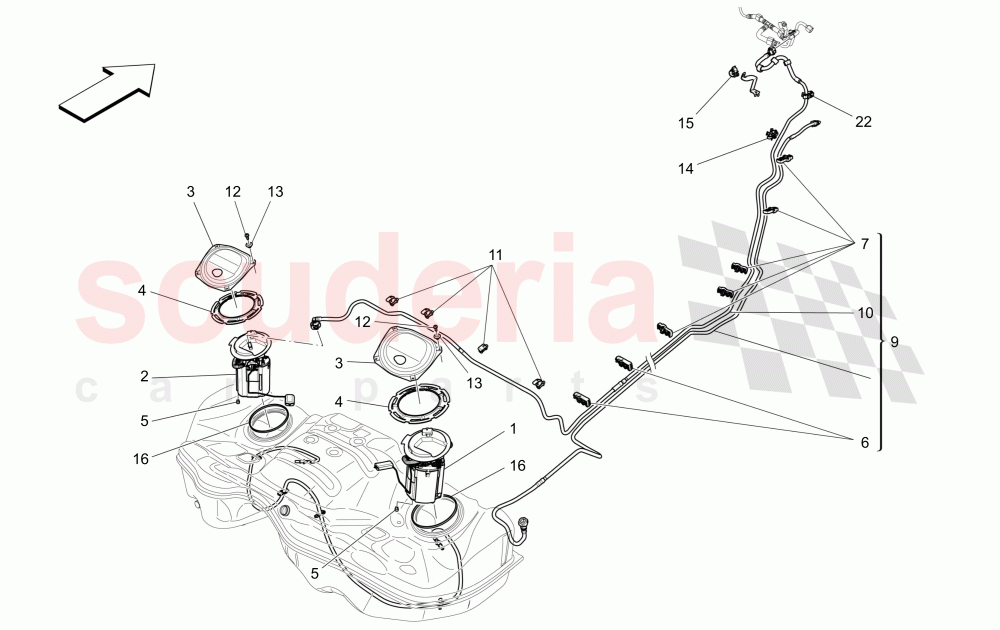

FUEL PUMPS AND CONNECTION LINES of Maserati Maserati Quattroporte (2013+) GTS Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670003733
FUEL LEVEL GAUGE RACK
IN STOCK 		$554.46 1
2 670030756
LH FUEL PUMP 		$1,661.83 1
3 670003258
INSPECTION COVER 		$20.19 2
4 670001397
RING NUT 		$52.08 2
5 670003255
DAMPER 		$3.68 8
6 670005063
CLIP 		$5.27 4
7 670005064
CLIP
IN STOCK 		$5.27 5
9 670031550
UNDERFLOOR FUEL PIPES 		$239.48 1
11 670005082
CLIP 		$2.00 5
12 675000071
SCREW 		$2.00 8
13 675000022
BLOCK
IN STOCK 		$10.81 8
14 670005014
CLIP 		$3.57 1
15 675000132
CLIP 		$1.24 1
16 670001398
FUEL PUMP GASKET
IN STOCK 		$24.18 2
22 670100118
CLIP 		$3.57 1
