Name: COOLING SYSTEM: NOURICE AND LINES
Rating: 4.3 (1 reviews)

COOLING SYSTEM: NOURICE AND LINES of Maserati Maserati Quattroporte (2013+) GTS

View All

Maserati Quattroporte (2013+) GTS - COOLING SYSTEM: NOURICE AND LINES

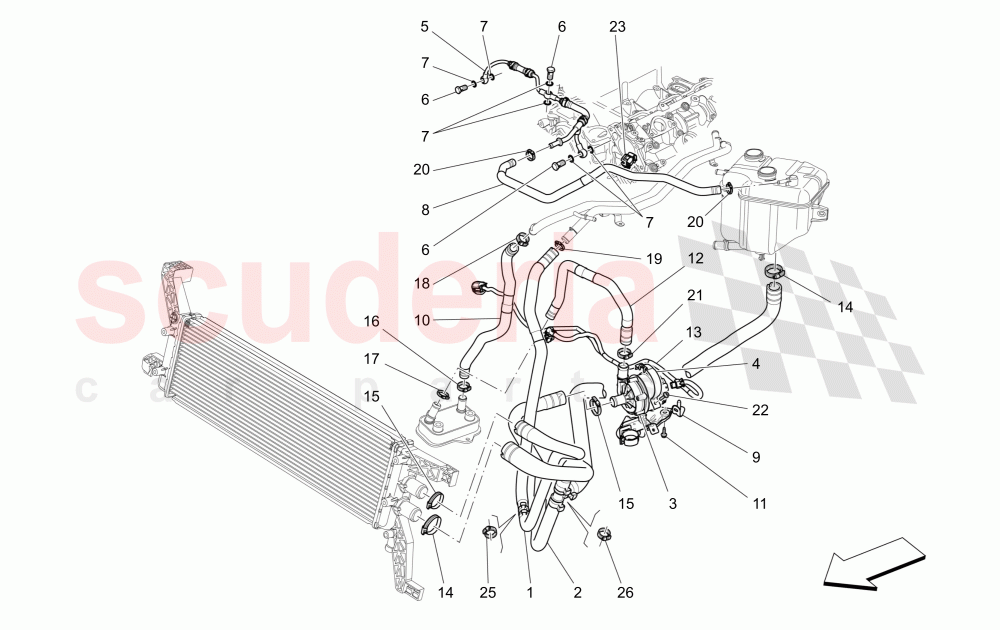

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670003297	PIPE BETWEEN ENGINE AND SECONDARY RADIATOR	$116.71	To Order

Photo	Part No	Description	Price (each)	Stock
	670002998	PIPE BETWEEN SECONDARY RADIATOR AND PUMP	$101.86	To Order

Photo	Part No	Description	Price (each)	Stock
	670005347	ELECTRIC WATER PUMP	$351.27	To Order

Photo	Part No	Description	Price (each)	Stock
	670005352	CLAMP	$8.54	To Order

Photo	Part No	Description	Price (each)	Stock
	302133	HEAD WATER BREATHER PIPE	$397.73	To Order

Photo	Part No	Description	Price (each)	Stock
	11903811	UNION	$6.55	To Order

Photo	Part No	Description	Price (each)	Stock
	10260960	GASKET	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	670001345	VENT PIPE	$32.68	To Order

Photo	Part No	Description	Price (each)	Stock
	670005349	BRACKET	$52.80	To Order

Photo	Part No	Description	Price (each)	Stock
	670006390	WATER DELIVERY PIPE FROM PUMP TO ENGINE	$42.89	To Order

Photo	Part No	Description	Price (each)	Stock
	675000088	SCREWM6X22	$3.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670006391	WATER DELIVERY PIPE FROM PUMP TO EXCHANGER	$167.15	To Order

Photo	Part No	Description	Price (each)	Stock
	670007517	WATER PUMP CABLE	$46.46	To Order

Photo	Part No	Description	Price (each)	Stock
	675000658	SNAP HOSE CLAMP	$10.33	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	675000658	SNAP HOSE CLAMP	$10.33	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	675000319	COLLARD.22,5	$16.93	To Order

Photo	Part No	Description	Price (each)	Stock
	675000372	COLLARD.20,5	$1.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11417670	HOSE SCREW COLLAR D.30-45	$11.68	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	675000370	COLLAR	$2.28	To Order

Photo	Part No	Description	Price (each)	Stock
	675000373	STRAP COLLAR D.12.5	$2.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000372	COLLARD.20,5	$1.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000364	SCREWM6X14	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	675000019	RETAINING CLIP	$1.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000319	COLLARD.22,5	$16.93	To Order

Photo	Part No	Description	Price (each)	Stock
	675000319	COLLARD.22,5	$16.93	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670003297	PIPE BETWEEN ENGINE AND SECONDARY RADIATOR	670003297 PIPE BETWEEN ENGINE AND SECONDARY RADIATOR	$116.71	1
2	670002998	PIPE BETWEEN SECONDARY RADIATOR AND PUMP	670002998 PIPE BETWEEN SECONDARY RADIATOR AND PUMP	$101.86	1
3	670005347	ELECTRIC WATER PUMP	670005347 ELECTRIC WATER PUMP	$351.27	1
4	670005352	CLAMP	670005352 CLAMP	$8.54	1
5	302133	HEAD WATER BREATHER PIPE	302133 HEAD WATER BREATHER PIPE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$397.73	1
6	11903811	UNION	11903811 UNION SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$6.55	3
7	10260960	GASKET	10260960 GASKET SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$1.15	6
8	670001345	VENT PIPE	670001345 VENT PIPE	$32.68	1
9	670005349	BRACKET	670005349 BRACKET	$52.80	1
10	670006390	WATER DELIVERY PIPE FROM PUMP TO ENGINE	670006390 WATER DELIVERY PIPE FROM PUMP TO ENGINE	$42.89	1
11	675000088	SCREWM6X22 IN STOCK	675000088 SCREWM6X22 M6X22 IN STOCK	$3.67	3
12	670006391	WATER DELIVERY PIPE FROM PUMP TO EXCHANGER	670006391 WATER DELIVERY PIPE FROM PUMP TO EXCHANGER	$167.15	1
13	670007517	WATER PUMP CABLE	670007517 WATER PUMP CABLE	$46.46	1
14	675000658	SNAP HOSE CLAMP ARRIVING SOON	675000658 SNAP HOSE CLAMP ARRIVING SOON	$10.33	2
15	675000658	SNAP HOSE CLAMP ARRIVING SOON	675000658 SNAP HOSE CLAMP ARRIVING SOON	$10.33	2
16	675000319	COLLARD.22,5	675000319 COLLARD.22,5 D.22,5	$16.93	1
17	675000372	COLLARD.20,5 IN STOCK	675000372 COLLARD.20,5 D.20,5 IN STOCK	$1.89	1
18	11417670	HOSE SCREW COLLAR D.30-45 ARRIVING SOON	11417670 HOSE SCREW COLLAR D.30-45 ARRIVING SOON	$11.68	1
19	675000370	COLLAR	675000370 COLLAR D.19,5	$2.28	1
20	675000373	STRAP COLLAR D.12.5 IN STOCK	675000373 STRAP COLLAR D.12.5 D.12,5 IN STOCK	$2.17	2
21	675000372	COLLARD.20,5 IN STOCK	675000372 COLLARD.20,5 D.20,5 IN STOCK	$1.89	1
22	675000364	SCREWM6X14	675000364 SCREWM6X14 M6X14	$1.34	1
23	675000019	RETAINING CLIP IN STOCK	675000019 RETAINING CLIP IN STOCK	$1.29	1
25	675000319	COLLARD.22,5	675000319 COLLARD.22,5 D.22,5	$16.93	2
26	675000319	COLLARD.22,5	675000319 COLLARD.22,5 D.22,5	$16.93	3

Cooling System: Nourice And Lines

Maserati Quattroporte (2013+) GTS

Maserati Quattroporte (2013+) GTS - COOLING SYSTEM: NOURICE AND LINES
