FUEL PUMPS AND CONNECTION LINES of Maserati Maserati Quattroporte (2013+) GTS

View All

Maserati Quattroporte (2013+) GTS - FUEL PUMPS AND CONNECTION LINES

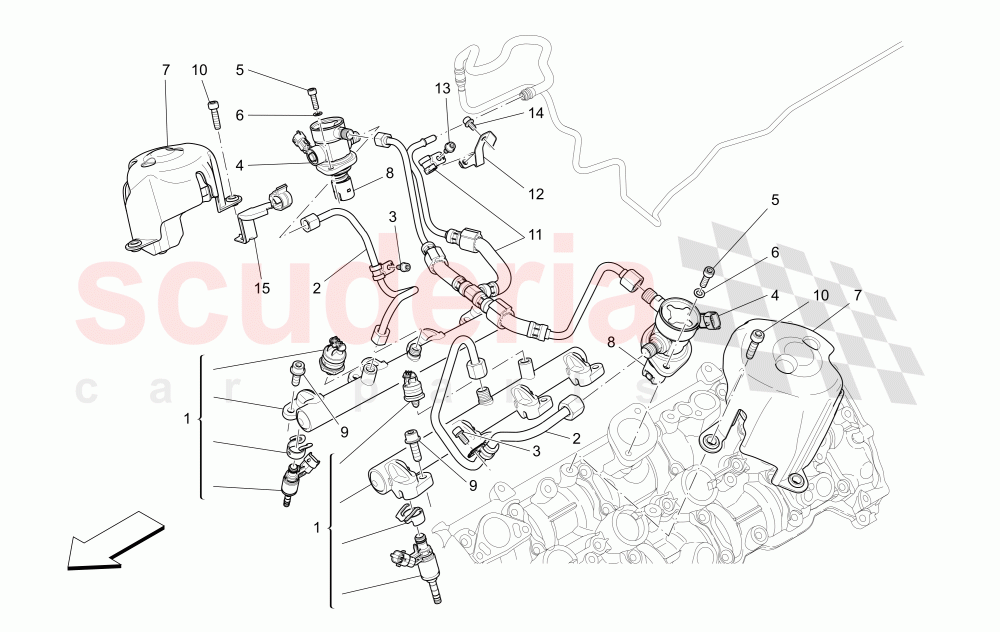

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	326631	COMPLETE INJECTORS PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297510	RAIL-PUMP HIGH PRESSURE FUEL PIPE	$113.82	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	303191	HIGH PRESSURE FUEL PUMP	Enquire	To Order
	303191	HIGH PRESSURE FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305334	SCREW	$6.49	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHERD.6.15-11X1	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	297021	ACOUSTIC COVER	$99.46	To Order

Photo	Part No	Description	Price (each)	Stock
	270601	HIG PRESSURE PUMP BUCKET	$59.30	To Order

Photo	Part No	Description	Price (each)	Stock
	84317700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW M6 X 22MM	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	294698	LOW PRESSURE FUEL PIPE	$487.93	To Order

Photo	Part No	Description	Price (each)	Stock
	294714	BRACKET	$71.70	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREW M6 X 12	$2.78	To Order

Photo	Part No	Description	Price (each)	Stock
	231618	SCREWM6X20	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	305027	BRACKET	$27.62	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	326631	COMPLETE INJECTORS PIPE	326631 COMPLETE INJECTORS PIPE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
2	297510	RAIL-PUMP HIGH PRESSURE FUEL PIPE	297510 RAIL-PUMP HIGH PRESSURE FUEL PIPE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$113.82	2
3	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6X14	$3.53	2
4	303191	HIGH PRESSURE FUEL PUMP	303191 HIGH PRESSURE FUEL PUMP SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
4	303191	HIGH PRESSURE FUEL PUMP	303191 HIGH PRESSURE FUEL PUMP SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
5	14305334	SCREW	14305334 SCREW SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$6.49	4
6	12639724	WASHERD.6.15-11X1	12639724 WASHERD.6.15-11X1 D.6.15-11X1 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$1.55	4
7	297021	ACOUSTIC COVER	297021 ACOUSTIC COVER SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$99.46	2
8	270601	HIG PRESSURE PUMP BUCKET	270601 HIG PRESSURE PUMP BUCKET Diameter 28	$59.30	2
9	84317700	SCREW	84317700 SCREW M8X25 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
10	231619	SCREW M6 X 22MM	231619 SCREW M6 X 22MM M6X22 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$2.92	6
11	294698	LOW PRESSURE FUEL PIPE	294698 LOW PRESSURE FUEL PIPE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$487.93	1
12	294714	BRACKET	294714 BRACKET SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$71.70	1
13	233600	SCREW M6 X 12	233600 SCREW M6 X 12 M6X12 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$2.78	1
14	231618	SCREWM6X20	231618 SCREWM6X20 M6X20 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$1.32	1
15	305027	BRACKET	305027 BRACKET	$27.62	1
