TURBOCHARGING SYSTEM: LUBRICATION AND COOLING

Find Your Part

Maserati Quattroporte (2013+) GTS - TURBOCHARGING SYSTEM: LUBRICATION AND COOLING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
293643 WATER RETURN PIPE FROM RH TURBINE $175.22 To Order
Photo Part No Description Price (each) Stock
278398 THREADED UNION $110.00 To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $1.32 To Order
Photo Part No Description Price (each) Stock
171454 FILLER NECK $134.81 To Order
Photo Part No Description Price (each) Stock
10261060 COPPER WASHER D.12- 16 X 1.5MM $1.32 To Order
Photo Part No Description Price (each) Stock
290011 WATER RETURN PIPE FROM LH TURBINE $189.30 To Order
Photo Part No Description Price (each) Stock
293741 WATER DELIVERY PIPE TO RH TURBINE $152.21 To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.92 To Order
Photo Part No Description Price (each) Stock
275034 FILLER NECK $53.08 To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $1.32 To Order
Photo Part No Description Price (each) Stock
290014 WATER DELIVERY PIPE TO LH TURBINE $195.68 To Order
Photo Part No Description Price (each) Stock
292744 OIL DELIVERY PIPE TO RH TURBINE $165.66 To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.92 To Order
Photo Part No Description Price (each) Stock
171454 FILLER NECK $134.81 To Order
Photo Part No Description Price (each) Stock
10261060 COPPER WASHER D.12- 16 X 1.5MM $1.32 To Order
Photo Part No Description Price (each) Stock
292745 OIL DELIVERY PIPE TO LH TURBINE $249.41 To Order
Photo Part No Description Price (each) Stock
278380 OIL RECOVERY PIPE FROM RH TURBINE $130.46 To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM $3.53 To Order
Photo Part No Description Price (each) Stock
278390 OIL RECOVERY PIPE FROM LH TURBINE $130.46 To Order
Photo Part No Description Price (each) Stock
271457 OIL DRAIN PIPE GASKET $4.18 To Order
Photo Part No Description Price (each) Stock
287722 O-RING 15.08 X 2.62 $2.78 To Order
Photo Part No Description Price (each) Stock
14456981 O.R. GASKET $1.97 To Order
Photo Part No Description Price (each) Stock
14456981 O.R. GASKET $1.97 To Order
Photo Part No Description Price (each) Stock
14456981 O.R. GASKET $1.97 To Order
Photo Part No Description Price (each) Stock
14456981 O.R. GASKET $1.97 To Order
View All

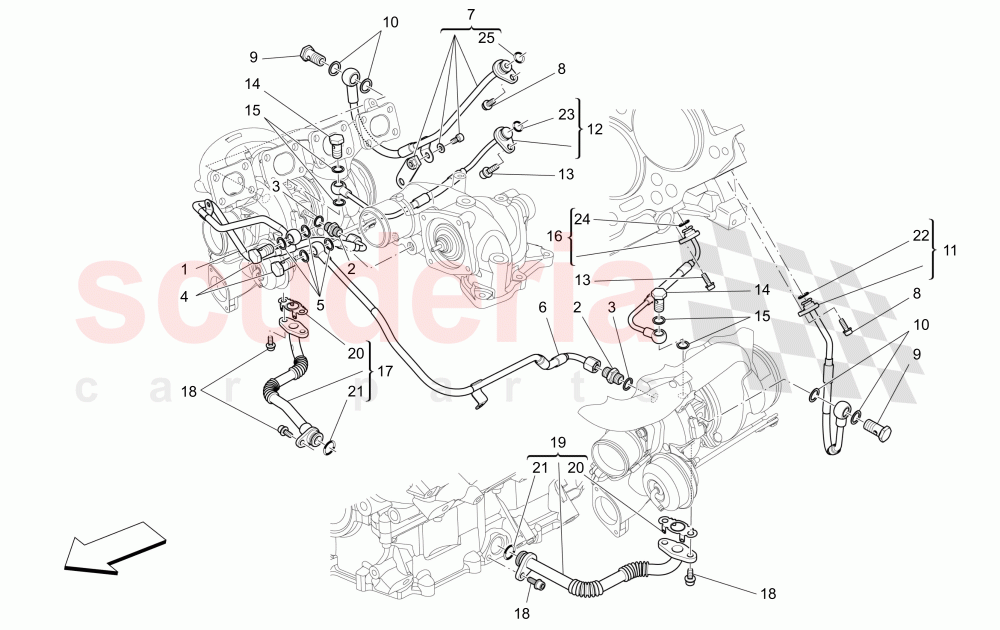

TURBOCHARGING SYSTEM: LUBRICATION AND COOLING of Maserati Maserati Quattroporte (2013+) GTS Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 293643
WATER RETURN PIPE FROM RH TURBINE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$175.22 1
2 278398
THREADED UNION
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$110.00 2
3 10280060
WASHER COPPER D14. 20 X 1.5
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$1.32 2
4 171454
FILLER NECK
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$134.81 2
5 10261060
COPPER WASHER D.12- 16 X 1.5MM
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$1.32 4
6 290011
WATER RETURN PIPE FROM LH TURBINE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$189.30 1
7 293741
WATER DELIVERY PIPE TO RH TURBINE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$152.21 1
8 231617
SCREW M6 X 18
M6X18 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$2.92 2
9 275034
FILLER NECK
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$53.08 2
10 10280060
WASHER COPPER D14. 20 X 1.5
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$1.32 4
11 290014
WATER DELIVERY PIPE TO LH TURBINE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$195.68 1
12 292744
OIL DELIVERY PIPE TO RH TURBINE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$165.66 1
13 231617
SCREW M6 X 18
M6X18 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$2.92 2
14 171454
FILLER NECK
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$134.81 2
15 10261060
COPPER WASHER D.12- 16 X 1.5MM
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$1.32 4
16 292745
OIL DELIVERY PIPE TO LH TURBINE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$249.41 1
17 278380
OIL RECOVERY PIPE FROM RH TURBINE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$130.46 1
18 248334
SCREW M6 X 14MM
M6X16 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$3.53 4
19 278390
OIL RECOVERY PIPE FROM LH TURBINE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$130.46 1
20 271457
OIL DRAIN PIPE GASKET
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$4.18 2
21 287722
O-RING 15.08 X 2.62
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$2.78 2
22 14456981
O.R. GASKET 		$1.97 1
23 14456981
O.R. GASKET 		$1.97 1
24 14456981
O.R. GASKET 		$1.97 1
25 14456981
O.R. GASKET 		$1.97 1
