Maserati Quattroporte (2013+) GTS - TIMING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	790545	OIL PUMP AND TIMING SYSTEM ASSEMBLY	$1,656.25	To Order

Photo	Part No	Description	Price (each)	Stock
	271880	TRANSMISSION CHAIN	$70.11	To Order

Photo	Part No	Description	Price (each)	Stock
	318677	MOBILE SLIDING BLOCK	$136.08	To Order

Photo	Part No	Description	Price (each)	Stock
	175303	BUSHING	$24.82	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW M8 X 25	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	284900	WASHER	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	307544	FIXED SLIDING BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302821	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	271856	PRIMARY MOBILE GUIDE SHOE SUPPORT	$25.60	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$4.50	To Order

Photo	Part No	Description	Price (each)	Stock
	306094	Fixing Sliding Block	$39.31	To Order

Photo	Part No	Description	Price (each)	Stock
	317152	GASKET	Enquire	To Order
	294727	GASKET	$265.95	To Order

Photo	Part No	Description	Price (each)	Stock
	282396	SCREW	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	317852	TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286222	ENGINE SHAFT TOOTHED WHEEL	$444.97	To Order

Photo	Part No	Description	Price (each)	Stock
	284898	SCREW	$16.48	To Order

Photo	Part No	Description	Price (each)	Stock
	304699	TRANSMISSION TOOTHED WHEEL SHOULDER	$34.23	To Order

Photo	Part No	Description	Price (each)	Stock
	267808	ROLLER CAGE	$22.65	To Order

Photo	Part No	Description	Price (each)	Stock
	245914	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	322199	SUPPORT	$171.85	To Order

Photo	Part No	Description	Price (each)	Stock
	154191	GASKET	$4.38	To Order

Photo	Part No	Description	Price (each)	Stock
	284898	SCREW	$16.48	To Order

Photo	Part No	Description	Price (each)	Stock
	313054	REAR TIMING COVER	Enquire	To Order
	294786	REAR TIMING COVER	$1,106.75	To Order

Photo	Part No	Description	Price (each)	Stock
	282398	SCREW	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	297696	HYDRAULIC TIGHTENER	$132.40	To Order

Photo	Part No	Description	Price (each)	Stock
	322518	GASKET OIL PAN/ENGINE	$13.95	To Order

Photo	Part No	Description	Price (each)	Stock
	287000	TRANSMISSION TOOTHED WHEEL	$447.86	To Order

Photo	Part No	Description	Price (each)	Stock
	257626	CHAIN TENSIONER	$72.55	To Order

Photo	Part No	Description	Price (each)	Stock
	288341	WASHER	$19.15	To Order

Photo	Part No	Description	Price (each)	Stock
	163759	WASHER	$16.48	To Order

Photo	Part No	Description	Price (each)	Stock
	231621	Allen Screw M6 x 30	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	255494	SCREW	$3.40	To Order
	231625	SCREWM6X50	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREWM6X50	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW M6 X 25	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREWM6X45	$3.25	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREWM6X35	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	254979	STUD	Enquire	To Order
	13546834	STUD	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	240214	Crankshaft Stroke Gasket	$67.04	To Order

Photo	Part No	Description	Price (each)	Stock
	10337710	STUD	$10.98	To Order

Photo	Part No	Description	Price (each)	Stock
	281725	GASKET	$2.78	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$4.38	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	298694	THREADED INSERT	$7.61	To Order

View All

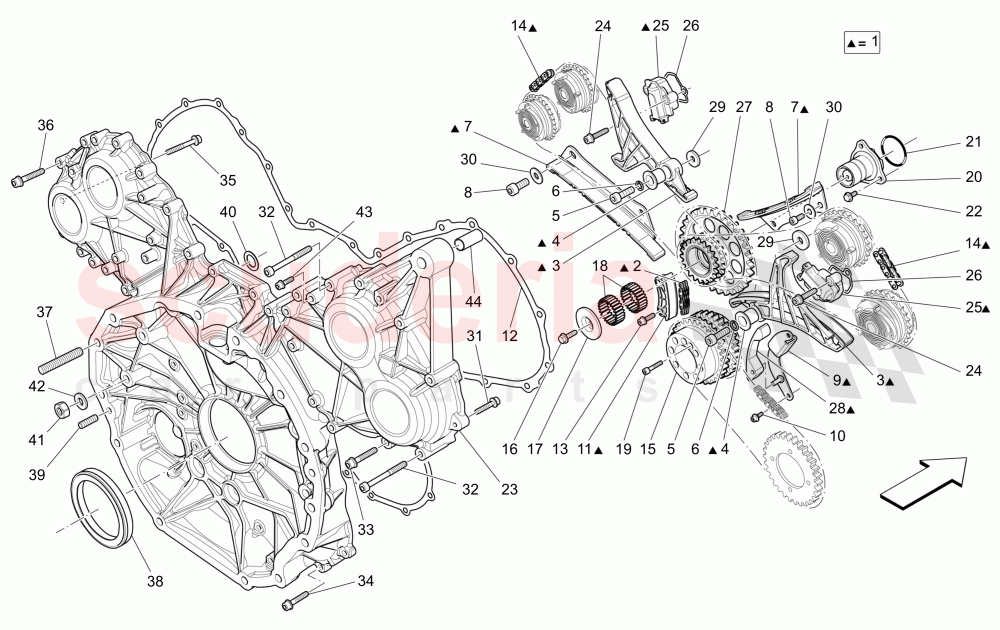

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	790545	OIL PUMP AND TIMING SYSTEM ASSEMBLY	790545 OIL PUMP AND TIMING SYSTEM ASSEMBLY	$1,656.25	1
2	271880	TRANSMISSION CHAIN	271880 TRANSMISSION CHAIN	$70.11	1
3	318677	MOBILE SLIDING BLOCK	318677 MOBILE SLIDING BLOCK	$136.08	2
4	175303	BUSHING	175303 BUSHING	$24.82	2
5	14306424	SCREW M8 X 25	14306424 SCREW M8 X 25 M8X25	$2.49	2
6	284900	WASHER	284900 WASHER D.8.1-12.7X2	$2.53	2
7	307544	FIXED SLIDING BLOCK	307544 FIXED SLIDING BLOCK	-	2	Enquire
8	14302821	SCREW	14302821 SCREW M8X18	$2.39	4
9	271856	PRIMARY MOBILE GUIDE SHOE SUPPORT	271856 PRIMARY MOBILE GUIDE SHOE SUPPORT	$25.60	1
10	282393	SCREW	282393 SCREW M6X14	$4.50	2
11	306094	Fixing Sliding Block	306094 Fixing Sliding Block	$39.31	1
12	317152	GASKET	317152 GASKET	-	1	Enquire
12	294727	GASKET	294727 GASKET IF ENGINE BLOCK WAS BE REPLACED WITH NEW 339344, PLEASE ORDER 312860	$265.95	1
13	282396	SCREW	282396 SCREW M6X22	$3.40	2
14	317852	TIMING CHAIN	317852 TIMING CHAIN	-	2	Enquire
15	286222	ENGINE SHAFT TOOTHED WHEEL	286222 ENGINE SHAFT TOOTHED WHEEL	$444.97	1
16	284898	SCREW	284898 SCREW M6X16	$16.48	1
17	304699	TRANSMISSION TOOTHED WHEEL SHOULDER	304699 TRANSMISSION TOOTHED WHEEL SHOULDER	$34.23	1
18	267808	ROLLER CAGE	267808 ROLLER CAGE	$22.65	2
19	245914	SCREW	245914 SCREW M5X20	$2.83	1
20	322199	SUPPORT	322199 SUPPORT	$171.85	1
21	154191	GASKET	154191 GASKET	$4.38	1
22	284898	SCREW	284898 SCREW M6X16	$16.48	3
23	313054	REAR TIMING COVER	313054 REAR TIMING COVER	-	1	Enquire
23	294786	REAR TIMING COVER	294786 REAR TIMING COVER IF ENGINE BLOCK WAS BE REPLACED WITH NEW 339344, PLEASE ORDER 313054	$1,106.75	1
24	282398	SCREW	282398 SCREW M6X30	$3.40	4
25	297696	HYDRAULIC TIGHTENER	297696 HYDRAULIC TIGHTENER	$132.40	2
26	322518	GASKET OIL PAN/ENGINE	322518 GASKET OIL PAN/ENGINE	$13.95	2
27	287000	TRANSMISSION TOOTHED WHEEL	287000 TRANSMISSION TOOTHED WHEEL	$447.86	1
28	257626	CHAIN TENSIONER	257626 CHAIN TENSIONER	$72.55	1
29	288341	WASHER	288341 WASHER D.8.2-22X3.5	$19.15	2
30	163759	WASHER	163759 WASHER D.8-20X2	$16.48	4
31	231621	Allen Screw M6 x 30	231621 Allen Screw M6 x 30 M6X30	$1.27	5
32	255494	SCREW	255494 SCREW M6X55	$3.40	8
32	231625	SCREWM6X50	231625 SCREWM6X50 M6X50 IF ENGINE BLOCK WAS BE REPLACED WITH NEW 339344, PLEASE ORDER 255494	$2.83	8
33	231625	SCREWM6X50	231625 SCREWM6X50 M6X40	$2.83	1
34	231620	SCREW M6 X 25	231620 SCREW M6 X 25 M6X25	$1.96	2
35	231624	SCREWM6X45	231624 SCREWM6X45 M6X45	$3.25	1
36	231622	SCREWM6X35	231622 SCREWM6X35 M6X35	$1.27	11
37	254979	STUD	254979 STUD	-	2	Enquire
37	13546834	STUD	13546834 STUD	$2.83	11
38	240214	Crankshaft Stroke Gasket	240214 Crankshaft Stroke Gasket	$67.04	1
39	10337710	STUD	10337710 STUD	$10.98	2
40	281725	GASKET	281725 GASKET	$2.78	2
41	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8 M10	$2.05	8
42	178348	WASHER D.10.2-20 X 2	178348 WASHER D.10.2-20 X 2 D.10.2-20X2.4	$4.38	8
43	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6X14	$3.53	2
44	298694	THREADED INSERT	298694 THREADED INSERT M12X1,5X30	$7.61	1
