Name: INTAKE MANIFOLD AND THROTTLE BODY
Rating: 5.0 (1 reviews)

INTAKE MANIFOLD AND THROTTLE BODY of Maserati Maserati Quattroporte (2013+) GTS

View All

Maserati Quattroporte (2013+) GTS - INTAKE MANIFOLD AND THROTTLE BODY

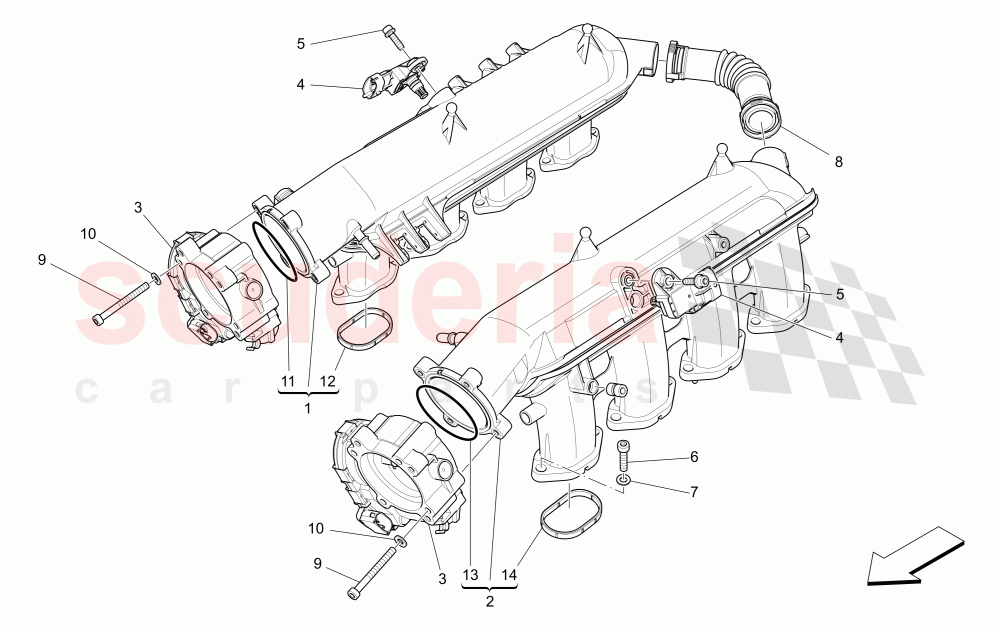

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	285819	RH INTAKE MANIFOLD ASSEMBLY	$397.40	To Order

Photo	Part No	Description	Price (each)	Stock
	285820	LH INTAKE MANIFOLD ASSEMBLY	$397.40	To Order

Photo	Part No	Description	Price (each)	Stock
	271572	THROTTLE BODY	$403.18	To Order

Photo	Part No	Description	Price (each)	Stock
	272880	PRESSURE AND TEMPERATURE SENSOR	$50.50	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW M6 X 22MM	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	14305474	SCREW	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	277295	CENTRAL COMPENSATOR	$50.14	To Order

Photo	Part No	Description	Price (each)	Stock
	14309224	SCREW	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	322327	GASKET	$41.83	To Order

Photo	Part No	Description	Price (each)	Stock
	309025	V8 Airbox Intake Manifold Gasket	$42.70	To Order

Photo	Part No	Description	Price (each)	Stock
	322327	GASKET	$41.83	To Order

Photo	Part No	Description	Price (each)	Stock
	309025	V8 Airbox Intake Manifold Gasket	$42.70	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	285819	RH INTAKE MANIFOLD ASSEMBLY	285819 RH INTAKE MANIFOLD ASSEMBLY SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$397.40	1
2	285820	LH INTAKE MANIFOLD ASSEMBLY	285820 LH INTAKE MANIFOLD ASSEMBLY SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$397.40	1
3	271572	THROTTLE BODY	271572 THROTTLE BODY SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$403.18	2
4	272880	PRESSURE AND TEMPERATURE SENSOR	272880 PRESSURE AND TEMPERATURE SENSOR SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$50.50	2
5	231619	SCREW M6 X 22MM	231619 SCREW M6 X 22MM M6X22 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$2.92	2
6	14305474	SCREW	14305474 SCREW M6X25 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$1.97	16
7	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$2.41	16
8	277295	CENTRAL COMPENSATOR	277295 CENTRAL COMPENSATOR SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$50.14	1
9	14309224	SCREW	14309224 SCREW M6X65 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$3.40	8
10	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5 D.6.4-11X1.6 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	$1.62	8
11	322327	GASKET	322327 GASKET	$41.83	1
12	309025	V8 Airbox Intake Manifold Gasket	309025 V8 Airbox Intake Manifold Gasket	$42.70	4
13	322327	GASKET	322327 GASKET	$41.83	1
14	309025	V8 Airbox Intake Manifold Gasket	309025 V8 Airbox Intake Manifold Gasket	$42.70	4
