REAR SUSPENSION (Available with: "GranSport MC Victory" Version) of Maserati Maserati GranSport Coupe (2005-2007)

View All

Maserati GranSport Coupe (2005-2007) - REAR SUSPENSION (Available with: "GranSport MC Victory" Version)

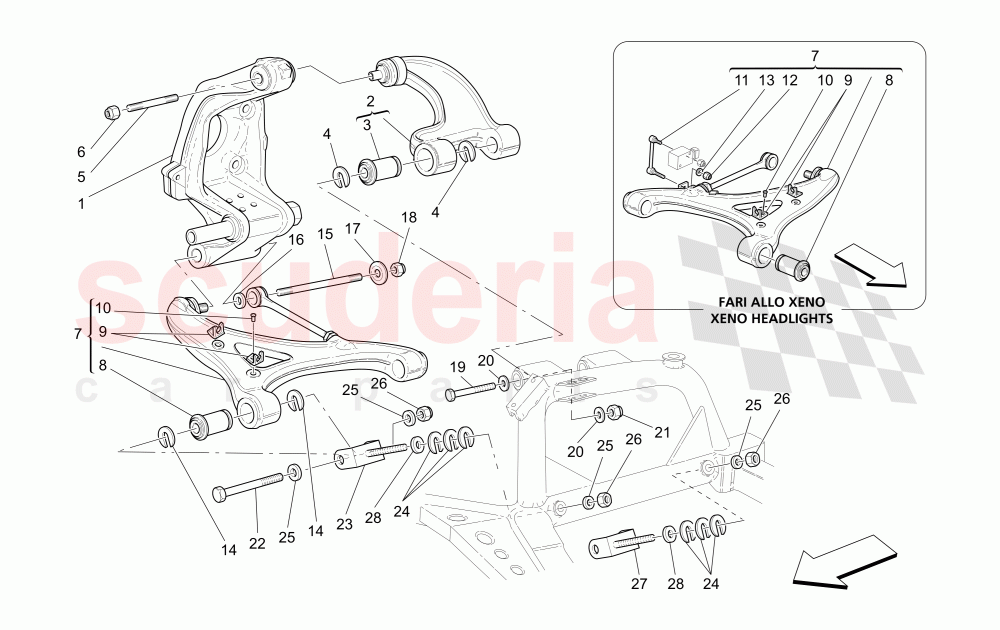

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	189335	L.H. REAR HUB HOLDER	Enquire	To Order
	189334	R.H. REAR HUB HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196779	COMPLETE UPPER LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186496	FLANBLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	377030380	WASHER	Enquire	To Order
	377030381	WASHER	Enquire	To Order
	377030382	WASHER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13530624	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14048825	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198027	RH REAR LOWER SUSPENSION ARM	Enquire	To Order
	198501	COMPLETE L.H. LOWER LEVER	Enquire	To Order
	196776	COMPLETE L.H. LOWER LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186494	RH SILENT BLOCK BUSH 14-34X61	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387000393	ABS CABLE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13684370	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188632	TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498805	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	377030378	WASHER	Enquire	To Order
	377030379	WASHER	Enquire	To Order
	377030380	WASHER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13531734	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13507521	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387000329	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14048825	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196071	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496825	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15503915	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196071	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196521	FRONT FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199646	WASHER	Enquire	To Order
	377030381	WASHER	Enquire	To Order
	377030382	WASHER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14496825	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15503915	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196522	REAR FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208783	SHIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	189335	L.H. REAR HUB HOLDER	189335 L.H. REAR HUB HOLDER	-	1	Enquire
1	189334	R.H. REAR HUB HOLDER	189334 R.H. REAR HUB HOLDER	-	1	Enquire
2	196779	COMPLETE UPPER LEVER	196779 COMPLETE UPPER LEVER	-	2	Enquire
3	186496	FLANBLOC	186496 FLANBLOC	-	4	Enquire
4	377030380	WASHER	377030380 WASHER Thickness mm. 1,00	-	-	Enquire
4	377030381	WASHER	377030381 WASHER Thickness mm. 1,75	-	-	Enquire
4	377030382	WASHER	377030382 WASHER Thickness mm. 3,00	-	-	Enquire
4	377030378	WASHER	377030378 WASHER Thickness mm. 0,50	-	-	Enquire
4	377030379	WASHER	377030379 WASHER Thickness mm. 0,75	-	-	Enquire
5	13530624	STUD	13530624 STUD	-	2	Enquire
6	14048825	NUT	14048825 NUT	-	2	Enquire
7	198027	RH REAR LOWER SUSPENSION ARM	198027 RH REAR LOWER SUSPENSION ARM Standard - FOR VEHICLES WITH ASSEMBLY	-	1	Enquire
7	198501	COMPLETE L.H. LOWER LEVER	198501 COMPLETE L.H. LOWER LEVER Optional- -Xeno headlights- -Not for USA and CDN	-	1	Enquire
7	196776	COMPLETE L.H. LOWER LEVER	196776 COMPLETE L.H. LOWER LEVER Standard - FOR VEHICLES WITH ASSEMBLY	-	1	Enquire
8	186494	RH SILENT BLOCK BUSH 14-34X61	186494 RH SILENT BLOCK BUSH 14-34X61	-	4	Enquire
9	387000393	ABS CABLE BRACKET	387000393 ABS CABLE BRACKET	-	4	Enquire
10	13684370	RIVET	13684370 RIVET	-	4	Enquire
11	188632	TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER	188632 TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER Valid for opt. Xeno headlights- -Not for USA and CDN	-	1	Enquire
12	14039614	NUT	14039614 NUT Valid for opt. Xeno headlights- -Not for USA and CDN	-	1	Enquire
13	14498805	WASHER	14498805 WASHER Valid for opt. Xeno headlights- -Not for USA and CDN	-	1	Enquire
14	377030378	WASHER	377030378 WASHER Thickness mm. 0,50	-	-	Enquire
14	377030379	WASHER	377030379 WASHER Thickness mm. 0,75	-	-	Enquire
14	377030380	WASHER	377030380 WASHER Thickness mm. 1,00	-	-	Enquire
14	377030381	WASHER	377030381 WASHER Thickness mm. 1,75	-	-	Enquire
14	377030382	WASHER	377030382 WASHER Thickness mm. 3,00	-	-	Enquire
15	13531734	STUD	13531734 STUD	-	2	Enquire
16	13507521	WASHER	13507521 WASHER	-	2	Enquire
17	387000329	WASHER	387000329 WASHER	-	2	Enquire
18	14048825	NUT	14048825 NUT	-	2	Enquire
19	196071	SCREW	196071 SCREW	-	4	Enquire
20	14496825	WASHER	14496825 WASHER	-	8	Enquire
21	15503915	NUT	15503915 NUT	-	4	Enquire
22	196071	SCREW	196071 SCREW	-	4	Enquire
23	196521	FRONT FORK	196521 FRONT FORK	-	2	Enquire
24	199646	WASHER	199646 WASHER Thickness mm. 0,40	-	-	Enquire
24	377030381	WASHER	377030381 WASHER Thickness mm. 1,75	-	-	Enquire
24	377030382	WASHER	377030382 WASHER Thickness mm. 3,00	-	-	Enquire
24	199644	WASHER	199644 WASHER Thickness mm. 0,20	-	-	Enquire
24	199645	WASHER	199645 WASHER Thickness mm. 0,30	-	-	Enquire
24	377030378	WASHER	377030378 WASHER Thickness mm. 0,50	-	-	Enquire
24	377030379	WASHER	377030379 WASHER Thickness mm. 0,75	-	-	Enquire
24	377030380	WASHER	377030380 WASHER Thickness mm. 1,00	-	-	Enquire
25	14496825	WASHER	14496825 WASHER	-	12	Enquire
26	15503915	NUT	15503915 NUT	-	8	Enquire
27	196522	REAR FORK	196522 REAR FORK	-	2	Enquire
28	208783	SHIM	208783 SHIM	-	4	Enquire
