Name: COMPLETE PEDAL BOARD UNIT
Rating: 4.6 (1 reviews)

COMPLETE PEDAL BOARD UNIT of Maserati Maserati GranSport Coupe (2005-2007)

View All

Maserati GranSport Coupe (2005-2007) - COMPLETE PEDAL BOARD UNIT

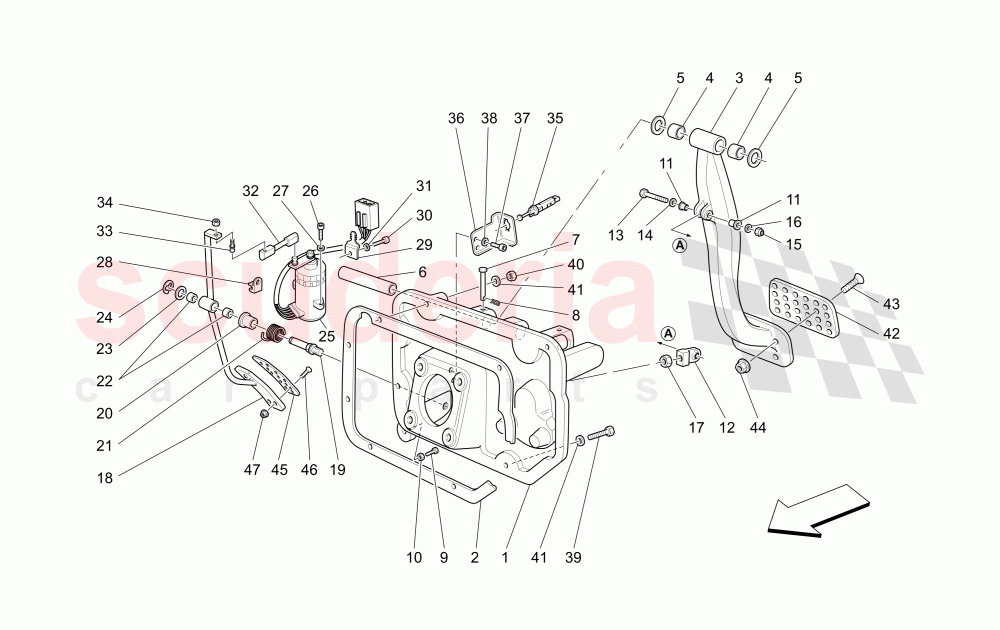

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	190840	PEDAL SUPPORT	$1,117.94	To Order

Photo	Part No	Description	Price (each)	Stock
	378496348	SUPPORT GASKET	$17.61	To Order

Photo	Part No	Description	Price (each)	Stock
	201995	BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318420320	BUSHING	$17.61	To Order

Photo	Part No	Description	Price (each)	Stock
	112128	SPACER WASHER	$44.38	To Order

Photo	Part No	Description	Price (each)	Stock
	378496329	PEDALS SUPPORT PIN	$89.59	To Order

Photo	Part No	Description	Price (each)	Stock
	378496377	PIN	$32.54	To Order

Photo	Part No	Description	Price (each)	Stock
	58841309	SAFETY CLIP	$5.90	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUTM8	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	191316	BUSHING	$76.64	To Order

Photo	Part No	Description	Price (each)	Stock
	184749	SERVOBRAKE PIN	$92.12	To Order

Photo	Part No	Description	Price (each)	Stock
	16044424	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	12654421	WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUTM8	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	201994	ACCELERATOR PEDAL	$541.28	To Order

Photo	Part No	Description	Price (each)	Stock
	186666	ACCELERATOR PEDAL PIN	$92.28	To Order

Photo	Part No	Description	Price (each)	Stock
	388400407	BUSHING	$86.50	To Order

Photo	Part No	Description	Price (each)	Stock
	388400364	RETURN SPRING FOR PEDAL	$107.05	To Order

Photo	Part No	Description	Price (each)	Stock
	318420334	BUSHING	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	388400346	WASHER	$5.79	To Order

Photo	Part No	Description	Price (each)	Stock
	11088076	CIRCLIP	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	183656	ACCELERATOR PEDAL POTENTIOMETER	$283.53	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW M6 X 22MM	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	383000318	RETAINING CLIP	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	383000315	PLATE	$8.00	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREW M6 X 12	$2.78	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	82476740	ACCELERATOR PEDALTIE ROD	$112.05	To Order

Photo	Part No	Description	Price (each)	Stock
	452054801	BALL PIN	$24.53	To Order

Photo	Part No	Description	Price (each)	Stock
	14075611	NUT	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	334064	BRAKE PEDAL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190853	BRAKE PEDAL SWITCH SUPPORT	$123.69	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREW M6 X 12	$2.78	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201103	PEDAL PLATE	$1,883.11	To Order

Photo	Part No	Description	Price (each)	Stock
	14441324	Countersunk Allen Screw M6 x 16	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	205025	ACCELERATOR PEDAL PLATE	$409.88	To Order

Photo	Part No	Description	Price (each)	Stock
	14440734	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	14058311	NUT	$1.97	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	190840	PEDAL SUPPORT	190840 PEDAL SUPPORT	$1,117.94	1
2	378496348	SUPPORT GASKET	378496348 SUPPORT GASKET	$17.61	1
3	201995	BRAKE PEDAL	201995 BRAKE PEDAL	-	1	Enquire
4	318420320	BUSHING	318420320 BUSHING	$17.61	2
5	112128	SPACER WASHER	112128 SPACER WASHER	$44.38	2
6	378496329	PEDALS SUPPORT PIN	378496329 PEDALS SUPPORT PIN	$89.59	1
7	378496377	PIN	378496377 PIN	$32.54	1
8	58841309	SAFETY CLIP	58841309 SAFETY CLIP	$5.90	1
9	16043634	SCREW	16043634 SCREW	$2.39	1
10	16102314	NUTM8	16102314 NUTM8 M8	$1.97	1
11	191316	BUSHING	191316 BUSHING	$76.64	2
12	184749	SERVOBRAKE PIN	184749 SERVOBRAKE PIN	$92.12	1
13	16044424	SCREW	16044424 SCREW	$2.39	1
14	12654421	WASHER	12654421 WASHER	$1.97	1
15	147985	NUT	147985 NUT	$1.97	1
16	14499421	WASHER	14499421 WASHER	$1.97	1
17	16102314	NUTM8	16102314 NUTM8	$1.97	1
18	201994	ACCELERATOR PEDAL	201994 ACCELERATOR PEDAL	$541.28	1
19	186666	ACCELERATOR PEDAL PIN	186666 ACCELERATOR PEDAL PIN	$92.28	1
20	388400407	BUSHING	388400407 BUSHING	$86.50	1
21	388400364	RETURN SPRING FOR PEDAL	388400364 RETURN SPRING FOR PEDAL	$107.05 MSRP: ~~109.57~~ (2.3% off)	1
22	318420334	BUSHING	318420334 BUSHING	$2.83	2
23	388400346	WASHER	388400346 WASHER	$5.79	1
24	11088076	CIRCLIP	11088076 CIRCLIP	$1.27	1
25	183656	ACCELERATOR PEDAL POTENTIOMETER	183656 ACCELERATOR PEDAL POTENTIOMETER	$283.53	1
26	231619	SCREW M6 X 22MM	231619 SCREW M6 X 22MM	$2.92	2
27	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5	$2.41	2
28	383000318	RETAINING CLIP	383000318 RETAINING CLIP	$1.97	1
29	383000315	PLATE	383000315 PLATE	$8.00	1
30	233600	SCREW M6 X 12	233600 SCREW M6 X 12	$2.78	1
31	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5	$2.41	1
32	82476740	ACCELERATOR PEDALTIE ROD	82476740 ACCELERATOR PEDALTIE ROD	$112.05	1
33	452054801	BALL PIN	452054801 BALL PIN	$24.53	1
34	14075611	NUT	14075611 NUT	$2.39	1
35	334064	BRAKE PEDAL SWITCH	334064 BRAKE PEDAL SWITCH	-	1	Enquire
36	190853	BRAKE PEDAL SWITCH SUPPORT	190853 BRAKE PEDAL SWITCH SUPPORT	$123.69	1
37	233600	SCREW M6 X 12	233600 SCREW M6 X 12	$2.78	2
38	127494	WASHER	127494 WASHER	$1.55	2
39	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	$2.92	4
40	147985	NUT	147985 NUT	$1.97	3
41	84653800	WASHER	84653800 WASHER	-	7	Enquire
42	201103	PEDAL PLATE	201103 PEDAL PLATE	$1,883.11 MSRP: ~~2,001.58~~ (5.9% off)	1
43	14441324	Countersunk Allen Screw M6 x 16	14441324 Countersunk Allen Screw M6 x 16	$2.05	4
44	14039614	NUT	14039614 NUT M6	$1.54	4
45	205025	ACCELERATOR PEDAL PLATE	205025 ACCELERATOR PEDAL PLATE	$409.88 MSRP: ~~434.83~~ (5.7% off)	1
46	14440734	SCREW	14440734 SCREW	$2.83	3
47	14058311	NUT	14058311 NUT	$1.97	3
