Gearbox Housings (Includes Gearbox Oil Radiator)

Maserati GranSport Coupe (2005-2007)

Find Your Part

Maserati GranSport Coupe (2005-2007) - GEARBOX HOUSINGS (Includes gearbox oil radiator)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
192736 COMPLETE GEARBOX Enquire To Order
Photo Part No Description Price (each) Stock
192734 FRONT COVER ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
182416 GEARBOX OIL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
182119 GEARBOX OIL FILTER O-RING Enquire To Order
Photo Part No Description Price (each) Stock
11199277 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10977624 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13543624 STUD Enquire To Order
Photo Part No Description Price (each) Stock
13546334 STUD Enquire To Order
Photo Part No Description Price (each) Stock
14058311 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12638178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
10902224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11194379 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
185714 OIL TILE Enquire To Order
Photo Part No Description Price (each) Stock
14039614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
150957 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
14456981 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
185719 OIL SEAL Enquire To Order
Photo Part No Description Price (each) Stock
183962 OIL DRAIN PLUG MAGNETIC 22X1.5 Enquire To Order
Photo Part No Description Price (each) Stock
10305111 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
16287524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16287734 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16288121 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14059421 NUT Enquire To Order
Photo Part No Description Price (each) Stock
14453581 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
214366 OIL RADIATOR COMPLETE WITH PIPES Enquire To Order
Photo Part No Description Price (each) Stock
211710 UNION FOR OIL RECYCLING Enquire To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
277407 UNION Enquire To Order
Photo Part No Description Price (each) Stock
187890 COIL SUPPORTING R.H. BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
187891 COIL SUPPORTING L.H. BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
181756 ELEMENT FOR FIXING QUICK Enquire To Order
Photo Part No Description Price (each) Stock
11730624 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16286121 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10297760 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
188077 STUD Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 Enquire To Order
Photo Part No Description Price (each) Stock
11500024 STUD Enquire To Order
Photo Part No Description Price (each) Stock
168729 ELECTRO Enquire To Order
Photo Part No Description Price (each) Stock
11500024 STUD Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14039614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
188004 CONNECTOR SUPPORT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
189350 CLIP Enquire To Order
View All

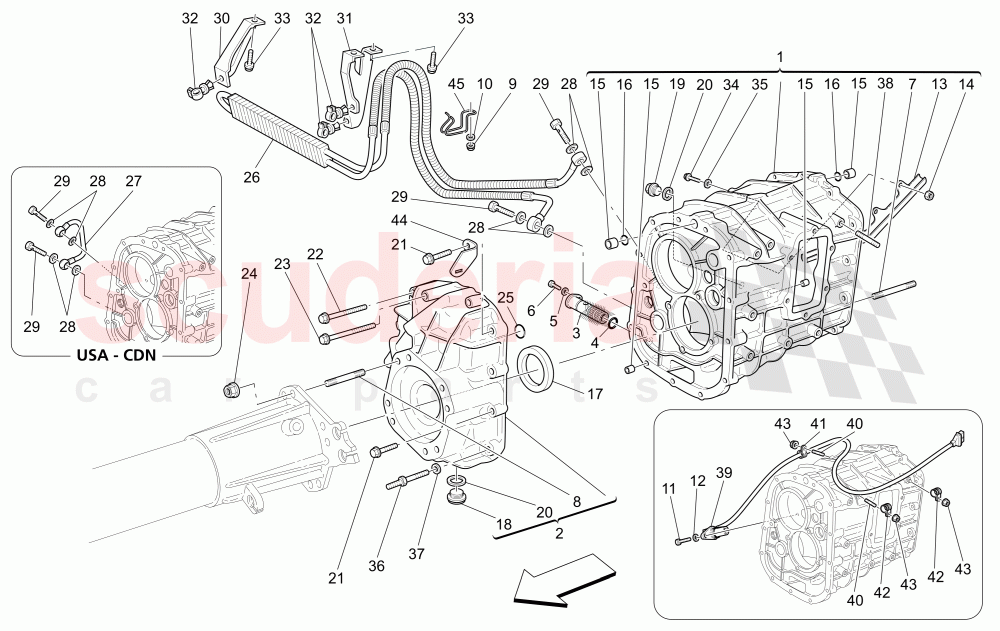

GEARBOX HOUSINGS (Includes gearbox oil radiator) of Maserati Maserati GranSport Coupe (2005-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 210144
GEARBOX ASSEMBLY 		- 1 Enquire
1 192736
COMPLETE GEARBOX 		- 1 Enquire
2 192734
FRONT COVER ASSEMBLY 		- 1 Enquire
3 182416
GEARBOX OIL FILTER 		- 1 Enquire
4 182119
GEARBOX OIL FILTER O-RING 		- 1 Enquire
5 11199277
WASHER 		- 1 Enquire
6 10977624
SCREW 		- 1 Enquire
7 13543624
STUD 		- 2 Enquire
8 13546334
STUD 		- 8 Enquire
9 14058311
NUT
Not for USA and CDN 		- 1 Enquire
10 12638178
Washer
D. 5,15 -11X 1 Not for USA and CDN 		- 1 Enquire
11 10902224
SCREW 		- 1 Enquire
12 11194379
WASHER 		- 1 Enquire
13 185714
OIL TILE 		- 1 Enquire
14 14039614
NUT 		- 2 Enquire
15 150957
CENTERING DOWEL 		- 4 Enquire
16 14456981
O.R. GASKET 		- 2 Enquire
17 185719
OIL SEAL 		- 1 Enquire
18 183962
OIL DRAIN PLUG MAGNETIC 22X1.5 		- 1 Enquire
19 10305111
THREADED PLUG 		- 1 Enquire
20 10263460
COPPER GASKET D.28-22.3 X 1.5 		- 2 Enquire
21 16287524
SCREW 		- 5 Enquire
22 16287734
SCREW 		- 3 Enquire
23 16288121
SCREW 		- 1 Enquire
24 14059421
NUT 		- 8 Enquire
25 14453581
O.R. GASKET 		- 1 Enquire
26 214366
OIL RADIATOR COMPLETE WITH PIPES
Not for USA and CDN 		- 1 Enquire
27 211710
UNION FOR OIL RECYCLING
Valid for USA and CDN 		- 1 Enquire
28 10280060
WASHER COPPER D14. 20 X 1.5 		- 4 Enquire
29 277407
UNION 		- 2 Enquire
30 187890
COIL SUPPORTING R.H. BRACKET
Not for USA and CDN 		- 1 Enquire
31 187891
COIL SUPPORTING L.H. BRACKET
Not for USA and CDN 		- 1 Enquire
32 181756
ELEMENT FOR FIXING QUICK
Not for USA and CDN 		- 3 Enquire
33 11730624
SCREW
Not for USA and CDN 		- 3 Enquire
34 16286121
SCREW 		- 2 Enquire
35 10297760
GASKET 		- 2 Enquire
36 188077
STUD 		- 4 Enquire
37 12601374
WASHERD. 8,40-15X 0,8
D. 8,40-15X 0,8 		- 4 Enquire
38 11500024
STUD 		- 1 Enquire
39 168729
ELECTRO 		- 1 Enquire
40 11500024
STUD 		- 2 Enquire
41 10441290
BRACKET WITH SHEATH 		- 1 Enquire
42 10441290
BRACKET WITH SHEATH 		- 2 Enquire
43 14039614
NUT
M6 		- 3 Enquire
44 188004
CONNECTOR SUPPORT BRACKET 		- 1 Enquire
45 189350
CLIP
Not for USA and CDN 		- 1 Enquire
