Front Underchassis (Available With: "Gransport Mc Victory" Version)

Maserati GranSport Coupe (2005-2007)

Find Your Part

Maserati GranSport Coupe (2005-2007) - FRONT UNDERCHASSIS (Available with: "GranSport MC Victory" Version)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
67650500 FRONT UNDERFRAME Enquire To Order
Photo Part No Description Price (each) Stock
184141 ANTI-HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
14039614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
11306924 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12620774 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12626224 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
66318700 REAR PLATE Enquire To Order
Photo Part No Description Price (each) Stock
14422574 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11198674 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10732531 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14422574 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10732531 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
191790 PAD LOWER SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
14039614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
13579224 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
66601300 PLATE Enquire To Order
66601400 PLATE Enquire To Order
66601200 PLATE Enquire To Order
View All

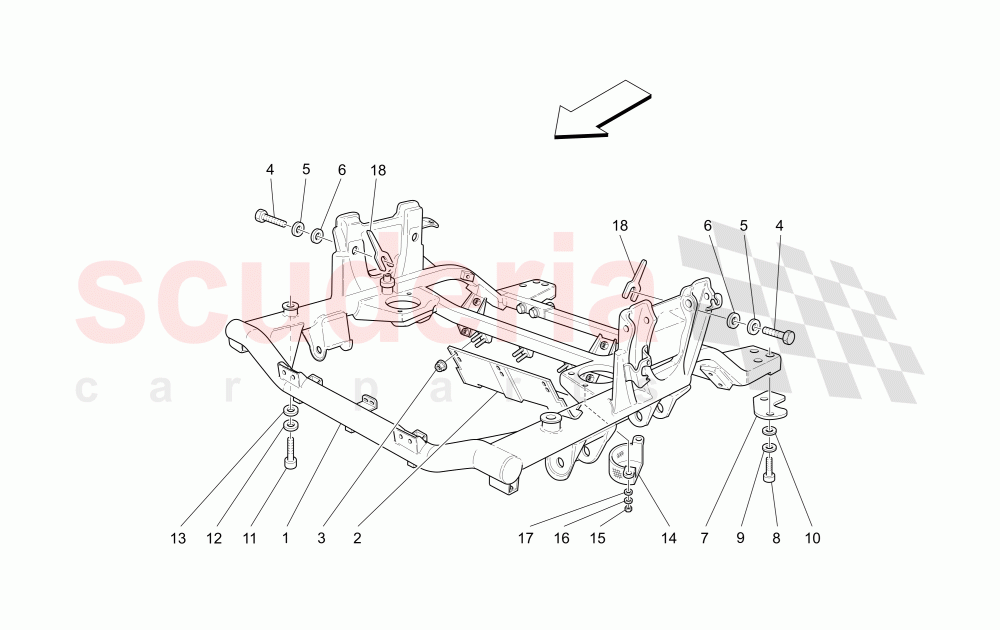

FRONT UNDERCHASSIS (Available with: "GranSport MC Victory" Version) of Maserati Maserati GranSport Coupe (2005-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 67650500
FRONT UNDERFRAME 		- 1 Enquire
2 184141
ANTI-HEAT SHIELD 		- 1 Enquire
3 14039614
NUT
M 6 		- 6 Enquire
4 11306924
SCREW 		- 4 Enquire
5 12620774
WASHER 		- 4 Enquire
6 12626224
WASHER 		- 4 Enquire
7 66318700
REAR PLATE 		- 2 Enquire
8 14422574
SCREW 		- 4 Enquire
9 11198674
WASHER 		- 4 Enquire
10 10732531
WASHER 		- 4 Enquire
11 14422574
SCREW 		- 4 Enquire
12 84653800
WASHER 		- 4 Enquire
13 10732531
WASHER 		- 4 Enquire
14 191790
PAD LOWER SHIELD 		- 2 Enquire
15 14039614
NUT 		- 4 Enquire
16 13579224
WASHER 		- 4 Enquire
17 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5 		- 4 Enquire
18 66601300
PLATE
Tickness mm. 1 		- - Enquire
18 66601400
PLATE
Thickness mm. 2 		- - Enquire
18 66601200
PLATE
Tickness mm. 0,5 		- - Enquire
