Name: STEERING RACK AND HYDRAULIC STEERING PUMP (Available with: "GranSport MC Victory" Version)
Rating: 5.0 (1 reviews)

STEERING RACK AND HYDRAULIC STEERING PUMP (Available with: "GranSport MC Victory" Version) of Maserati Maserati GranSport Coupe (2005-2007)

View All

Maserati GranSport Coupe (2005-2007) - STEERING RACK AND HYDRAULIC STEERING PUMP (Available with: "GranSport MC Victory" Version)

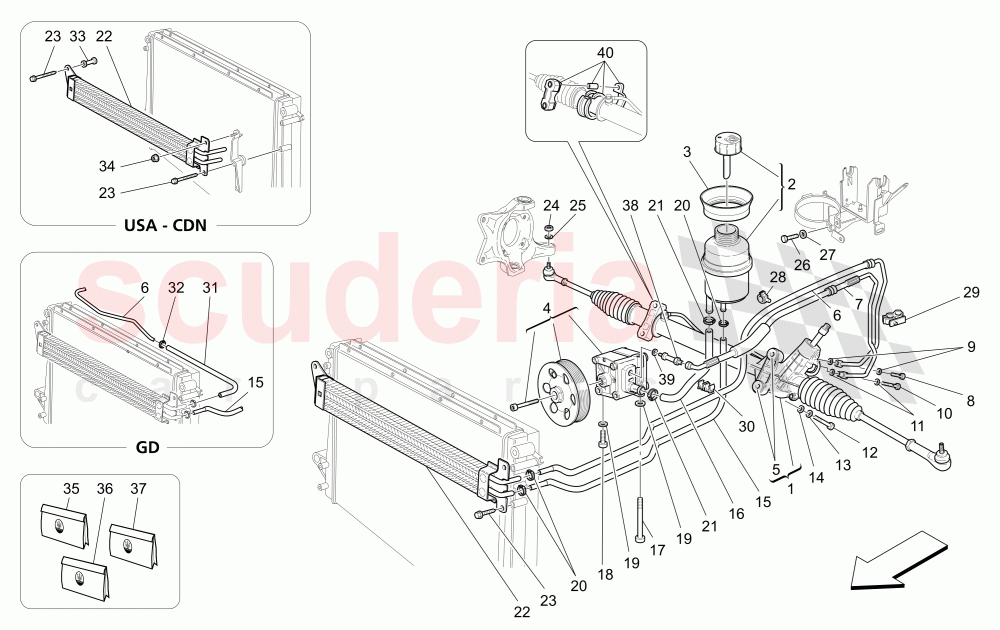

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	207276	STEERING RACK WITH POWER STEERING	$4,094.55	To Order
	207275	STEERING RACK WITH POWER STEERING	$8,798.09	To Order

Photo	Part No	Description	Price (each)	Stock
	270104	OIL TANK FOR HYDRAULIC POWER STEERING	$54.36	To Order

Photo	Part No	Description	Price (each)	Stock
	179301	RING	$31.28	To Order

Photo	Part No	Description	Price (each)	Stock
	187920	HYDRAULIC STEERING PUMP	$720.50	To Order

Photo	Part No	Description	Price (each)	Stock
	980138228	STEERING RACK SILENTBLOCK	$24.65	To Order

Photo	Part No	Description	Price (each)	Stock
	188970	PIPE FROM STEERING BOX TO EXCHANGER	$132.88	To Order
	193191	PIPE FROM STEERING BOX TO EXCHANGER	$267.18	To Order

Photo	Part No	Description	Price (each)	Stock
	212002	PIPE FROM PUMP TO STEERING RACK	$188.27	To Order
	193190	PIPE FROM PUMP TO STEERING RACK	$291.97	To Order

Photo	Part No	Description	Price (each)	Stock
	207273	UNION	$36.35	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	Gasket	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	207274	UNION	$43.12	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	206926	SCREW	$10.02	To Order

Photo	Part No	Description	Price (each)	Stock
	11198374	WASHER	$3.11	To Order

Photo	Part No	Description	Price (each)	Stock
	12641024	WASHER	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	188969	PIPE FROM EXCHANGER TO TANK	$50.14	To Order

Photo	Part No	Description	Price (each)	Stock
	198482	PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP	$49.98	To Order
	192205	PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP	$156.94	To Order

Photo	Part No	Description	Price (each)	Stock
	180604	SCREW	$11.82	To Order

Photo	Part No	Description	Price (each)	Stock
	198519	SCREW	$19.73	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHERD.8.4-16X1.4	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	SCREW COLLAR	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	231013	POWER STEERING EXCHANGER	$2,653.72	To Order
	231013	POWER STEERING EXCHANGER	$2,653.72	To Order

Photo	Part No	Description	Price (each)	Stock
	15699804	SCREW	$1.97	To Order
	15698504	SCREW	$10.98	To Order

Photo	Part No	Description	Price (each)	Stock
	14047421	NUT	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREWM6X50	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	10523401	WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14631387	CLIP	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	177805	CLIP	$5.90	To Order

Photo	Part No	Description	Price (each)	Stock
	190953	CLIP	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	193192	SLEEVE FROM HYDRODRIVE TO EXCHANGER	$38.38	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	193719	SPACER	$10.86	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	980001704	PIPES REPLACEMENT KIT FOR STEERING RACK	$230.09	To Order
	980001703	PIPES REPLACEMENT KIT FOR STEERING RACK	$242.50	To Order

Photo	Part No	Description	Price (each)	Stock
	980001706	Ball Joint Replacement Kit for Steering Rack	$270.28	To Order

Photo	Part No	Description	Price (each)	Stock
	980001707	Gaitor Kit (Steering Rack)	$164.54	To Order

Photo	Part No	Description	Price (each)	Stock
	212083	UNION	$43.45	To Order

Photo	Part No	Description	Price (each)	Stock
	675000691	GASKET	$2.14	To Order
	675000691	GASKET	$2.14	To Order

Photo	Part No	Description	Price (each)	Stock
	980138275	STEERING RACK FIXING KIT	$221.85	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	207276	STEERING RACK WITH POWER STEERING	207276 STEERING RACK WITH POWER STEERING Not for RHD	$4,094.55	1
1	207275	STEERING RACK WITH POWER STEERING	207275 STEERING RACK WITH POWER STEERING Valid for RHD	$8,798.09	1
2	270104	OIL TANK FOR HYDRAULIC POWER STEERING	270104 OIL TANK FOR HYDRAULIC POWER STEERING	$54.36	1
3	179301	RING	179301 RING	$31.28	1
4	187920	HYDRAULIC STEERING PUMP	187920 HYDRAULIC STEERING PUMP	$720.50	1
5	980138228	STEERING RACK SILENTBLOCK	980138228 STEERING RACK SILENTBLOCK	$24.65	4
6	188970	PIPE FROM STEERING BOX TO EXCHANGER	188970 PIPE FROM STEERING BOX TO EXCHANGER Not for RHD	$132.88	1
6	193191	PIPE FROM STEERING BOX TO EXCHANGER	193191 PIPE FROM STEERING BOX TO EXCHANGER Valid for RHD	$267.18	1
7	212002	PIPE FROM PUMP TO STEERING RACK	212002 PIPE FROM PUMP TO STEERING RACK Not for RHD	$188.27	1
7	193190	PIPE FROM PUMP TO STEERING RACK	193190 PIPE FROM PUMP TO STEERING RACK Valid for RHD	$291.97	1
8	207273	UNION	207273 UNION	$36.35	1
9	10298460	Gasket	10298460 Gasket	$1.27	2
10	207274	UNION	207274 UNION	$43.12	1
11	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	$1.32	2
12	206926	SCREW	206926 SCREW	$10.02	4
13	11198374	WASHER	11198374 WASHER	$3.11	4
14	12641024	WASHER	12641024 WASHER	$3.40	4
15	188969	PIPE FROM EXCHANGER TO TANK	188969 PIPE FROM EXCHANGER TO TANK	$50.14	1
16	198482	PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP	198482 PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP Not for RHD	$49.98	1
16	192205	PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP	192205 PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP Valid for RHD	$156.94	1
17	180604	SCREW	180604 SCREW	$11.82	1
18	198519	SCREW	198519 SCREW	$19.73	1
19	11193874	WASHERD.8.4-16X1.4	11193874 WASHERD.8.4-16X1.4 D.8.4-16X1.4	$1.62	2
20	262109	COLLAR	262109 COLLAR	$2.69	3
21	13000490	SCREW COLLAR	13000490 SCREW COLLAR	$1.97	2
22	231013	POWER STEERING EXCHANGER	231013 POWER STEERING EXCHANGER	$2,653.72	1
22	231013	POWER STEERING EXCHANGER	231013 POWER STEERING EXCHANGER Valid for USA and CDN	$2,653.72	1
23	15699804	SCREW	15699804 SCREW Not for USA and CDN	$1.97	3
23	15698504	SCREW	15698504 SCREW Valid for USA and CDN	$10.98 MSRP: ~~12.94~~ (15.1% off)	2
24	14047421	NUT	14047421 NUT	$2.39	2
25	12626224	WASHER	12626224 WASHER	$2.53	2
26	231625	SCREWM6X50	231625 SCREWM6X50	$2.83	1
27	10523401	WASHER	10523401 WASHER	$1.97	1
28	14631387	CLIP	14631387 CLIP	$1.27	1
29	177805	CLIP	177805 CLIP	$5.90	1
30	190953	CLIP	190953 CLIP	$5.22	1
31	193192	SLEEVE FROM HYDRODRIVE TO EXCHANGER	193192 SLEEVE FROM HYDRODRIVE TO EXCHANGER Valid for RHD	$38.38	1
32	262109	COLLAR	262109 COLLAR Valid for RHD	$2.69	1
33	193719	SPACER	193719 SPACER Valid for USA and CDN	$10.86	1
34	14040614	NUT	14040614 NUT Valid for USA and CDN	$1.97	1
35	980001704	PIPES REPLACEMENT KIT FOR STEERING RACK	980001704 PIPES REPLACEMENT KIT FOR STEERING RACK Valid for RHD	$230.09	1
35	980001703	PIPES REPLACEMENT KIT FOR STEERING RACK	980001703 PIPES REPLACEMENT KIT FOR STEERING RACK Not for RHD	$242.50	1
36	980001706	Ball Joint Replacement Kit for Steering Rack	980001706 Ball Joint Replacement Kit for Steering Rack	$270.28	2
37	980001707	Gaitor Kit (Steering Rack)	980001707 Gaitor Kit (Steering Rack)	$164.54	1
38	212083	UNION	212083 UNION Not for RHD	$43.45	1
39	675000691	GASKET	675000691 GASKET Not for RHD	$2.14	1
39	675000691	GASKET	675000691 GASKET Not for RHD	$2.14	1
40	980138275	STEERING RACK FIXING KIT	980138275 STEERING RACK FIXING KIT	$221.85	1
