MAIN SHAFT GEARS of Maserati Maserati GranSport Coupe (2005-2007)

View All

Maserati GranSport Coupe (2005-2007) - MAIN SHAFT GEARS

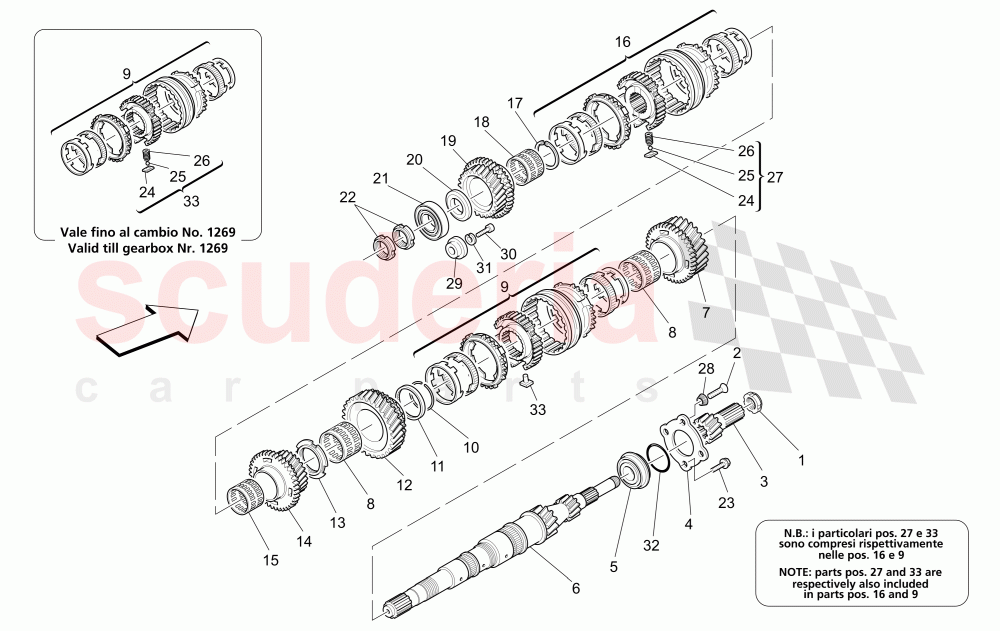

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	182359	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14442021	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199531	REVERSE DRIVING GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183984	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184019	BALL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182327	GEARBOX MAIN SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182329	PINION FOR 5th GEAR	Enquire	To Order
	221033	PINION FOR 5th GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184015	ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185166	5th AND 6th GEAR COMPLETE SYNCHRONIZER	Enquire	To Order
	219691	5th AND 6th GEAR COMPLETE SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184011	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183970	SPACER FOR PINION FOR 6th GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211816	PINION FOR 6th GEAR	Enquire	To Order
	221037	PINION FOR 6th GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184010	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182338	PINION FOR 3rd GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184014	ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185165	3rd AND 4th GEAR COPLETE SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184042	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184005	ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182345	PINION FOR 4th GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183973	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184021	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184012	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188320	PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12606979	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183985	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238108	Split Washer D. 6.1- 9.9X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14454281	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188320	PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT	Enquire	To Order
	193440	PADS/SYNCHRO REVERSE GEAR KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	182359	RING NUT	182359 RING NUT	-	1	Enquire
2	14442021	SCREW	14442021 SCREW	-	2	Enquire
3	199531	REVERSE DRIVING GEAR	199531 REVERSE DRIVING GEAR	-	1	Enquire
4	183984	PLATE	183984 PLATE	-	1	Enquire
5	184019	BALL BEARING	184019 BALL BEARING	-	1	Enquire
6	182327	GEARBOX MAIN SHAFT	182327 GEARBOX MAIN SHAFT	-	1	Enquire
7	182329	PINION FOR 5th GEAR	182329 PINION FOR 5th GEAR Valid till gearbox Nr. 1269	-	1	Enquire
7	221033	PINION FOR 5th GEAR	221033 PINION FOR 5th GEAR Valid from gearbox Nr. 1270	-	1	Enquire
8	184015	ROLLER CAGE	184015 ROLLER CAGE	-	2	Enquire
9	185166	5th AND 6th GEAR COMPLETE SYNCHRONIZER	185166 5th AND 6th GEAR COMPLETE SYNCHRONIZER Valid till gearbox Nr. 1269	-	1	Enquire
9	219691	5th AND 6th GEAR COMPLETE SYNCHRONIZER	219691 5th AND 6th GEAR COMPLETE SYNCHRONIZER Valid from gearbox Nr. 1270	-	1	Enquire
10	184011	CIRCLIP	184011 CIRCLIP	-	1	Enquire
11	183970	SPACER FOR PINION FOR 6th GEAR	183970 SPACER FOR PINION FOR 6th GEAR	-	1	Enquire
12	211816	PINION FOR 6th GEAR	211816 PINION FOR 6th GEAR Valid till gearbox Nr. 1269	-	1	Enquire
12	221037	PINION FOR 6th GEAR	221037 PINION FOR 6th GEAR Valid from gearbox Nr. 1270	-	1	Enquire
13	184010	RING NUT	184010 RING NUT	-	1	Enquire
14	182338	PINION FOR 3rd GEAR	182338 PINION FOR 3rd GEAR	-	1	Enquire
15	184014	ROLLER CAGE	184014 ROLLER CAGE	-	1	Enquire
16	185165	3rd AND 4th GEAR COPLETE SYNCHRONIZER	185165 3rd AND 4th GEAR COPLETE SYNCHRONIZER	-	1	Enquire
17	184042	CIRCLIP	184042 CIRCLIP	-	1	Enquire
18	184005	ROLLER CAGE	184005 ROLLER CAGE	-	1	Enquire
19	182345	PINION FOR 4th GEAR	182345 PINION FOR 4th GEAR	-	1	Enquire
20	183973	WASHER	183973 WASHER	-	1	Enquire
21	184021	ROLLER BEARING	184021 ROLLER BEARING	-	1	Enquire
22	184012	RING NUT	184012 RING NUT	-	2	Enquire
23	13839224	SCREW	13839224 SCREW	-	2	Enquire
27	188320	PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT	188320 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT	-	1	Enquire
28	12606979	WASHER	12606979 WASHER	-	2	Enquire
29	183985	BUSHING	183985 BUSHING	-	1	Enquire
30	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
31	238108	Split Washer D. 6.1- 9.9X1.6	238108 Split Washer D. 6.1- 9.9X1.6	-	1	Enquire
32	14454281	O.R. GASKET	14454281 O.R. GASKET	-	1	Enquire
33	188320	PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT	188320 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT Valid till gearbox Nr. 1269	-	1	Enquire
33	193440	PADS/SYNCHRO REVERSE GEAR KIT	193440 PADS/SYNCHRO REVERSE GEAR KIT Valid from gearbox Nr. 1270	-	1	Enquire
