Antievaporation System (Available With: "Gransport Mc Victory" Version)

Maserati GranSport Coupe (2005-2007)

Find Your Part

Maserati GranSport Coupe (2005-2007) - ANTIEVAPORATION SYSTEM (Available with: "GranSport MC Victory" Version)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
220074 Fuel Vapour Filter Enquire To Order
Photo Part No Description Price (each) Stock
218587 PIPE FROM DISAREATOR TO FUEL VAPOUR FILTER Enquire To Order
Photo Part No Description Price (each) Stock
188124 PIPE FROM FUEL VAPOUR FILTER TO WHELLHOUSE Enquire To Order
Photo Part No Description Price (each) Stock
10396880 INTERMEDIATE RING Enquire To Order
Photo Part No Description Price (each) Stock
181712 PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR Enquire To Order
Photo Part No Description Price (each) Stock
190519 COMPLETE UNDERFLOOR TUBE Enquire To Order
Photo Part No Description Price (each) Stock
181703 WASHING VALVE INLET TUBE Enquire To Order
Photo Part No Description Price (each) Stock
180861 WASHER VALVE Enquire To Order
Photo Part No Description Price (each) Stock
174623 BUFFER FOR SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
181704 WASHING VALVE OUTLET PIPE Enquire To Order
Photo Part No Description Price (each) Stock
318720333 PIPE Enquire To Order
Photo Part No Description Price (each) Stock
13432070 Screw Collar D15.7mm Enquire To Order
Photo Part No Description Price (each) Stock
178430 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
187840 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
190409 CLIP Enquire To Order
View All

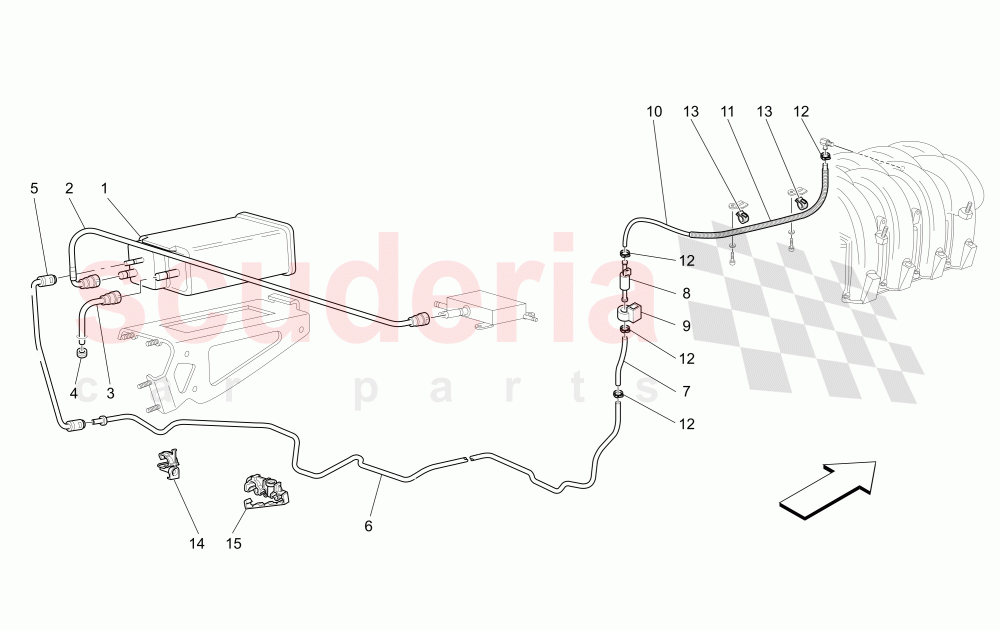

ANTIEVAPORATION SYSTEM (Available with: "GranSport MC Victory" Version) of Maserati Maserati GranSport Coupe (2005-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 220074
Fuel Vapour Filter 		- 1 Enquire
2 218587
PIPE FROM DISAREATOR TO FUEL VAPOUR FILTER 		- 1 Enquire
3 188124
PIPE FROM FUEL VAPOUR FILTER TO WHELLHOUSE 		- 1 Enquire
4 10396880
INTERMEDIATE RING 		- 1 Enquire
5 181712
PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR 		- 1 Enquire
6 190519
COMPLETE UNDERFLOOR TUBE 		- 1 Enquire
7 181703
WASHING VALVE INLET TUBE 		- 1 Enquire
8 180861
WASHER VALVE 		- 1 Enquire
9 174623
BUFFER FOR SUPPORT 		- 1 Enquire
10 181704
WASHING VALVE OUTLET PIPE 		- 1 Enquire
11 318720333
PIPE
Supplied in meters- -(Minimum quantity 1m. or multiples) 		- - Enquire
12 13432070
Screw Collar D15.7mm 		- 4 Enquire
13 178430
CLIP 		- 2 Enquire
14 187840
CLIP 		- - Enquire
15 190409
CLIP 		- - Enquire
