Lamborghini Gallardo LP550 Spyder - LIGHTS 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

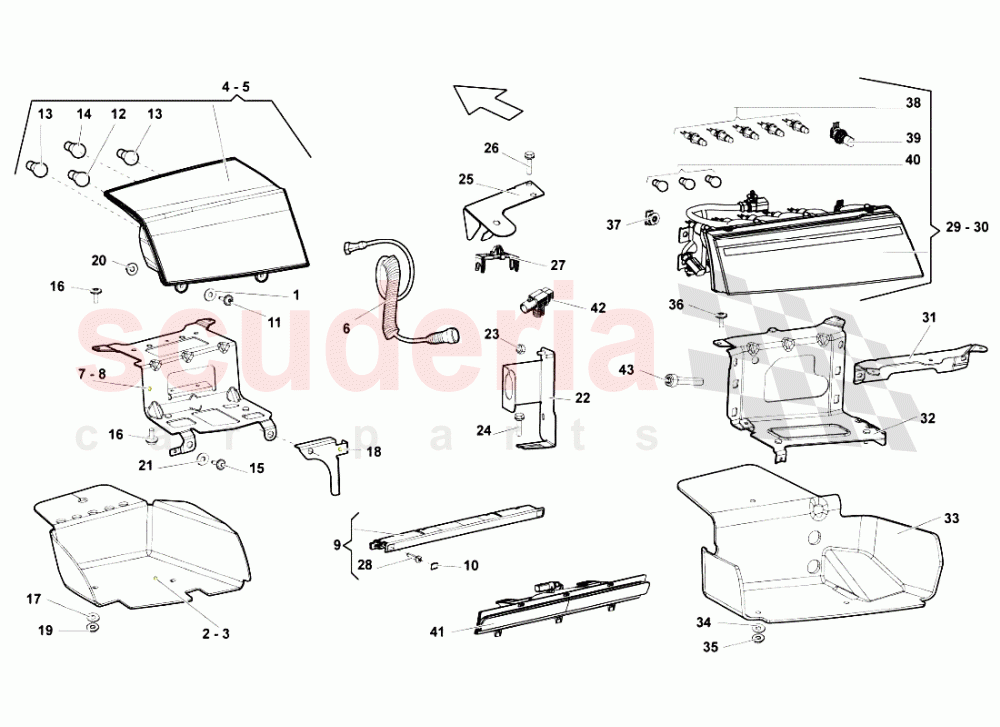

LIGHTS 2 of Lamborghini Lamborghini Gallardo LP550 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
006 407971170F
HARNESS FOR ENGINE HOOD (BRAKE LIGHTS) 		$301.09 1
006 407971170G
HARNESS FOR ENGINE HOOD (BRAKE LIGHTS - REAR VIEW CAMERA) 		$1,215.05 1
009 4B9945097A
Stop Lamp 		$121.12 1
010 4B9945289
STOP LAMP COVER 		$0.30 (95.9% off) 2
025 407971830B
SCREW (FOR COUP - MODEL) - 		$230.53 1
026 N10621601
HEX SOCKET OVAL HEAD COLLARED 		$2.29 2
029 400945095P
LH Rear Lamp 		$2,486.56 1
030 400945096P
RH REAR LAMP 		$2,486.56 1
031 400813698A
RH REAR LAMP BRACKET 		$93.08 1
031 400813697A
LH REAR LAMP BRACKET 		$93.08 1
032 408813392E
RH REAR LAMP BRACKET 		$418.01 1
032 408813391E
LH REAR LAMP BRACKET 		$198.26 1
033 408863777
LH REAR LAMP HEAT SHIELD 		$486.56 1
033 408863778
RH REAR LAMP HEAT SHIELD 		$604.86 1
034 N0116946
WASHER 		$0.42 4
035 N01508213
HEXAGON COLLAR NUT 		$0.21 4
036 N90847903
Screw M6X15 		$1.16 4
037 8E0806193
COMPENSATING PIECE 		$17.58 8
038 N01775311
LAMP WY5W 		$7.87 10
039 N10591501
BULB (W16W -12V) 		$6.98 2
040 N10727901
BULB (19W -12V) 		$52.64 6
041 420945703
Rear Fog Lamp 		$168.68 1
042 400937546
RVC CONNECTION 		$4.37 1
043 N10472101
SCREW M6X40 		$1.63 (77.1% off) 8
