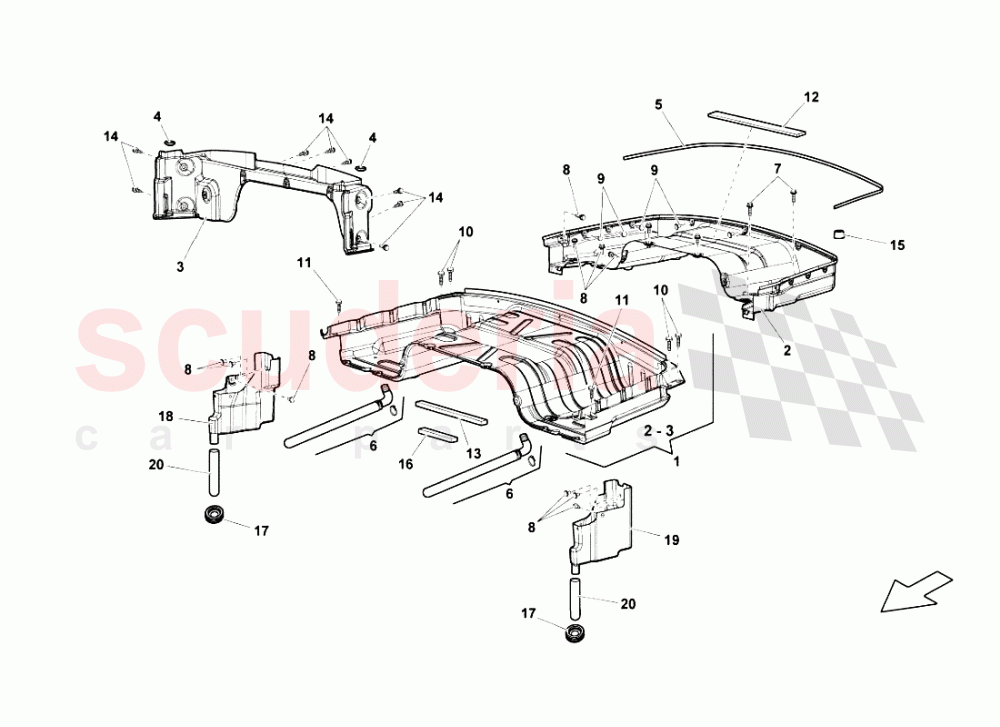

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	407813613G	FOLDING-TOP (INCLUDES REF. 2 - 3)	407813613G FOLDING-TOP (INCLUDES REF. 2 - 3)	$3,965.04	1
002	407863405A	LINING CONTAINER	407863405A LINING CONTAINER	$1,868.29	1
003	407864401E	LINING FRONT,TOP BOX	407864401E LINING FRONT,TOP BOX	$603.51	1
004	4D0803583B	PLUG	4D0803583B PLUG	$5.85 MSRP: ~~7.03~~ (16.8% off)	2
005	407825402	SEAL,TOP BOX	407825402 SEAL,TOP BOX	$169.36	1
006	407871353	WATER DRAIN	407871353 WATER DRAIN	$407.26	2
007	N10553801	SCREW M6X45	N10553801 SCREW M6X45	$1.34 MSRP: ~~7.18~~ (81.3% off)	4
008	N90917201	SCREW	N90917201 SCREW	$0.98 MSRP: ~~7.27~~ (86.5% off)	8
009	400863119	BUNGS	400863119 BUNGS	$0.42 MSRP: ~~7.33~~ (94.3% off)	17
010	N90848003	HEX COLLARED BOLT	N90848003 HEX COLLARED BOLT	$4.64	4
011	N90847903	Screw M6X15	N90847903 Screw M6X15	$1.16	2
012	407813999A	GASKET	407813999A GASKET	$61.30	1
013	407825418	GASKET	407825418 GASKET	$5.59	4
014	WHT000757	SCREW	WHT000757 SCREW	$5.19	9
015	407813241	PUFFER	407813241 PUFFER	$455.66	2
016	407825417	GASKET	407825417 GASKET	$3.71	1
017	400825837	RUBBER RING	400825837 RUBBER RING	$7.53	2
018	407813953B	WATER DRIP TRAY LEFT	407813953B WATER DRIP TRAY LEFT	$235.88	1
019	407813954B	WATER DRIP TRAY RIGHT	407813954B WATER DRIP TRAY RIGHT	$235.88	1
020	407813921A	WATER DRAIN PIPE	407813921A WATER DRAIN PIPE	$200.26	2
