CENTER FRAME ELEMENTS 1 of Lamborghini Lamborghini Gallardo LP550 Spyder

View All

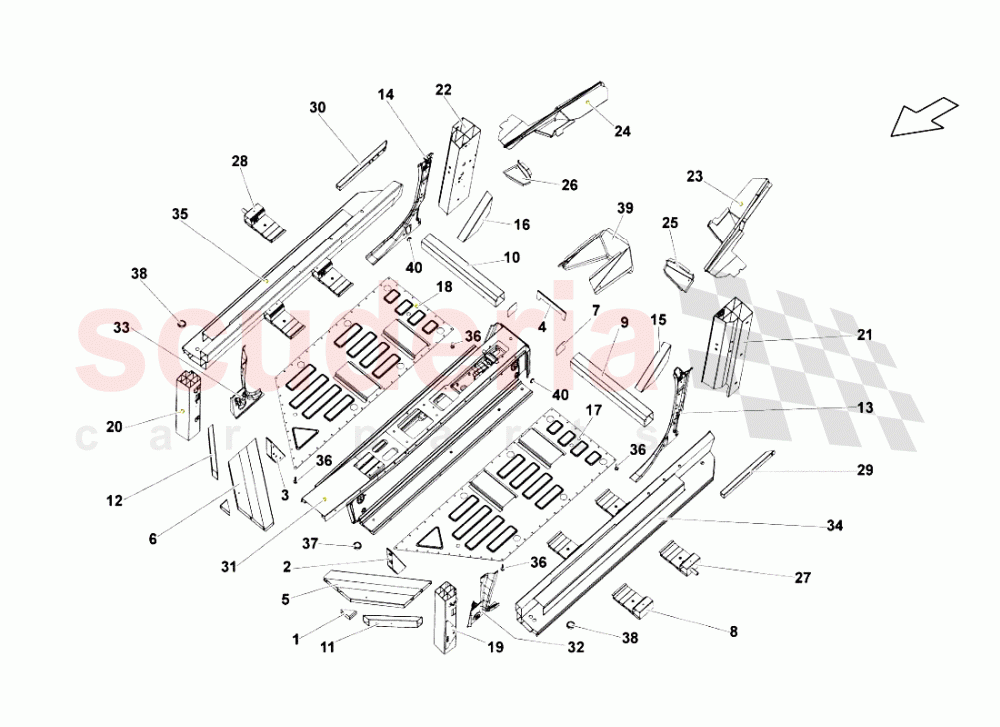

Lamborghini Gallardo LP550 Spyder - CENTER FRAME ELEMENTS 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400802451	SUPPORT	400802451 SUPPORT	$393.82	2
002	400802725	SUPPORT	400802725 SUPPORT	$1,147.87	1
003	400802726	SUPPORT	400802726 SUPPORT	$1,147.87	1
005	400803033A	SIDE MEMBER	400803033A SIDE MEMBER	$443.55	1
006	400803034A	SIDE MEMBER	400803034A SIDE MEMBER	$5,268.80	1
007	400803177	SHEET	400803177 SHEET	$84.42	2
008	400803243	BRACKET	400803243 BRACKET	$304.43	1
009	400803291A	CROSS MEMBER	400803291A CROSS MEMBER	$516.15	1
010	400803292A	CROSS MEMBER	400803292A CROSS MEMBER	$516.15	1
011	400805861	SIDE MEMBER	400805861 SIDE MEMBER	$1,807.79	1
011	407805861A	SIDE MEMBER	407805861A SIDE MEMBER	$365.61	1
012	407805862A	SIDE MEMBER	407805862A SIDE MEMBER	$369.64	1
012	400805862	SIDE MEMBER	400805862 SIDE MEMBER	$1,807.79	1
013	407809223	C A-PILLAR, INSIDE	407809223 C A-PILLAR, INSIDE	$755.38	1
013	400809223	C A-PILLAR, INSIDE	400809223 C A-PILLAR, INSIDE	$764.77 MSRP: ~~1,425.00~~ (46.3% off)	1
014	400809224	C A-PILLAR, INSIDE	400809224 C A-PILLAR, INSIDE	$1,720.43	1
014	407809224	C A-PILLAR, INSIDE	407809224 C A-PILLAR, INSIDE	$755.38	1
015	400809971	BRACKET	400809971 BRACKET	$256.72	1
016	400809972	BRACKET	400809972 BRACKET	$256.72	1
017	408803061	BOARD	408803061 BOARD	$987.91	1
018	408803062	BOARD	408803062 BOARD	$987.91	1
019	407809205	A A-PILLAR, INFERIOR	407809205 A A-PILLAR, INFERIOR	$598.11	1
020	407809206	A A-PILLAR, INFERIOR	407809206 A A-PILLAR, INFERIOR	$598.11	1
021	407809221A	B A-PILLAR, OUTSIDE	407809221A B A-PILLAR, OUTSIDE	$553.78	1
022	407809222A	B A-PILLAR, OUTSIDE	407809222A B A-PILLAR, OUTSIDE	$548.40	1
027	400803151F	BRACKET	400803151F BRACKET	$1,485.23	1
028	400803152F	BRACKET	400803152F BRACKET	$1,485.23	1
029	400809321A	BRACKET	400809321A BRACKET	$269.48	1
030	400809322A	BRACKET	400809322A BRACKET	$269.48	1
031	407802061A	FLOOR,CENTER	407802061A FLOOR,CENTER	$7,036.27	1
032	407802125	A A-PILLAR, INSIDE	407802125 A A-PILLAR, INSIDE	$596.78	1
033	407802126	A A-PILLAR, INSIDE	407802126 A A-PILLAR, INSIDE	$596.78	1
034	407802255G	SIDE MEMBER	407802255G SIDE MEMBER	$3,561.84	1
035	407802256G	SIDE MEMBER	407802256G SIDE MEMBER	$11,794.35	1
036	N90919302	SCREW M5X18	N90919302 SCREW M5X18	$0.77 MSRP: ~~7.27~~ (89.4% off)	54
038	4E0804297	PLUG D = 30	4E0804297 PLUG D = 30	$2.29 MSRP: ~~7.25~~ (68.4% off)	13
039	400802853A	SHEET	400802853A SHEET	$454.29	1
040	N10249701	PLUG D = 18	N10249701 PLUG D = 18	$0.62 MSRP: ~~7.35~~ (91.6% off)	5
