REAR BUMPERS of Lamborghini Lamborghini Gallardo LP550 Spyder

View All

Lamborghini Gallardo LP550 Spyder - REAR BUMPERS

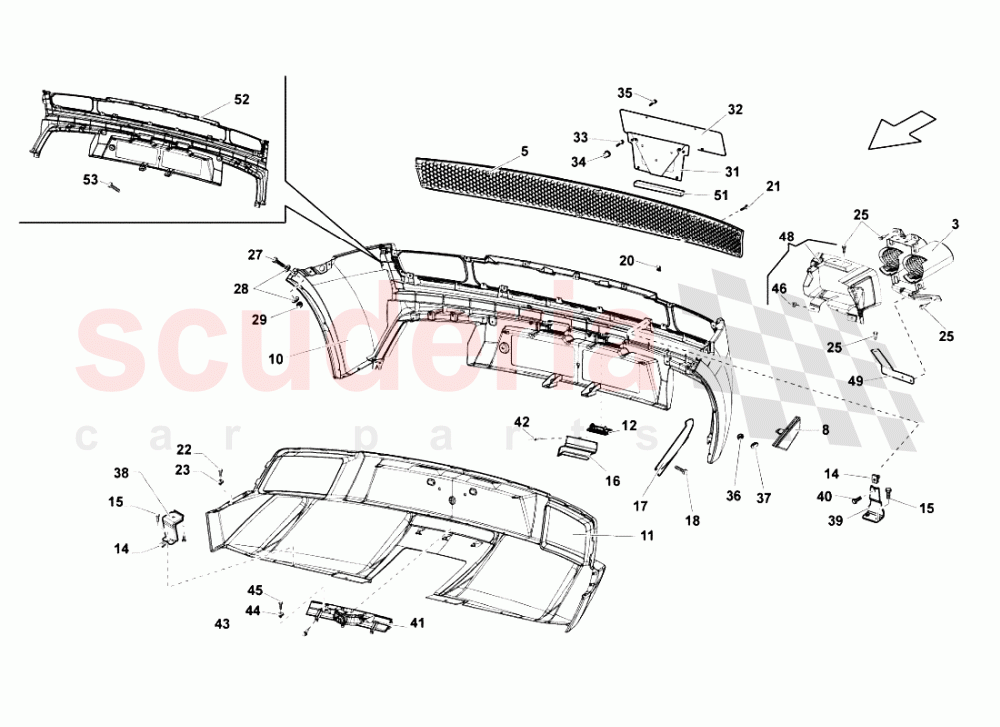

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
005	400807684A	GRID	400807684A GRID	-	1	Enquire
008	400945127B	REAR LEFT SIDE MARKER (VALID FOR A MARKET USA/CANADA)	400945127B REAR LEFT SIDE MARKER (VALID FOR A MARKET USA/CANADA) valid for USA/CDN	-	1	Enquire
008	400945128B	REAR RIGHT SIDE MARKER (VALID FOR A MARKET USA/CANADA)	400945128B REAR RIGHT SIDE MARKER (VALID FOR A MARKET USA/CANADA) valid for USA/CDN	-	1	Enquire
010	400807497C	REAR BUMPER ASSEMBLY	400807497C REAR BUMPER ASSEMBLY	-	1	Enquire
011	400807527C	COVERING	400807527C COVERING	-	1	Enquire
011	400807527E	COVERING (STYLE PACK)	400807527E COVERING (STYLE PACK)	-	1	Enquire
012	8N0943022A	RH License Plate Lamp	8N0943022A RH License Plate Lamp	-	1	Enquire
012	8N0943021A	LH License Plate Lamp	8N0943021A LH License Plate Lamp	-	1	Enquire
014	N90834301	CLIP NUT	N90834301 CLIP NUT	-	6	Enquire
015	N90807405	HEX SOCKET OVAL HEAD COLLARED	N90807405 HEX SOCKET OVAL HEAD COLLARED	-	10	Enquire
016	400943137A	PROTECTION	400943137A PROTECTION	-	2	Enquire
017	400807132C	RH BRACKET	400807132C RH BRACKET	-	1	Enquire
017	400807131C	LH BRACKET	400807131C LH BRACKET	-	1	Enquire
018	N90847903	Screw M6X15	N90847903 Screw M6X15	-	6	Enquire
020	N90356204	SPEED NUT	N90356204 SPEED NUT	-	11	Enquire
021	N10596302	SCREW M5X25.0	N10596302 SCREW M5X25.0	-	11	Enquire
022	N90648704	SCREW ST4.8X16	N90648704 SCREW ST4.8X16	-	21	Enquire
023	N90834301	CLIP NUT	N90834301 CLIP NUT	-	21	Enquire
025	N90898101	OVAL HEXAGON SOCKET HEAD BOLT	N90898101 OVAL HEXAGON SOCKET HEAD BOLT	-	16	Enquire
027	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	2	Enquire
028	N91115501	WASHER	N91115501 WASHER	-	4	Enquire
029	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
031	400827120	LICENSE PLATE HOLDER	400827120 LICENSE PLATE HOLDER	-	1	Enquire
032	400807287	LICENSE PLATE HOLDER (VALID FOR A MARKET CHINESE)	400807287 LICENSE PLATE HOLDER (VALID FOR A MARKET CHINESE)	-	1	Enquire
033	N10637302	OVAL HEXAGON SOCKET HEAD BOLT	N10637302 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
034	400807995	GROMMET	400807995 GROMMET	-	3	Enquire
035	WHT000757	SCREW	WHT000757 SCREW	-	2	Enquire
038	400807135	BRACKET	400807135 BRACKET	-	2	Enquire
039	400807125A	BRACKET	400807125A BRACKET	-	4	Enquire
040	N90648702	SCREW M4X16	N90648702 SCREW M4X16	-	4	Enquire
042	N90931101	POP RIVET	N90931101 POP RIVET	-	4	Enquire
043	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	3	Enquire
044	N91104501	CLIP	N91104501 CLIP	-	2	Enquire
045	N90807405	HEX SOCKET OVAL HEAD COLLARED	N90807405 HEX SOCKET OVAL HEAD COLLARED	-	2	Enquire
046	N10433701	SPEED NUT	N10433701 SPEED NUT	-	6	Enquire
048	400825720A	RH INSULATION	400825720A RH INSULATION	-	1	Enquire
048	400825719A	LH INSULATION	400825719A LH INSULATION	-	1	Enquire
049	400251347	LH BRACKET	400251347 LH BRACKET	-	1	Enquire
049	400251348	RH BRACKET	400251348 RH BRACKET	-	1	Enquire
052	400807311D	Bumper Structure Rear	400807311D Bumper Structure Rear	-	1	Enquire
