Find Your Part

View All

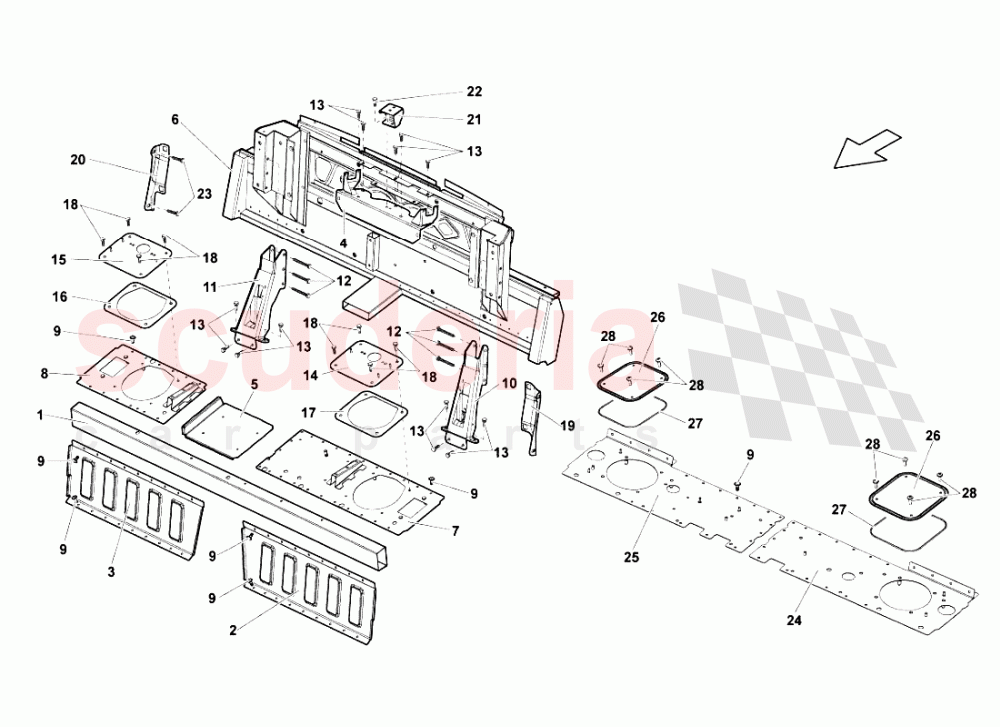

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	407803221A	CROSS MEMBER	407803221A CROSS MEMBER	$900.55	1
002	408801275A	BOARD	408801275A BOARD	$392.49	1
003	408801276A	BOARD	408801276A BOARD	$392.49	1
004	407803145	BRACKET	407803145 BRACKET	$109.28	1
006	407813467A	REAR PANEL	407813467A REAR PANEL	$4,280.89	1
009	N90919302	SCREW M5X18	N90919302 SCREW M5X18	$0.77 MSRP: ~~7.27~~ (89.4% off)	176
010	407803227A	SCREW M5X18 -	407803227A SCREW M5X18 -	$325.96	1
011	407803228A	SCREW M5X18 -	407803228A SCREW M5X18 -	$325.96	1
012	407813975	SCREW M8X75	407813975 SCREW M8X75	$0.13 MSRP: ~~7.38~~ (98.2% off)	6
013	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	$11.56	9
019	407803581	FIXING CORNER	407803581 FIXING CORNER	$176.09	1
020	407803582	FIXING CORNER	407803582 FIXING CORNER	$176.09	1
021	407827876	SUPPORT	407827876 SUPPORT	$29.58	1
022	N90693702	SCREW M5X20	N90693702 SCREW M5X20	$0.58 MSRP: ~~7.32~~ (92.1% off)	2
023	N10347804	HEXAGON SOCKET HEAD BOLT (COMBI)	N10347804 HEXAGON SOCKET HEAD BOLT (COMBI)	$1.68	4
024	407813503A	BOARD	407813503A BOARD	$420.70	1
025	407813504A	BOARD	407813504A BOARD	$438.19	1
026	420803961	COVER	420803961 COVER	$12.24	2
027	420803963	GASKET	420803963 GASKET	$6.11	2
028	N90780901	OVAL HEXAGON SOCKET HEAD BOLT	N90780901 OVAL HEXAGON SOCKET HEAD BOLT	$0.30 MSRP: ~~7.38~~ (95.9% off)	8
