DOORS 2 of Lamborghini Lamborghini Gallardo LP550 Spyder

View All

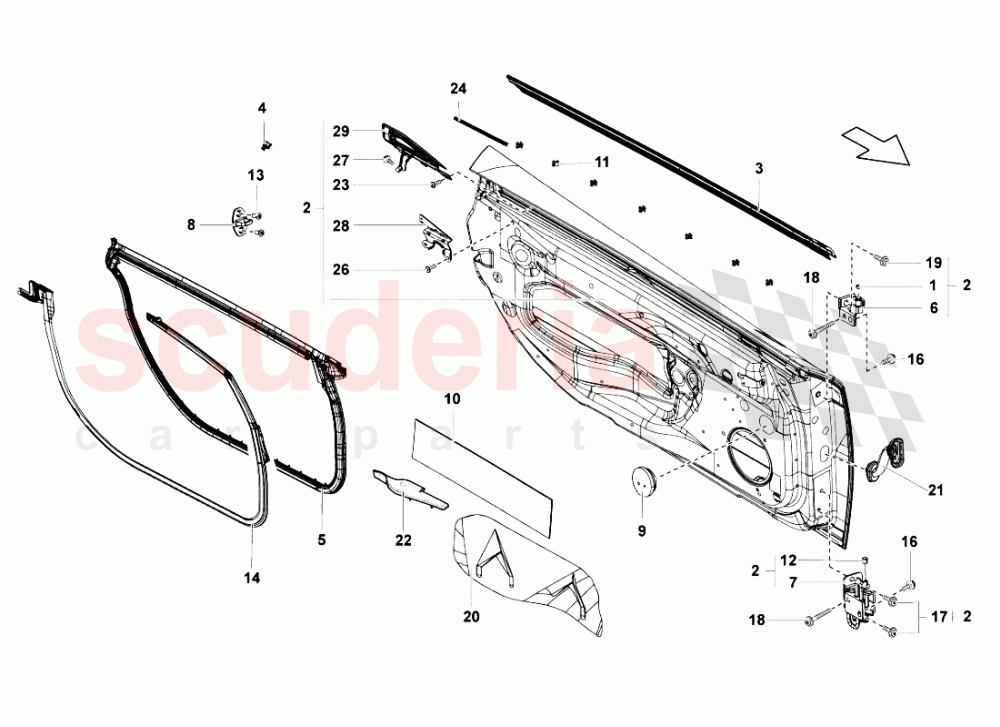

Lamborghini Gallardo LP550 Spyder - DOORS 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1H0837947	SCREW COVER	1H0837947 SCREW COVER	-	2	Enquire
002	407831022	DOOR, RH	407831022 DOOR, RH	-	1	Enquire
002	407831021	DOOR, LH	407831021 DOOR, LH	-	1	Enquire
003	407837478	GLASS WEATHERSTRIP, RH	407837478 GLASS WEATHERSTRIP, RH	-	1	Enquire
003	407837477	GLASS WEATHERSTRIP, LH	407837477 GLASS WEATHERSTRIP, LH	-	1	Enquire
004	400837498	COUPLING RING, RH	400837498 COUPLING RING, RH	-	1	Enquire
004	400837497	COUPLING RING, LH	400837497 COUPLING RING, LH	-	1	Enquire
005	407837911D	DOOR WEATHERSTRIP, OUTER LH -	407837911D DOOR WEATHERSTRIP, OUTER LH -	-	1	Enquire
005	407837912D	DOOR WEATHERSTRIP, OUTER RH -	407837912D DOOR WEATHERSTRIP, OUTER RH -	-	1	Enquire
006	4E0831401A	HINGE, UPPER LH	4E0831401A HINGE, UPPER LH	-	1	Enquire
006	4E0831402A	HINGE, UPPER RH	4E0831402A HINGE, UPPER RH	-	1	Enquire
007	4E0831411C	HINGE, LOWER LH	4E0831411C HINGE, LOWER LH	-	1	Enquire
007	4E0831412C	HINGE, LOWER RH	4E0831412C HINGE, LOWER RH	-	1	Enquire
008	8E0837033	LOCK STRIKER	8E0837033 LOCK STRIKER	-	2	Enquire
009	8E0971841E	BUSHING	8E0971841E BUSHING	-	2	Enquire
010	420837805	INSULATING COVERING	420837805 INSULATING COVERING	-	4	Enquire
011	8L3837199B	CLIP	8L3837199B CLIP	-	16	Enquire
012	8L3837947	SCREW COVER	8L3837947 SCREW COVER	-	2	Enquire
013	N0902941	SCREW ST4.2X19	N0902941 SCREW ST4.2X19	-	6	Enquire
014	407831707A	LH DOOR WEATHERSTRIP, INNER (FROM VIN 7LA04649 - WARNING UP TO VIN 7LA04648 USE 407831708A)	407831707A LH DOOR WEATHERSTRIP, INNER (FROM VIN 7LA04649 - WARNING UP TO VIN 7LA04648 USE 407831708A)	-	1	Enquire
014	407831708A	RH DOOR WEATHERSTRIP, INNER (FROM VIN 7LA04649 - WARNING UP TO VIN 7LA04648 USE 407831707A)	407831708A RH DOOR WEATHERSTRIP, INNER (FROM VIN 7LA04649 - WARNING UP TO VIN 7LA04648 USE 407831707A)	-	1	Enquire
016	WHT001237	HEX SOCKET HEAD COLLARED BOLT	WHT001237 HEX SOCKET HEAD COLLARED BOLT	-	4	Enquire
017	WHT001230	HEXAGON SOCKET HEAD BOLT	WHT001230 HEXAGON SOCKET HEAD BOLT	-	4	Enquire
018	N91060501	SCREW M8X130X80	N91060501 SCREW M8X130X80	-	4	Enquire
019	8H0831701	HEX SOCKET HEAD COLLARED BOLT	8H0831701 HEX SOCKET HEAD COLLARED BOLT	-	2	Enquire
020	400863980	RH INSULATION	400863980 RH INSULATION	-	1	Enquire
020	400863979	LH INSULATION	400863979 LH INSULATION	-	1	Enquire
021	8P3959845A	SHEATH	8P3959845A SHEATH	-	2	Enquire
022	400863052	RH COVER	400863052 RH COVER	-	1	Enquire
022	400863051	LH COVER	400863051 LH COVER	-	1	Enquire
023	407837173A	SCREW	407837173A SCREW	-	6	Enquire
024	407868382	GASKET	407868382 GASKET	-	2	Enquire
025	N90107607	WASHER	N90107607 WASHER	-	4	Enquire
026	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED	-	4	Enquire
027	N90807405	HEX SOCKET OVAL HEAD COLLARED	N90807405 HEX SOCKET OVAL HEAD COLLARED	-	2	Enquire
028	407831665	BRACKET LH -	407831665 BRACKET LH -	-	1	Enquire
028	407831666	BRACKET RH -	407831666 BRACKET RH -	-	1	Enquire
029	407837902	DOOR TRIANGLE RH -	407837902 DOOR TRIANGLE RH -	-	1	Enquire
029	407837901	DOOR TRIANGLE LH -	407837901 DOOR TRIANGLE LH -	-	1	Enquire
