HEAD TIMING SYSTEM of Lamborghini Lamborghini Gallardo LP550 Spyder

View All

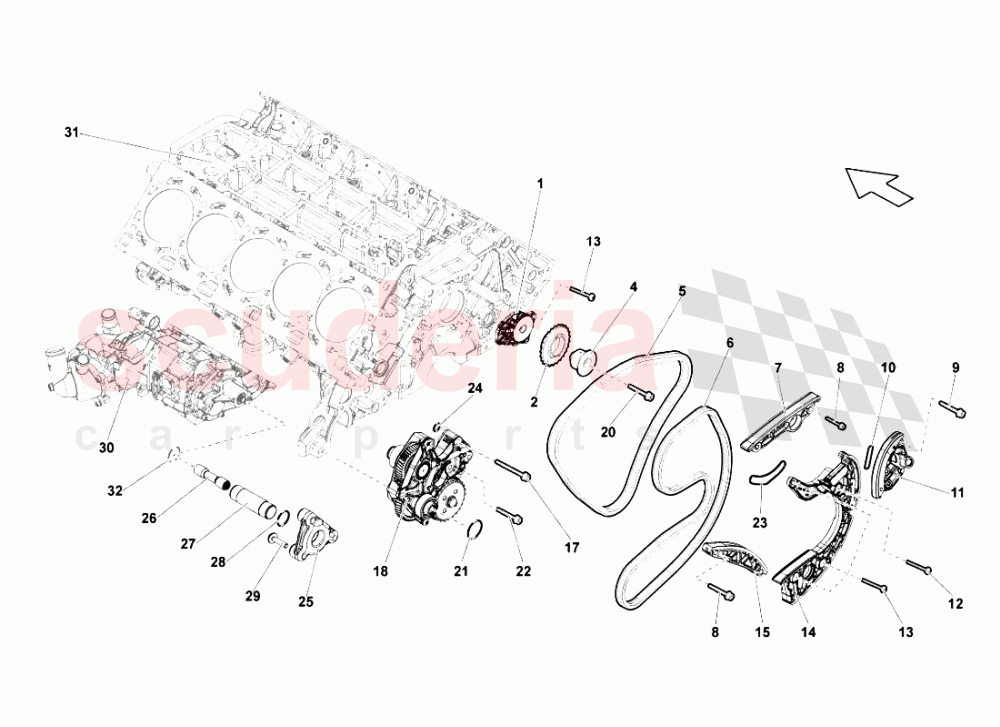

Lamborghini Gallardo LP550 Spyder - HEAD TIMING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	79103337G	SUPPORT	79103337G SUPPORT	$46.92	1
002	79109570AT	CHAIN SPROCKET	79109570AT CHAIN SPROCKET	$99.60	1
003	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.55	8
004	79109224E	BEARING PIN	79109224E BEARING PIN	$94.63	1
005	6E109465AM	CHAIN	6E109465AM CHAIN	$210.35	1
006	6E109465AQ	CHAIN	6E109465AQ CHAIN	$205.66	1
007	79109469AL	GUIDE RAIL IN STOCK	79109469AL GUIDE RAIL IN STOCK	$31.59	1
008	N91129001	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N91129001 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$5.19 MSRP: ~~7.04~~ (26.3% off)	4
009	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.55	3
010	79109139L	SEAL IN STOCK	79109139L SEAL IN STOCK	$15.84	1
011	79109507M	CHAIN TIGHTENER	79109507M CHAIN TIGHTENER	$299.06	1
012	N10554002	ROUND HD. SCREW	N10554002 ROUND HD. SCREW	$1.81 MSRP: ~~7.20~~ (74.9% off)	1
013	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.55	9
014	79109507AF	CHAIN TENSIONER IN STOCK	79109507AF CHAIN TENSIONER IN STOCK	$214.50	1
015	79109469AM	GUIDE RAIL IN STOCK	79109469AM GUIDE RAIL IN STOCK	$31.51	1
017	N91119601	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N91119601 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$4.52	5
018	7L109359T	SUPPORT	7L109359T SUPPORT	$1,157.27	1
020	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10660901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$6.86	1
021	WHT000417	O-Ring IN STOCK	WHT000417 O-Ring IN STOCK	$2.42	1
022	N91046302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91046302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	$1.96 MSRP: ~~7.14~~ (72.5% off)	1
023	79109139M	SEAL IN STOCK	79109139M SEAL IN STOCK	$10.71	1
024	N90740801	O-RING IN STOCK	N90740801 O-RING IN STOCK	$3.77 MSRP: ~~7.28~~ (48.2% off)	1
025	7L103707B	COVER ARRIVING SOON	7L103707B COVER ARRIVING SOON	$83.02	1
026	7L115138H	COUPLING	7L115138H COUPLING	$178.78	1
027	7L115467B	PIPE IN STOCK	7L115467B PIPE IN STOCK	$26.54	1
028	WHT008700	O-RING IN STOCK	WHT008700 O-RING IN STOCK	$2.99	1
029	N10704501	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10704501 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.08 MSRP: ~~7.25~~ (85.1% off)	3
