Lamborghini Gallardo LP550 Spyder - ENGINE HOOD SUPPORT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

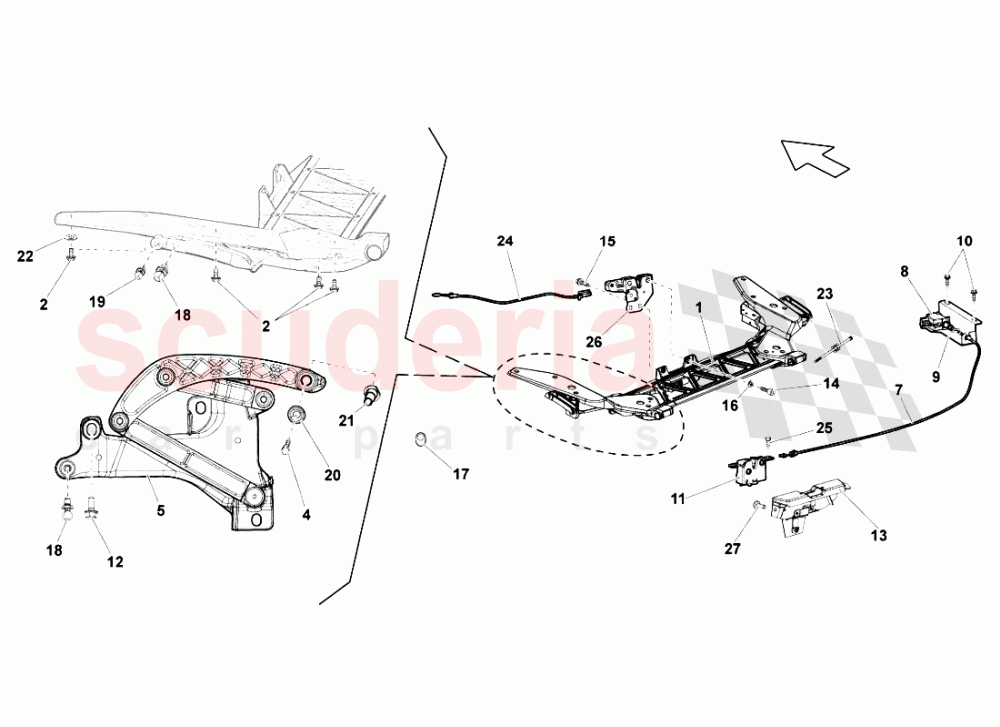

ENGINE HOOD SUPPORT of Lamborghini Lamborghini Gallardo LP550 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 407827201A
ENGINE HOOD SUPPORT (NO INCLUDES REF. 15) 		- 1 Enquire
002 N90989102
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		- 10 Enquire
004 WHT003223
SCREW M8X35 		- 2 Enquire
005 407827302D
SUPPORT RH 		- 1 Enquire
005 407827301D
SUPPORT LH 		- 1 Enquire
007 407827531C
OPENING TIE ROD 		- 1 Enquire
008 407827469A
ACTUATOR 		- 1 Enquire
009 407827909D
BRACKET 		- 1 Enquire
010 1Z0860505C
SCREW 		- 2 Enquire
011 4E0823509H
HOOD LOCK 		- 1 Enquire
012 N91000203
OVAL HEXAGON SOCKET HEAD BOLT 		- 6 Enquire
013 407133599E
BRACKET 		- 1 Enquire
014 N90847903
Screw M6X15 		- 2 Enquire
015 N90847903
Screw M6X15 		- 2 Enquire
016 N90536602
WASHER 		- 2 Enquire
017 407827527
SPACER 		- 6 Enquire
018 N90938001
BALL PIN 		- 4 Enquire
019 895827439D
BALL STUD 		- 4 Enquire
020 407827549
WASHER 		- 6 Enquire
021 407827850
SCREW 		- 2 Enquire
022 N90477302
WASHER 		- 10 Enquire
023 N10659801
CABLE TIE WITH TERMINAL SOCKET 		- 2 Enquire
024 407827536
MANUAL OPENING CABLE 		- 1 Enquire
025 407827531C
OPENING TIE ROD 		- 1 Enquire
026 8E0823509D
HOOD LOCK 		- 1 Enquire
027 N90365912
OVAL HEXAGON SOCKET HEAD BOLT 		- 4 Enquire
