WINDOWS of Lamborghini Lamborghini Gallardo LP550 Spyder

View All

Lamborghini Gallardo LP550 Spyder - WINDOWS

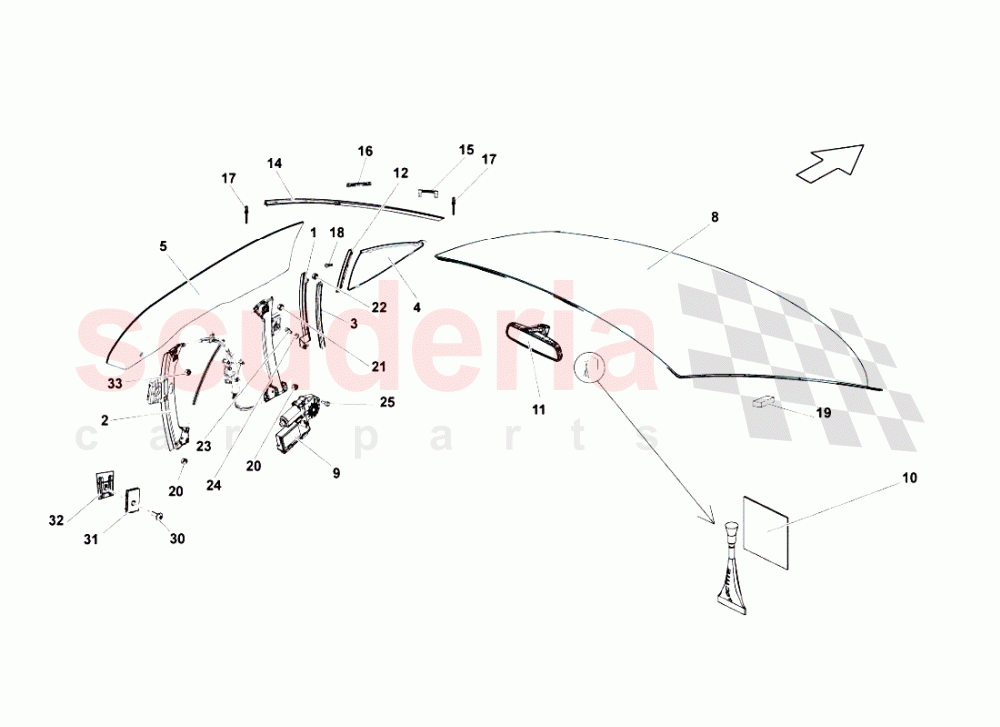

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400831619B	LH GUIDE	400831619B LH GUIDE	$587.37	2
001	400831620B	RH GUIDE	400831620B RH GUIDE	$587.37	2
002	400837462	RIGHT DOOR POWER WINDOW ASSEMBLY IN STOCK	400837462 RIGHT DOOR POWER WINDOW ASSEMBLY IN STOCK	$969.10	1
002	400837461	LH POWER WINDOW ASSEMBLY IN STOCK	400837461 LH POWER WINDOW ASSEMBLY IN STOCK	$1,000.97	1
003	400837934	RH GASKET	400837934 RH GASKET	$41.13	1
003	400837933	LH GASKET	400837933 LH GASKET	$41.13	1
004	400845115A	FIXED FRONT LEFT WINDOW GLASS	400845115A FIXED FRONT LEFT WINDOW GLASS	$752.69	1
004	400845116A	FIXED FRONT RIGHT WINDOW GLASS	400845116A FIXED FRONT RIGHT WINDOW GLASS	$752.69	1
005	407845202	RIGHT DOOR WINDOW	407845202 RIGHT DOOR WINDOW	$2,177.41	1
005	407845201	LEFT DOOR WINDOW	407845201 LEFT DOOR WINDOW	$2,177.41	1
008	400845099C	WINDSCREEN IN STOCK	400845099C WINDSCREEN IN STOCK	$5,255.36	1
009	401959802D	RH MOTOR (FOR GSX CARS)	401959802D RH MOTOR (FOR GSX CARS)	$973.13	1
009	401959801D	LH MOTOR (FOR GSX CARS)	401959801D LH MOTOR (FOR GSX CARS)	$927.43	1
011	8D0857511A	REAR VIEW MIRROR	8D0857511A REAR VIEW MIRROR	$131.90	1
012	400837440	RH GUIDE	400837440 RH GUIDE	$377.70	1
012	400837439	LH GUIDE	400837439 LH GUIDE	$377.70	1
014	40785370100	REAR VIEW MIRROR -	40785370100 REAR VIEW MIRROR -	-	1	Enquire
014	407853702	RH GUIDE	407853702 RH GUIDE	$591.40	1
015	400853929A	CLIP	400853929A CLIP	$55.85	2
016	8N8853707	CLIP IN STOCK	8N8853707 CLIP IN STOCK	$2.42 MSRP: ~~7.10~~ (65.9% off)	4
017	N91019701	POP RIVET IN STOCK	N91019701 POP RIVET IN STOCK	$0.82 MSRP: ~~7.28~~ (88.7% off)	18
018	N10570801	SCREW	N10570801 SCREW	$0.36 MSRP: ~~7.35~~ (95.1% off)	8
019	400845235	SPACER IN STOCK	400845235 SPACER IN STOCK	$0.67 MSRP: ~~7.29~~ (90.8% off)	12
020	N02300212	NUT M6	N02300212 NUT M6	$0.30 MSRP: ~~7.36~~ (95.9% off)	8
021	WHT000127	HEXAGON NUT	WHT000127 HEXAGON NUT	$17.13	2
022	WHT000760	NUT M5	WHT000760 NUT M5	$0.13	2
023	WHT001190	ROUND HD. SCREW IN STOCK	WHT001190 ROUND HD. SCREW IN STOCK	$0.53	2
024	WHT000778	WASHER IN STOCK	WHT000778 WASHER IN STOCK	$0.64	2
025	8Z0837691C	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	8Z0837691C HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	6
030	WHT001418A	SCREW M8X20	WHT001418A SCREW M8X20	$2.15 MSRP: ~~7.13~~ (69.8% off)	2
031	8H0845233	BRACKET	8H0845233 BRACKET	$5.51	2
032	8H0845481	BRACKET	8H0845481 BRACKET	$22.92	2
033	N90402503	NUT M6 IN STOCK	N90402503 NUT M6 IN STOCK	$1.89 MSRP: ~~7.29~~ (74.1% off)	2
