Lamborghini Gallardo LP550 Coupe - Lights 1

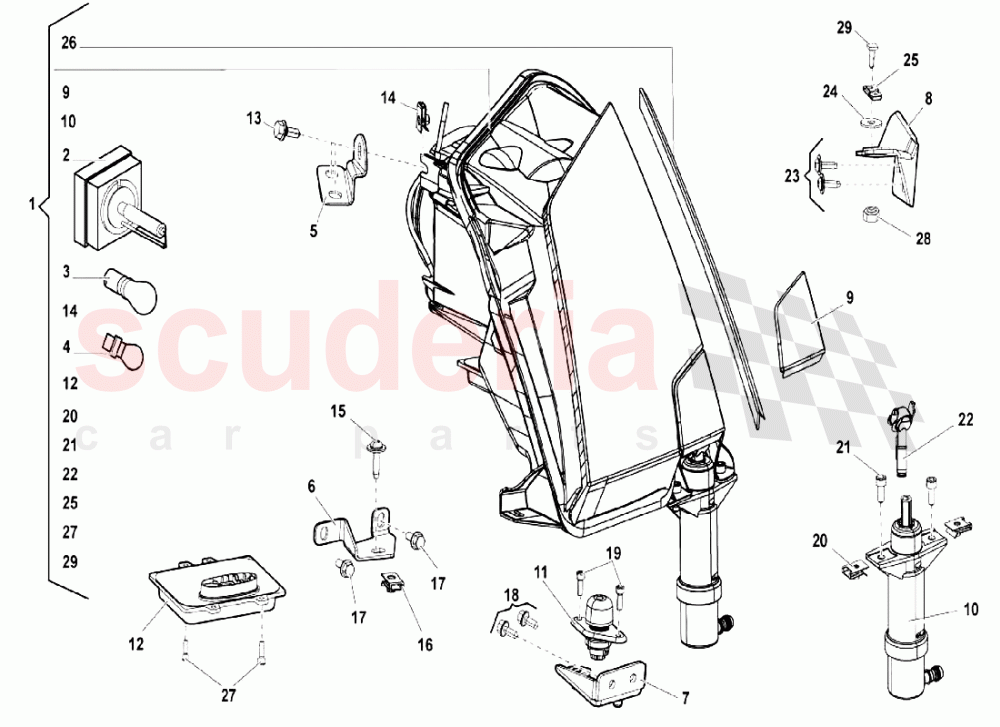

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart

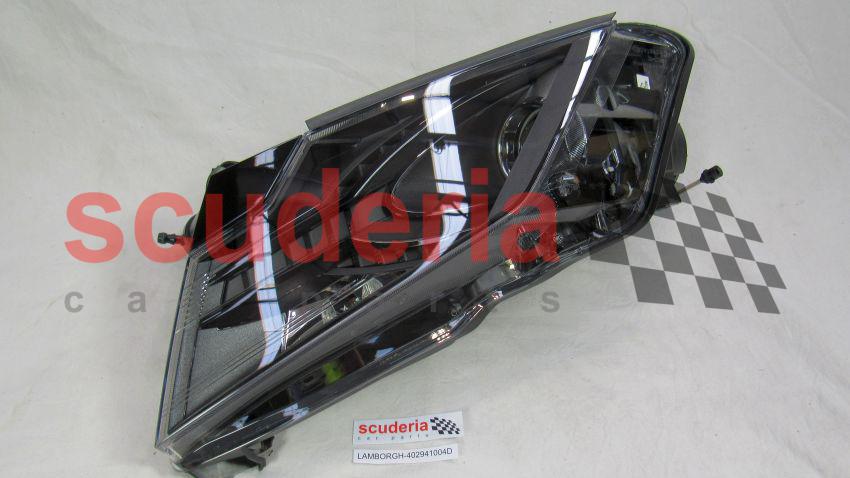

001	402941004D	Gas Discharge Headlight (right)	402941004D Gas Discharge Headlight (right)	-	1	Enquire
002	N10566103	BULB DIS-12V35W	N10566103 BULB DIS-12V35W	-	1	Enquire
003	N10256404	BULB PY21W-12V21W	N10256404 BULB PY21W-12V21W	-	2	Enquire
005	400941613A	LH Bracket	400941613A LH Bracket	-	1	Enquire
005	400941614A	RH Bracket	400941614A RH Bracket	-	1	Enquire
006	400941122B	RH Bracket	400941122B RH Bracket	-	1	Enquire
006	400941121B	LH Bracket	400941121B LH Bracket	-	1	Enquire
007	400941463	LH BRACKET	400941463 LH BRACKET	-	1	Enquire
007	400941464	RH BRACKET	400941464 RH BRACKET	-	1	Enquire
008	400941454A	RH BRACKET	400941454A RH BRACKET	-	1	Enquire
008	400941455A	LH BRACKET	400941455A LH BRACKET	-	1	Enquire
009	400955276B	RH Cover	400955276B RH Cover	-	1	Enquire
009	400955275B	LH Cover	400955275B LH Cover	-	1	Enquire
010	400955101A	Headlight Washer	400955101A Headlight Washer	-	2	Enquire
011	8L0827249	Adjusting Sleeve	8L0827249 Adjusting Sleeve	-	2	Enquire
012	400941651	CONTROL UNIT	400941651 CONTROL UNIT	-	2	Enquire
013	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT	-	6	Enquire
014	N91195701	SPEED NUT	N91195701 SPEED NUT	-	2	Enquire
016	N91195701	SPEED NUT	N91195701 SPEED NUT	-	2	Enquire
017	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT	-	4	Enquire
018	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT	-	4	Enquire
019	N10662102	Screw M4X12	N10662102 Screw M4X12	-	4	Enquire
020	400898256A	CLIP	400898256A CLIP	-	4	Enquire
021	400898400	SCREW M6X16	400898400 SCREW M6X16	-	4	Enquire
022	400955965	LH SPRAYING JET	400955965 LH SPRAYING JET	-	1	Enquire
022	400955966	RIGHT SPRAYING JET	400955966 RIGHT SPRAYING JET	-	1	Enquire
024	N01152527	WASHER	N01152527 WASHER	-	2	Enquire
025	400898256	CLIP	400898256 CLIP	-	2	Enquire
026	400898539	LH GASKET	400898539 LH GASKET	-	1	Enquire
026	400898540	RH GASKET	400898540 RH GASKET	-	1	Enquire
027	400898400A	SCREW M3X12	400898400A SCREW M3X12	-	4	Enquire
028	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
029	400898400B	SCREW M6X21	400898400B SCREW M6X21	-	4	Enquire
