Rear Hood And Spoiler - Rear Lid 2 of Lamborghini Lamborghini Gallardo LP550 Coupe

View All

Lamborghini Gallardo LP550 Coupe - Rear Hood And Spoiler - Rear Lid 2

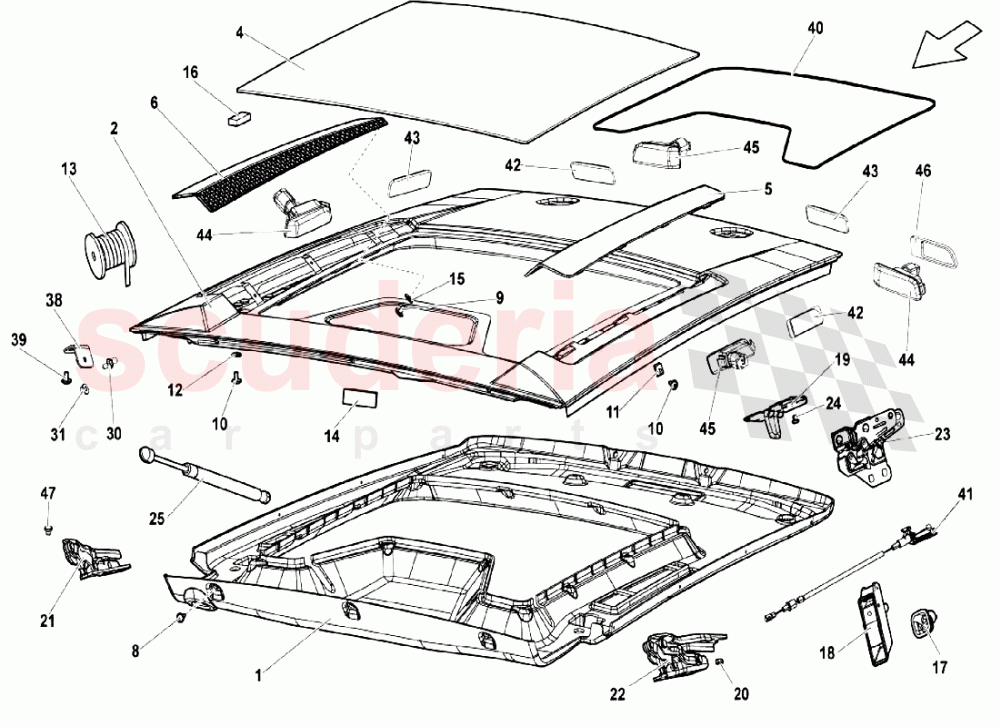

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	408827023F	TRANSPARENT ENGINE HOOD (TRANSPARENT ENGINE HOOD)	408827023F TRANSPARENT ENGINE HOOD (TRANSPARENT ENGINE HOOD)	-	1	Enquire
004	408827631A	ENGINE HOOD GLASS (REAR HOOD GLASS)	408827631A ENGINE HOOD GLASS (REAR HOOD GLASS)	-	1	Enquire
005	408827949	OUTLET GRID (FOR CARS WITH TRANSPARENT ENGINE HOOD)	408827949 OUTLET GRID (FOR CARS WITH TRANSPARENT ENGINE HOOD)	-	1	Enquire
006	408827950	OUTLET GRID (FOR CARS WITH TRANSPARENT ENGINE HOOD)	408827950 OUTLET GRID (FOR CARS WITH TRANSPARENT ENGINE HOOD)	-	1	Enquire
009	N91068201	HEXAGON SOCKET FLAT HEAD BOLT	N91068201 HEXAGON SOCKET FLAT HEAD BOLT	-	6	Enquire
015	WHT000778	WASHER	WHT000778 WASHER	-	6	Enquire
016	400845235A	DISTANCE PIECE	400845235A DISTANCE PIECE	-	4	Enquire
025	400827552A	Rear Tailgate Gas Strut	400827552A Rear Tailgate Gas Strut	-	1	Enquire
030	895827439D	BALL STUD	895827439D BALL STUD	-	1	Enquire
031	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	-	1	Enquire
031	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	-	1	Enquire
038	400827815	BRACKET	400827815 BRACKET	-	1	Enquire
039	N90737105	SCREW M6X12	N90737105 SCREW M6X12	-	2	Enquire
040	63705504	GASKET (QTY IN METERS)	63705504 GASKET (QTY IN METERS)	-	3	Enquire
042	400947159	LH PLUG	400947159 LH PLUG	-	1	Enquire
043	400947160	RH PLUG	400947160 RH PLUG	-	1	Enquire
044	420947237	LH INNER LAMP (ADDITIONAL LIGHTS)	420947237 LH INNER LAMP (ADDITIONAL LIGHTS)	-	2	Enquire
045	420947238	RH INNER LAMP (ADDITIONAL LIGHTS)	420947238 RH INNER LAMP (ADDITIONAL LIGHTS)	-	2	Enquire
